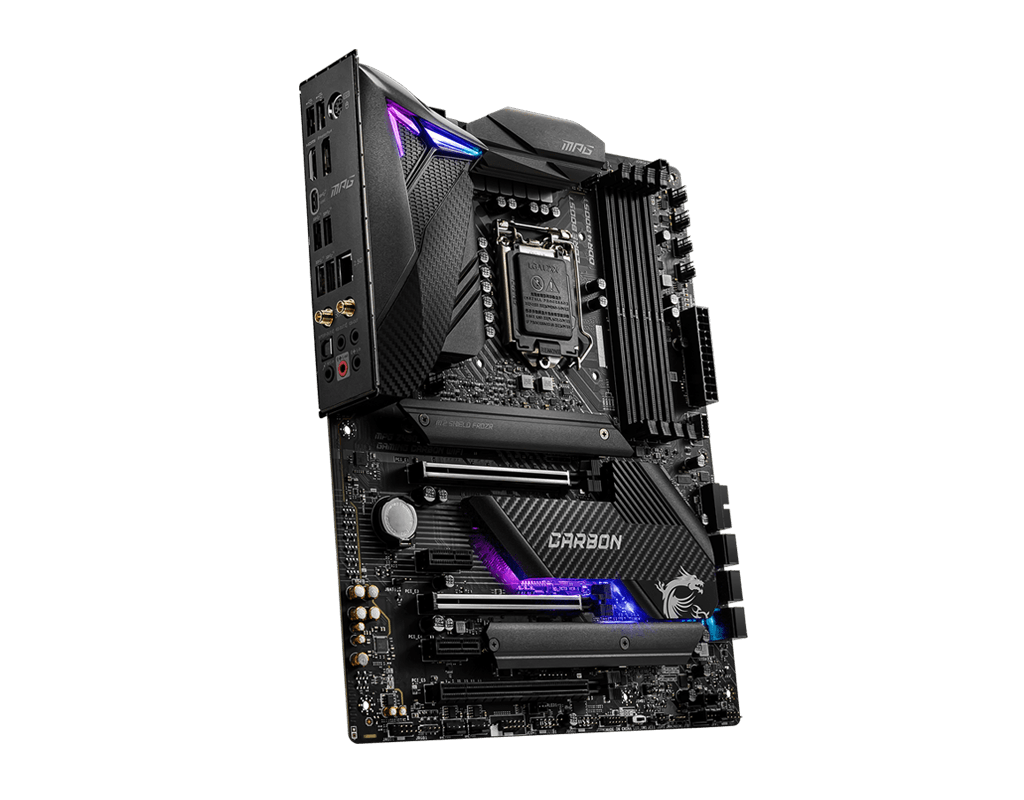

Дънна платка MSI MPG Z490 GAMING CARBON WIFI, Z490, LGA1200, DDR4, PCI-E 3.0, (DisplayPort&HDMI), (CFX&SLI), 3x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen2x2 Type C, Wi-Fi, Bluetooth, ATX

MPG Z490 GAMING CARBON WIFI

• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket

• Supports DDR4 Memory, up to 4800(OC) MHz

• Ready 4 the Future: Support Lightning Gen 4 Solution for the future

• Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost

• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.

• M.2 Shield Frozr: Both M.2 slots with Shield Frozr to built for high performance system and non-stop gaming experience

• Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C

• AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience

• 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

SPECIFICATIONS

PROCESSOR
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket

Please go to intel.com for compatibility information.Onboard graphics output are disabled when using the F SKU processors.

CHIPSET
Intel® Z490 Chipset

MEMORY
4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/2666/2933 MHz1
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOTS
3x PCIe 3.0 x16 slots*, support x16/ x0/ x4 or x8/ x8/ x4 mode
2x PCIe 3.0 x1 slots

ONBOARD GRAPHICS
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
Maximum shared memory is 1GB

MULTI-GPU
Supports 2-Way NVIDIA® SLI™ Technology
Supports 3-Way AMD® CrossFire™ Technology

STORAGE
Intel® Z490 Chipset
6x SATA 6Gb/s ports 1/ 2
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready
Supports Intel® Sma

RAID
Intel® Z490 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB
Intel® Z490 Chipset
5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector)
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia® ASM3241 Chipset
1x USB 3.2 Gen 2x2 20Gbps port on the back panel

AUDIO
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1x Realtek® RTL8125B 2.5Gbps LAN controller

WIFI & BLUETOOTH
Intel® AX201
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
Supports Bluetooth® 5.1 , FIPS, FISMA
The Wireless module is pre-install in the M2 (Key-E) slot
Only support windows 10 64-bit

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector
1x Serial port connector
1xTPM module connector
1x TBT connector*
1x RTD3 connector
1x Clear CMOS jumper

BACK PANEL PORTS
PS/2 Combo Port
DisplayPort
USB 3.2 Gen 2 10Gbps (Type-A)
LAN Port
HD Audio Connectors
USB 2.0
HDMI Port
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
Wi-Fi / Bluetooth
Optical S/PDIF OUT

DIMENSIONS
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING
9 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
