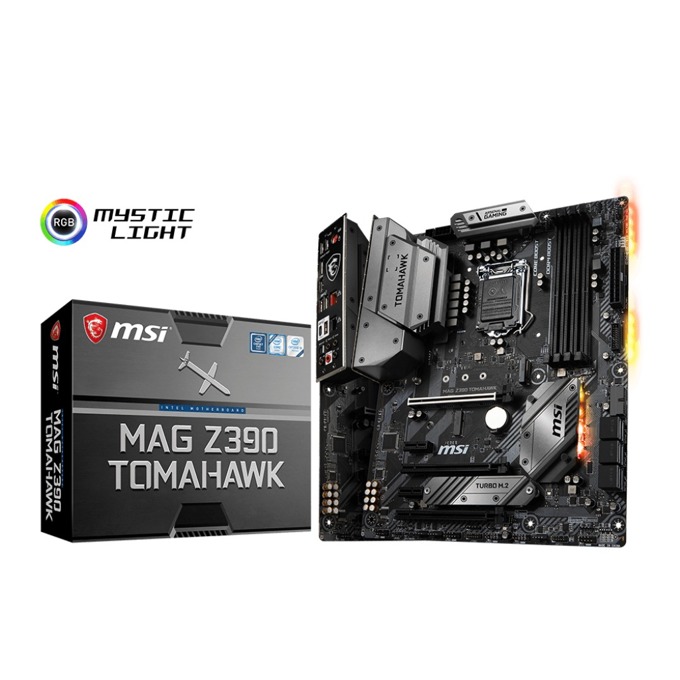

Дънна платка MSI MPG Z390 TOMAHAWK, Z390, LGA1151, DDR4, PCI-Е (DP&HDMI)(CF), 6x SATA 6Gb/s, 2x M.2 slot, 1x USB 3.1 (Gen 2, Type-C), ATX, RGB подсветка

PROCESSOR
Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

CHIPSET
Intel® Z390 Chipset

MEMORY
4 x DDR4 memory slots, support up to 64GB
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

SLOTS
3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
2 x PCIe 3.0 x1 slots
1 x M.2 slot (Key E) for an Intel® CNVi wireless module only

ONBOARD GRAPHICS
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

MULTI-GPU
Supports 2-Way AMD® CrossFire™ Technology

STORAGE
Intel® Z390 Chipset
6x SATA 6Gb/s ports*1
2x M.2 slots (Key M)*1
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready
M.2 slots and SATA ports share the bandwidth.

RAID
Intel® Z390 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB
Intel® Z390 Chipset
4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)
4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1 x Intel® I219-V Gigabit LAN controller
1 x Intel® I211-AT Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Serial port connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector

BACK PANEL PORTS
PS/2 Combo Port
LAN Port
HD Audio Connectors
USB 2.0 Port
DisplayPort
HDMI Port
USB 3.1 Gen2 Type A
USB 3.1 Gen2 Type A+C
Optical S/PDIF OUT
MSI z390 TOMAHAWK back panel ports

DIMENSIONS
9.6 in. x 12 in. (24.3 cm x 30.4 cm)
ATX Form Factor

MOUNTING
9 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
