Дънна платка MSI MPG B560I GAMING EDGE WIFI, B560, LGA1200, DDR4, PCI-E 4.0 (DP/HDMI), 4x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen 1 Type C, Wi-Fi 6E, Bluetooth, Mini-ITX

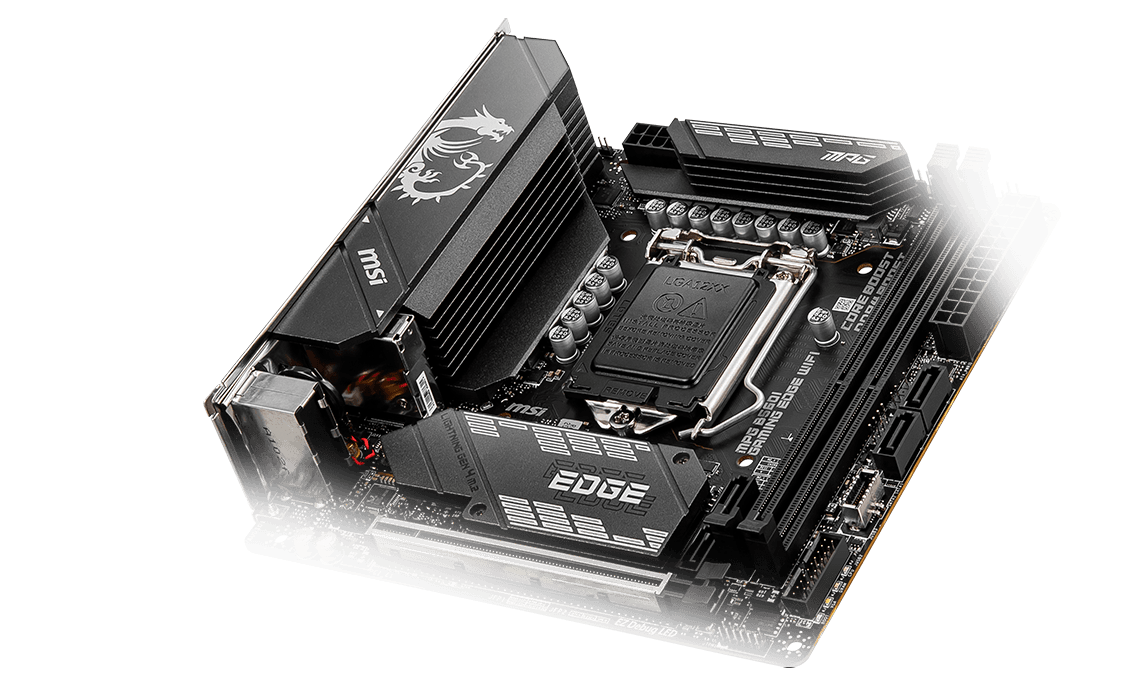

MSI MPG B560I GAMING EDGE WIFI

• Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5200(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
• Enhanced Power Design: 6+2+1 direct power design, 8-pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• High Quality PCB: 8-layer PCB made by 2oz thickened copper material
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation





THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.



A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.







Specifications:

Processor

• Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel ® Core™ Processors, Pentium® Gold and Celeron® Processors
• Processor socket LGA1200

Chipset

Intel® B560 Chipset

Memory

• 2x DDR4 memory slots, support up to 64GB
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU [by JEDEC & POR]
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU [by JEDEC & POR]
• Max frequency:
  • 1DPC 1R Max speed up to 5200 MHz
  • 1DPC 2R Max speed up to 4700+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots

• 1x PCIe x16 slot
  • Support up to PCIe 4.0 for 11th Gen Intel® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel® CPU

Onboard Graphics

• 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
• 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

Storage

• 4x SATA 6Gb/s ports [from B560 chipset]
• 2x M.2 slots [from B560 chipset]
• 2x M.2 slots [Key M]
  • M2 1 slot
    • Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU [From CPU]
    • Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU [From B560 chipset]
    • Supports 2280 storage devices
  • M2 2 slot [from B560 chipset]
    • Supports PCIe 3.0 x4 only
    • Supports 2280 storage devices
    • Intel® Optane™ Memory Ready
• Supports Intel® Smart Response Technology for Intel® Core ™ processors

1. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B560 Chipset

• 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port on the back panel]
• 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C port and 2 Type-A ports are available through the internal USB 3.2 Gen 1 5Gbps connectors]
• 6x USB 2.0 ports [4 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]

Audio

Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek® RTL8125B 2.5Gbps LAN controller

Wireless LAN & Bluetooth

Intel® Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 [Key-E] slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* [160MHz] up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.2 FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x M.2 slots [M-Key]
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports]
• 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Clear CMOS jumper

LED Feature

• 4x EZ Debug LED
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector

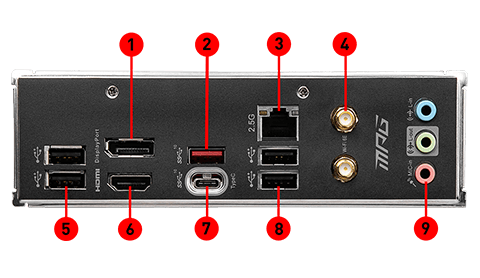

Back panel ports

1. DisplayPort
2. USB 3.2 Gen 2 10Gbps Type-A
3. 2.5G LAN
4. Wi-Fi/Bluetooth
5. USB 2.0
6. HDMI™
7. USB 3.2 Gen 2 10Gbps Type-C
8. USB 2.0
9. Audio Connectors

Dimensions

• Mini-ITX Form Factor
• 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]

Mounting

4 mounting holes

Operating System

• Support for Windows® 10 64-bit
