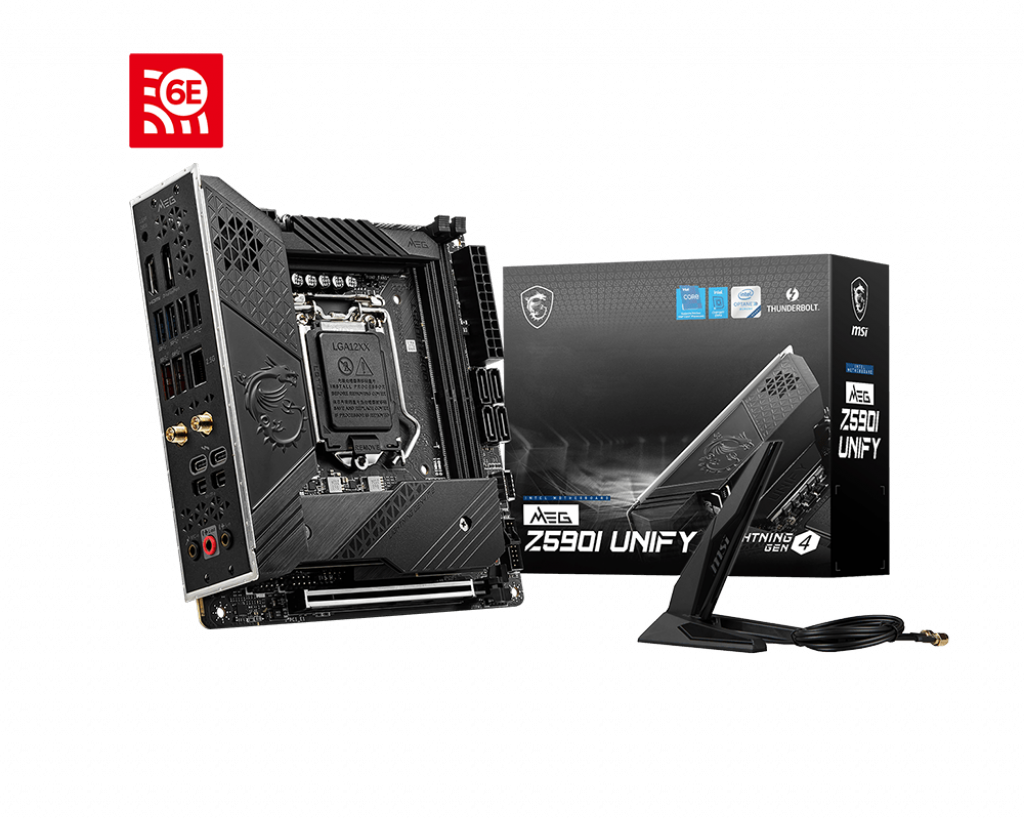

MEG Z590I UNIFY
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5600(OC) MHz
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
- Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Twin M.2 Connectors : Onboard dual M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution.
- 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specifications:
PROCESSOR
- Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors 1
- Processor socket LGA1200
- Please go to intel.com for compatibility information.
CHIPSET
Intel® Z590 Chipset
MEMORY
- 2x DDR4 memory slots, support up to 64GB 1
- Supports 1R 2133/2666/2933 MHz for 10th Gen Intel®CPU (by JEDEC & POR)1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel®CPU (by JEDEC & POR)1
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5600 MHz
- 1DPC 2R Max speed up to 4800+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile [XMP]
- Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOTS
- 1x PCIe x16 slot
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 11th Gen Intel® CPU
ONBOARD GRAPHICS
- 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/2
- 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
THUNDERBOLT™ 4
- Intel® JHL8540Thunderbolt™ 4 Controller
- 2x Thunderbolt™ 4 (USB-C) ports on the back panel
- Support up to 40Gbps transfer rate with Thunderbolt devices
- Support up to 20Gbps transfer rate with USB4 devices
- Support up to 10Gbps transfer rate with USB 3.2 devices
- Support up to 5V/3A ,15W power charging
- Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
- Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)/li>
STORAGE
- 4x SATA 6Gb/s ports (from Z590 chipset)
- 2x M.2 slots (Key M)
- M2_1 slot
- Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
- Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From Z590 chipset)
- Supports 2280 storage devices
- M2_2 slot (from Z590 chipset)
- Supports PCIe 3.0 x4 only
- Supports 2280 storage devices
- Intel® Optane™ Memory Ready1
- M2_1 slot
- Supports Intel® Smart Response Technology for Intel Core™ processors
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
- Intel® Z590 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
- Intel® Z590 Chipset
- 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
- 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
AUDIO
Realtek® ALC1220P Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Inte® I225-V 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH
Intel®Wi-Fi 6E AX210
- The Wireless module is pre-installed in the M.2 [Key-E] slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.22, FIPS, FISMA
- Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
- Bluetooth 5.2 will be ready in WIN10 21H1.
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x M.2 slots [M-Key]
- 1x USB 3.2 Gen2 10Gbps Type-C port
- 1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]
- 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 3-pin RAINBOW LED connectors
- 1xTPM module connector
BACK PANEL CONNECTORS
- DisplayPort
- USB 2.0
- 2.5G LAN
- Wi-Fi /Bluetooth
- Thunderbolt 4 40Gbps (Type-C)
- HD Audio Connectors
- Clear CMOS Button
- HDMI
- USB 3.2 Gen1 5Gbps (Type-A)
- USB 3.2 Gen2 10Gbps (Type-A)
- Mini DisplayPort Input (for Thunderbolt passthrough)
DIMENSIONS
- 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
- Mini-ITX Form Factor
MOUNTING
4 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
Процесор сокет: | LGA 1200 |
---|---|
Чипсет: | Z590 |
Поддържана памет: | DDR4 |
Брой слотове за RAM памет: | 2 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Да |
Безжични мрежи: | Wi-Fi 6 (802.11ax) |
Bluetooth: | Да |
Видео слот: | PCI-E |
Multi-Graphics технология: | Няма |
Видео изход: | DP HDMI |
Форм фактор: | Mini-ITX |
