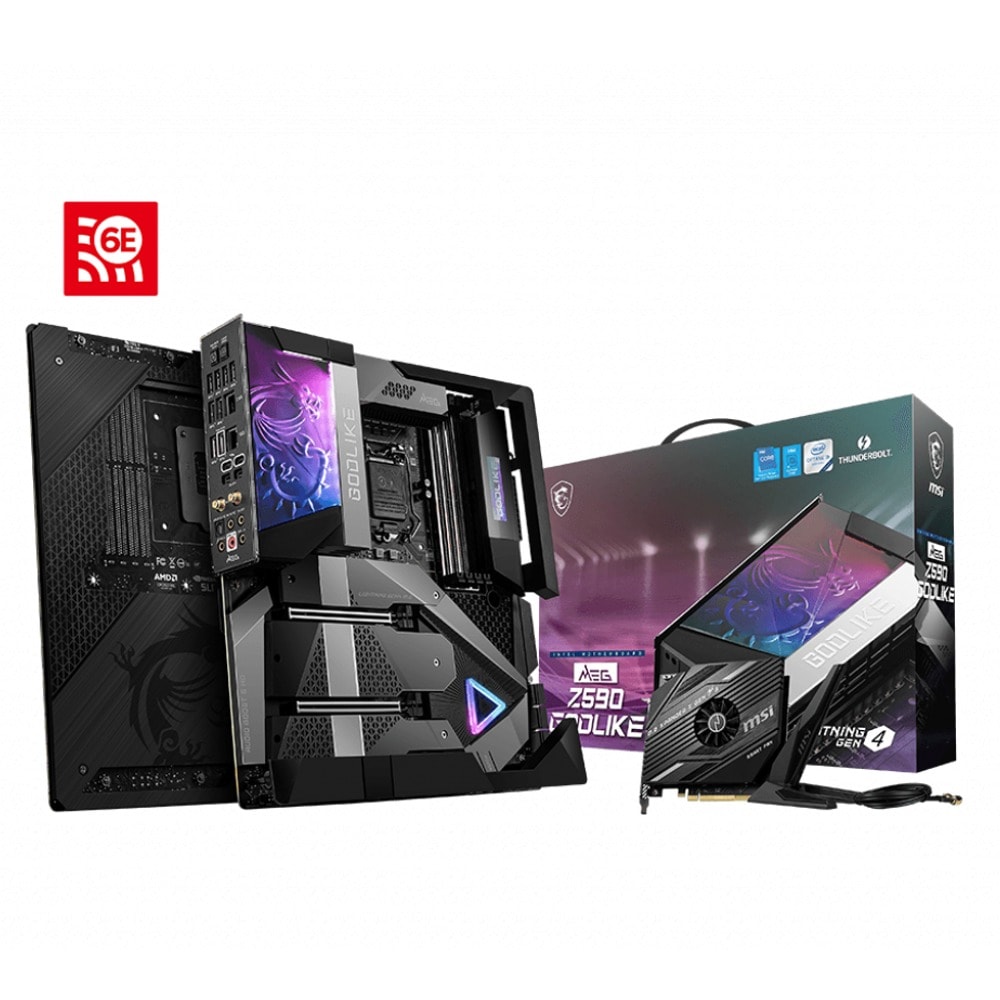

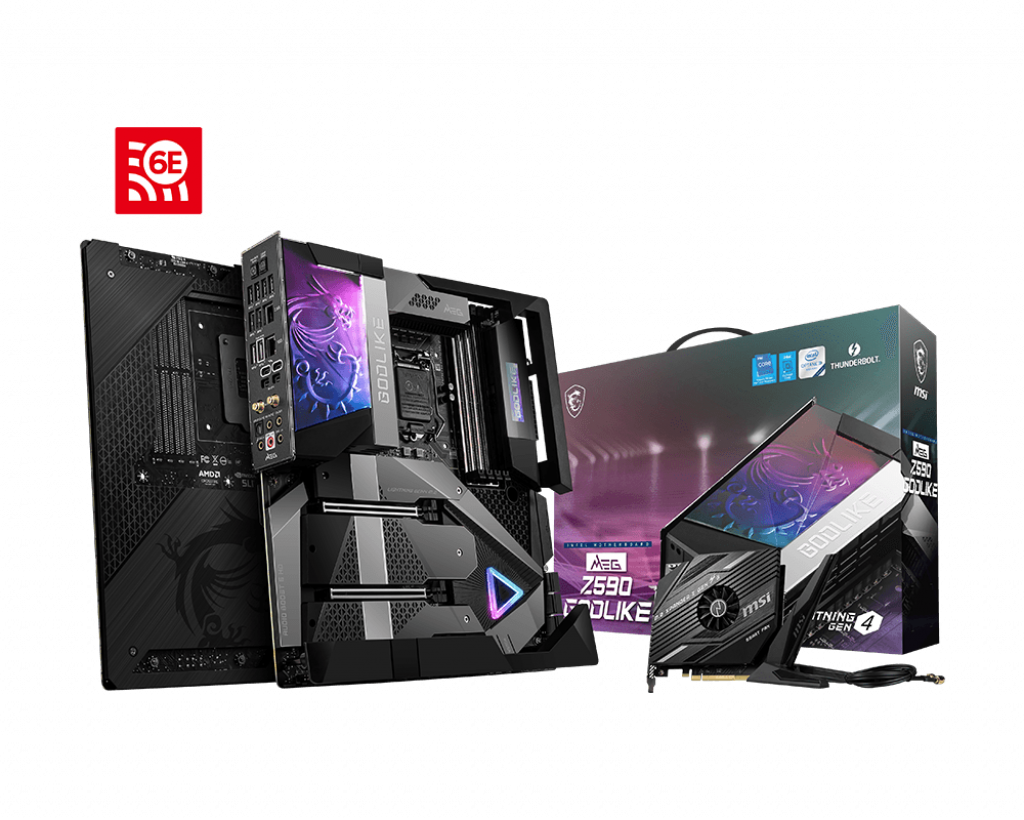

Дънна платка MSI MEG Z590 GODLIKE, Z590, LGA1200, DDR4, PCI-E 4.0 (mDP)(CF&SLI), 6x SATA 6Gb/s, 4x M.2, 2x Thunderbolt 4, Wi-Fi, Bluetooth, E-ATX

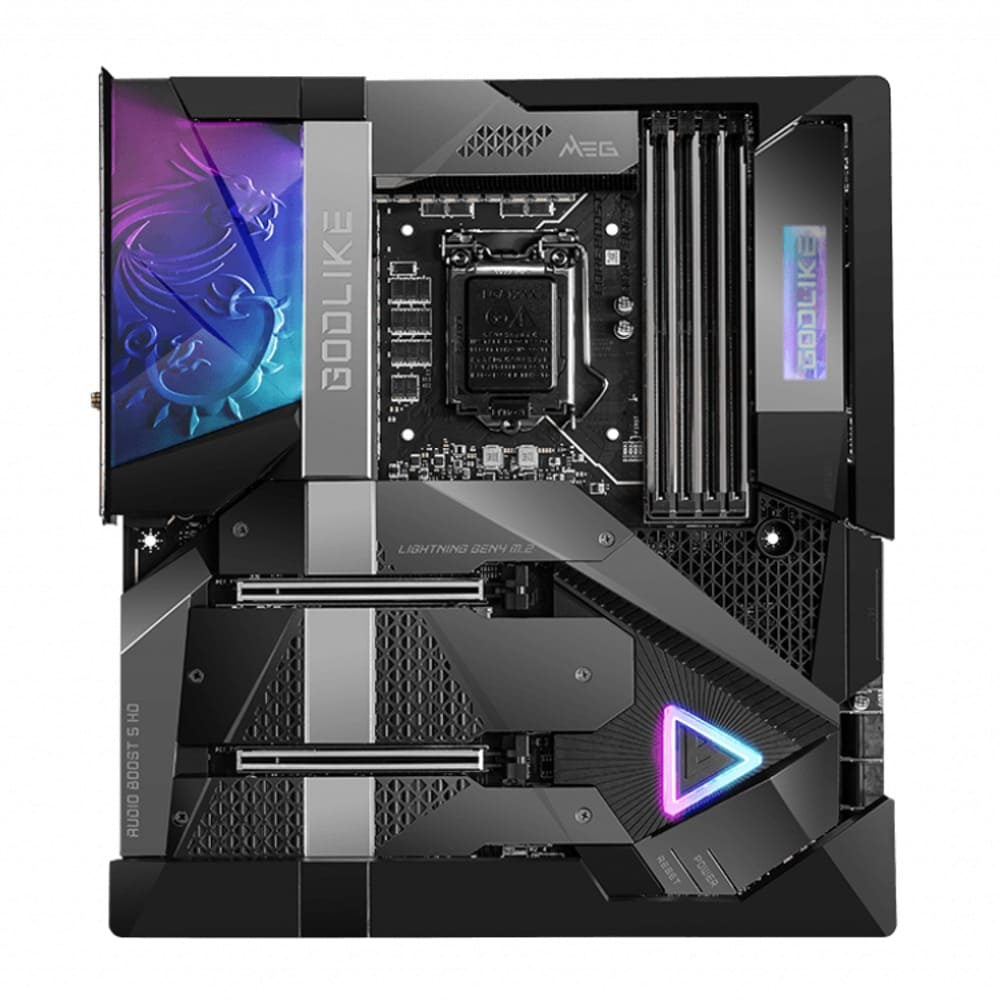

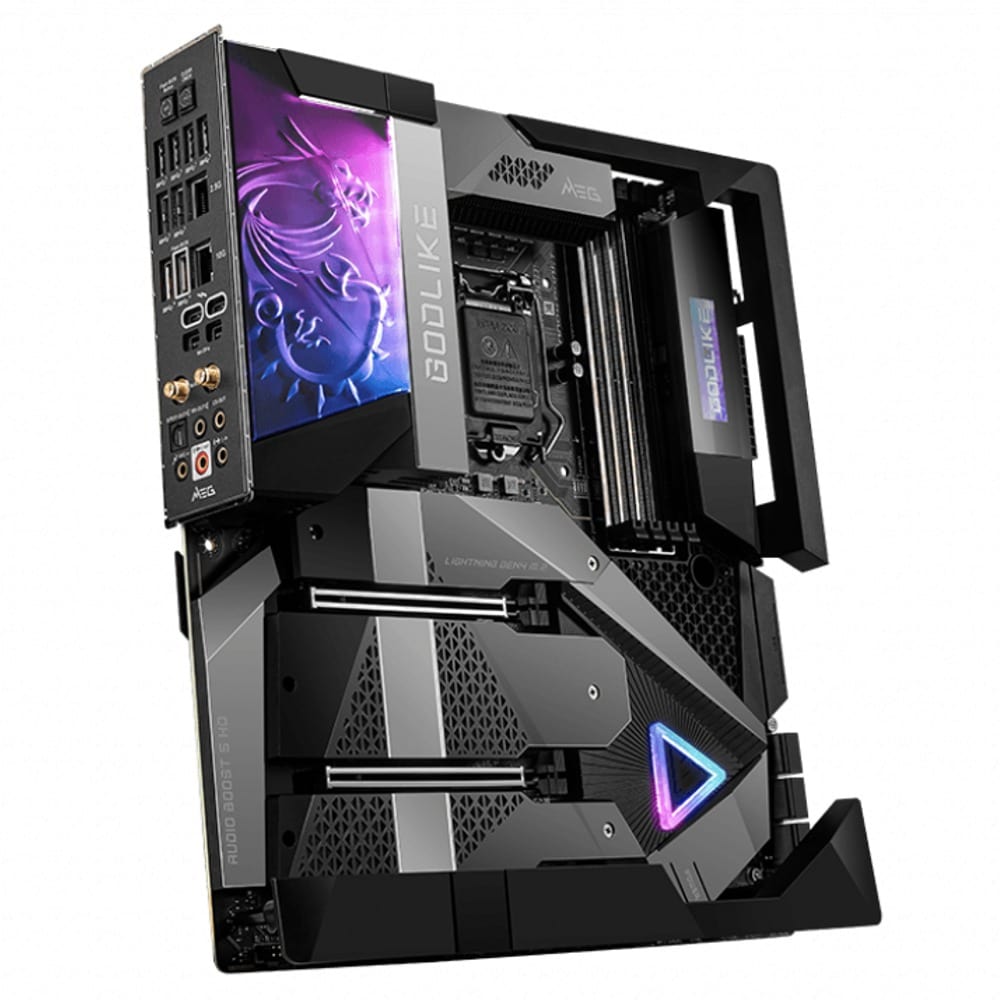

MEG Z590 GODLIKE

• Supports 11th and 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5600(OC) MHz
• Extreme Power Design: INTERSIL digital PWM, direct 20 phases with 90A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
• Premium Thermal Module: Wavy fin design, 8mm heatpipe, 7W/mK thermal pads, Frozr Heatsink and Aluminum Backplate ensure the extreme performance with low temperature.
• Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
• Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Dynamic Dashboard II: Built-in colorful OLED screen panel indicates the status of GODLIKE and shows off your own personality.
• Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and latest Wi-Fi 6E solution deliver the best online experience without lag.
• Full Armor Design: The revolutionary magnetic cover allow you showing off your PC building without messy cable when installing great amount of devices.
• Special Accessory: Exclusive accessories boost the performance and user experience - M.2 XPANDER-Z GEN 4 S, Tuning Controller and DIY Stands set.







Specifications:

PROCESSOR

• Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® processors ¹
• Processor socket LGA1200

See supported processors

CHIPSET

Intel^® Z590 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB ¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR) ¹
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 5600 MHz
    • 1DPC 2R Max speed up to 4800+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC mode, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOTS

• 3x PCIe x16 slots
  • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4
  • PCI_E1 & PCI_E2 slots (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel^® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel^® CPU
  • PCI_E3 slot (From Z590 chipset) ¹
    • Supports up to PCIe 3.0

1. PCI_E3 will run at x1 speed when installing device in M2_4 slot.

MULTI-GPU

• Supports 2-Way NVIDIA^® SLI™ Technology
• Supports 3-Way AMD^® CrossFire™ Technology

THUNDERBOLT 4

Intel^® JHL8540 Thunderbolt™ 4 Controller

• 2x Thunderbolt™ 4 (Type-C) ports on the back panel
  • Support up to 40 Gbps transfer rate with Thunderbolt devices
  • Support up to 20 Gbps transfer rate with USB4 devices
  • Support up to 10Gbps transfer rate with USB 3.2 devices
  • Support up to 5V/3A , 15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)

STORAGE

• 6x SATA 6Gb/s ports (from Z590 chipset)
• 4x M.2 slots (Key M)
  • M2_1 (from CPU)
    • Available only on 11th Gen Intel^® CPU
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 ¹, M2_3 ² & M2_4 slots (from Z590 chipset)
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices ³
    • Intel^® Optane™ Memory Ready
  • Supports Intel^® Smart Response Technology for Intel Core™ processors ⁴

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
3. M2_4 will run at x2 speed when installing device in PCI_E3 slot.
4. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel^® Z590 Chipset

• 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector)
• 2x USB 2.0 ports are available through the internal USB 2.0 connector

Hub GL850G

• 2x USB 2.0 ports are available through the internal USB 2.0 connector

Asmedia^® 1074 Chipset

• 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available through the internal USB 3.2 Gen 1 connectors)

AUDIO

Realtek^® ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Aquantia^® AQC107 10Gbps LAN controller
• 1x Intel^® I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH

Intel^® WiFi-6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹ (160MHz) up to 2.4Gbps
• Supports 802.11a/ b/ g/ n/ ac/ ax
• Supports Bluetooth^® 5.2 ² , FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x 6-pin ATX PCIE power connector
• 6x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 8x 4-pin system fan connectors
• 1x 3-pin Water Flow connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis intrusion connector
• 2x 2-pin Thermal sensors connectors
• 1x TPM module connector
• 1x Tuning controller connector

LED FEATURE

• 1x 2-Digit Debug Code LED
• 4x EZ Debug LED
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin CORSAIR LED connector
• 1x EZ LED Control switch

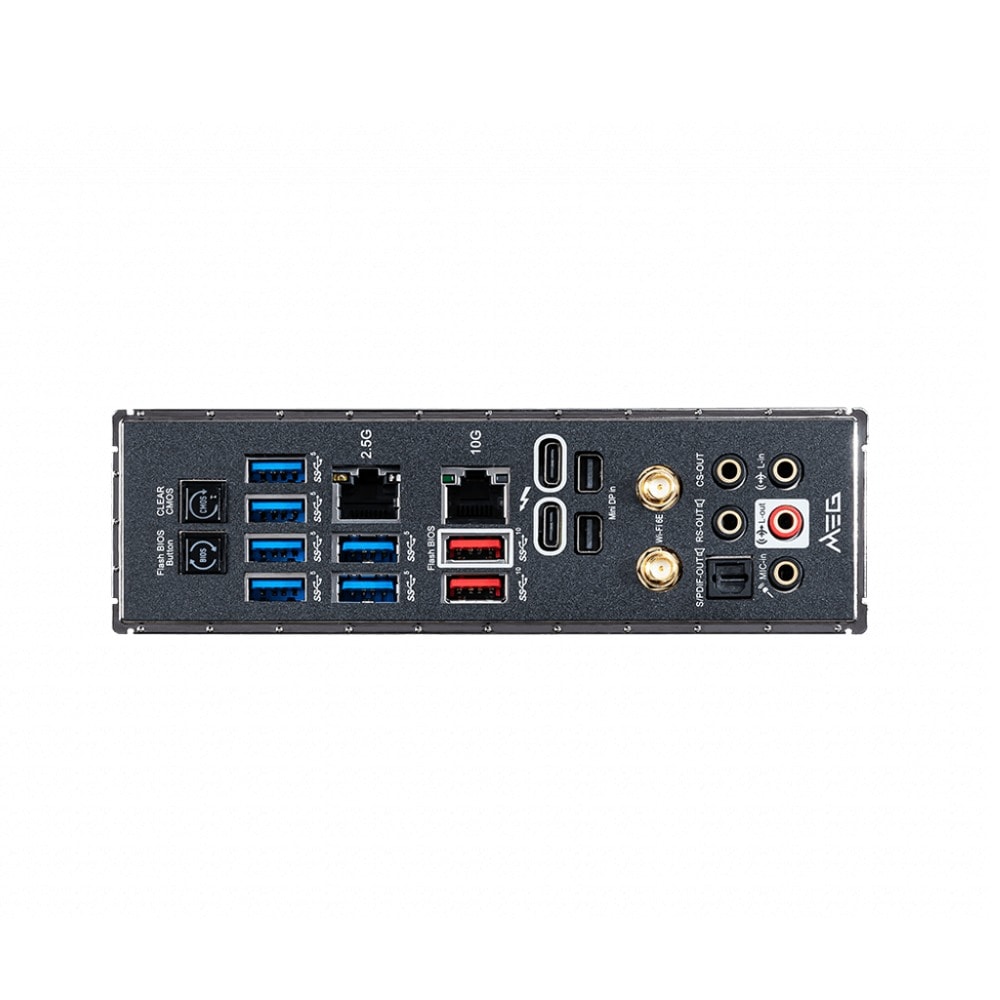

BACK PANEL PORTS

1. Clear CMOS Button
2. 2.5G LAN
3. 10G Super LAN
4. Thunderbolt 4 40Gbps (Type-C)
5. Wi-Fi / Bluetooth
6. HD Audio Connectors
7. Flash BIOS Button
8. USB 3.2 Gen1 5Gbps (Type-A)
9. USB 3.2 Gen2 10Gbps (Type-A)
10. Mini DisplayPort Input (for Thunderbolt passthrough)
11. Optical S/PDIF-Out

DIMENSIONS

• 12 in. x 10.9 in. (30.5 cm x 27.7 cm)
• E-ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

• Support for Windows^® 10 64-bit
