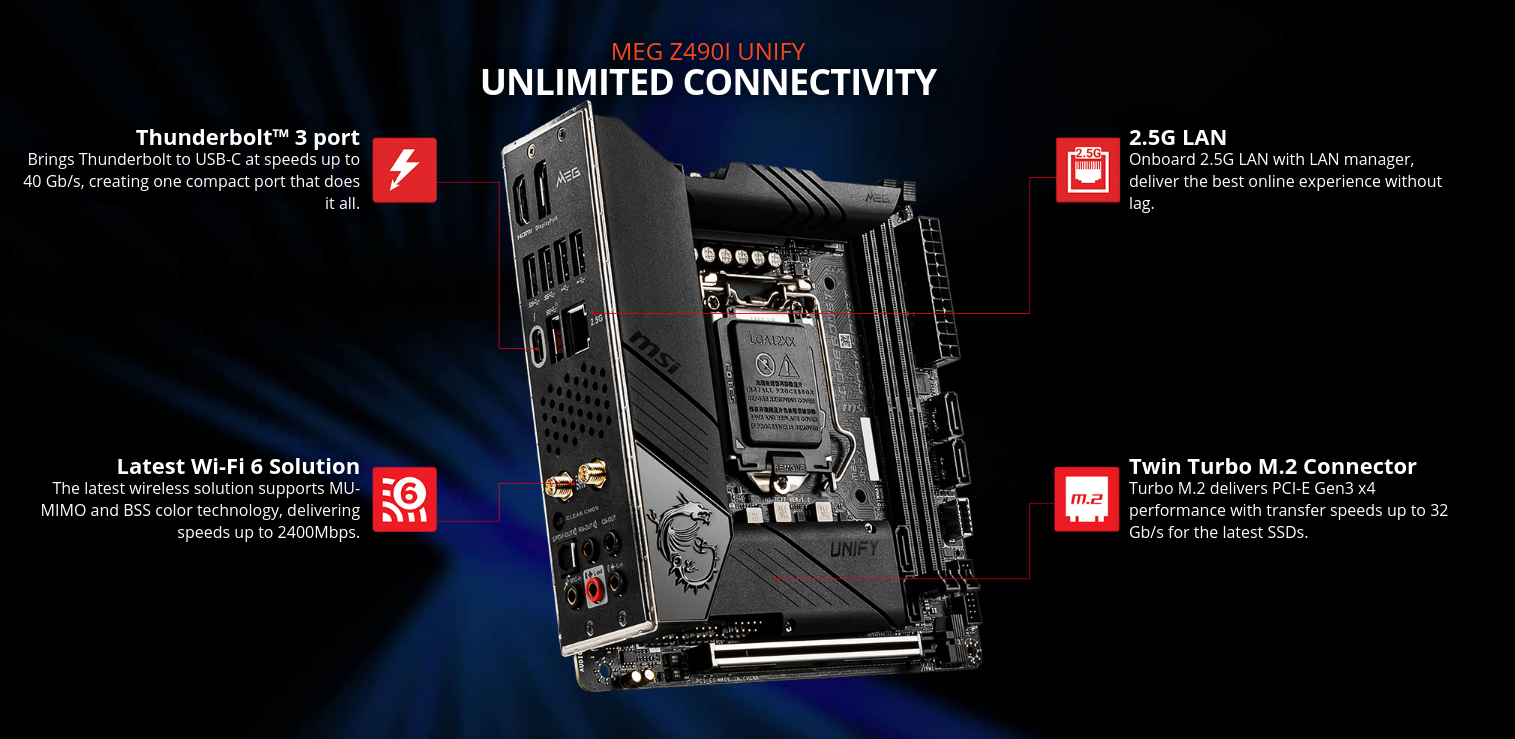

Дънна платка MSI MEG Z490I UNIFY, Z490, LGA1200, DDR4, PCI-E 3.0(DP,HDMI), 4x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen2 Type-A, Wi-Fi, Bluetooth, Mini-ITX

• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5000(OC) MHz
• Ready 4 the Future: Support Lightning Gen 4 Solution for the future
• Thunderbolt™ 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices.
• Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
• Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
• Latest Network Solution: Onboard 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
• Twin Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications:

PROCESSOR
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors

CHIPSET
Intel® Z490 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/2666/2933 MHz
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC mode, un-buffered memory
Supports Intel® Extreme Memory Profile [XMP]

EXPANSION SLOTS
1x PCIe 3.0 x16 slot

ONBAORD GRAPHICS
1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
Intel® JHL7540 Thunderbolt™ 3 Controller
1x Thunderbolt™ 3 [Type-C] port on the back panel
Supports Thunderbolt™ 3 with a maximum resolution of 3840x2160 @60Hz or DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz
Maximum shared memory is 1GB

THUNDERBOLT™ 3
Intel® JHL7540 Thunderbolt™ 3 Controller
1x Thunderbolt™ 3 [USB Type-C] port on the back panel
Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices
Supports up to 10 Gbps transfer rate with USB 3.2 Gen2 10Gbps devices
Supports up to 5V/3A , 15W power charging
Supports Daisy-chain up to six Thunderbolt™ 3 devices

STORAGE
Intel® Z490 Chipset
4x SATA 6Gb/s ports
2x M.2 slots [Key M]
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices
M2_2 supports up to PCIe 3.0 x4, 2280 storage devices
Intel® Optane™ Memory Ready
Supports Intel® Smart Response Technology for Intel Core™ processors
The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® Z490 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB
Intel® Z490 Chipset
2x USB 3.2 Gen2 10Gbps ports [1 Type-A port on the back panel, 1 Type-C internal connector]
4x USB 3.2 Gen1 5Gbps ports [2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen1 5Gbps connector]
4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]
Intel® JHL7540 Thunderbolt™ 3 Controller
1x USB 3.2 Gen2 10Gbps Type-C port on the back panel

AUDIO
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH
Intel® AX201
The Wireless module is pre-installed in the M.2 [Key-E] slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz [160MHz] up to 2.4Gbps
Supports 802.11ac
WiFi 6 pre-certified
Supports Bluetooth® 5.1, FIPS, FISMA

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots [M-Key]
1x USB 3.2 Gen2 10Gbps Type-C port
1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]
1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector

LED FEATURES
4x EZ Debug LED

BACK PANEL CONNECTORS
Display port
USB 2.0 ports
2.5G LAN
Wi-Fi /Bluetooth Antenna Connectors
HD Audio Connectors
HDMI port
USB 3.2 Gen1 5Gbps (Type-A)
Thunderbolt 3 (40Gbps)
USB 3.2 Gen2 10Gbps (Type-A)
Clear CMOS Button
Optical S/PDIF Out

DIMENSIONS
6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
Mini-ITX Form Factor

MOUNTING
4 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
