Водно охлаждане за процесор MSI MAG Coreliquid M360, съвместимост със сокети Intel LGA 1150/1151/1155/1156/1200/1700 & AMD AM5/AM4/TR4

MSI MAG Coreliquid M360

• Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
• The unique curved copper plate is designed to fully cover the CPU while offering rapid heat dissipation.
• Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
• The radiator has a 12 pathway designed to help rapidly dissipate heat.
• Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM5, AM4, TR4

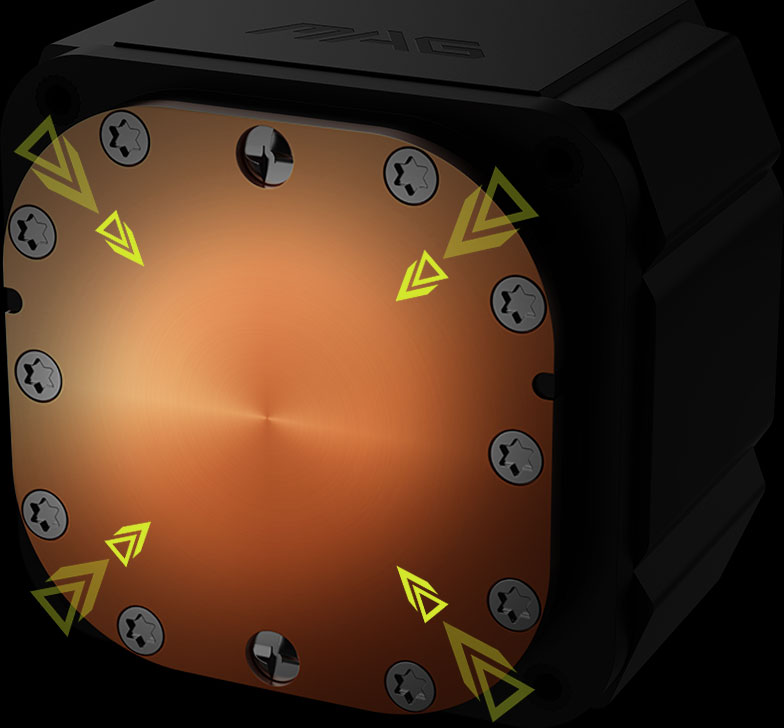

Elevated Copper Plate

The unique curved copper plate is designed to fully cover the CPU while offering rapid heat dissipation.

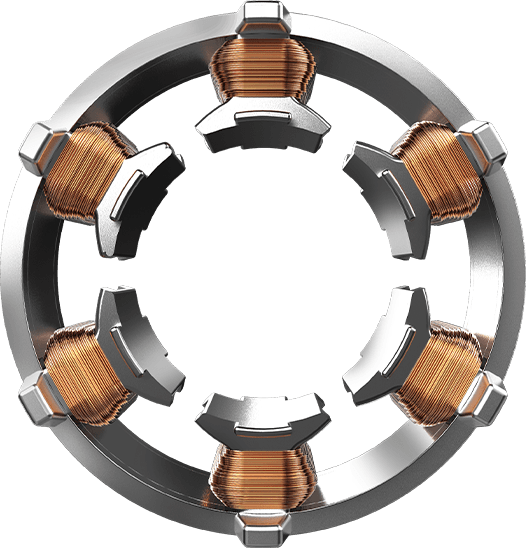

Pump Motor Resonance Elimination

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

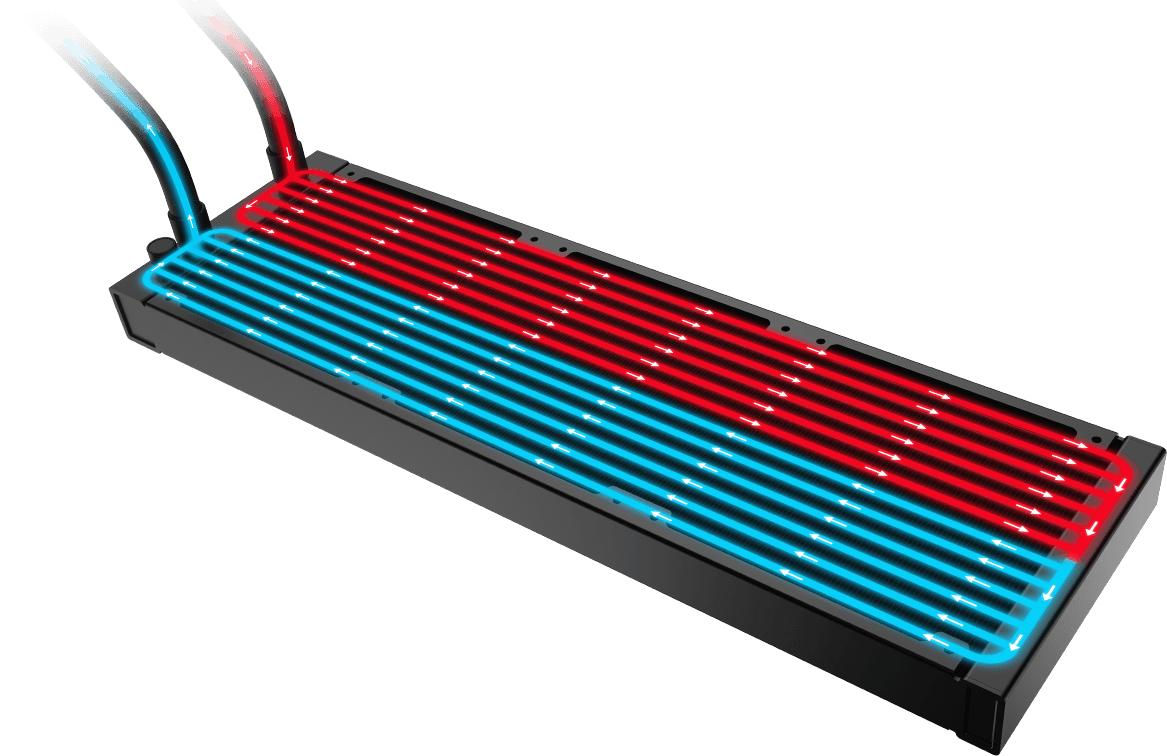

HIGH THERMAL DISSIPATION

The radiator has a 12 pathway designed to help rapidly dissipate heat.

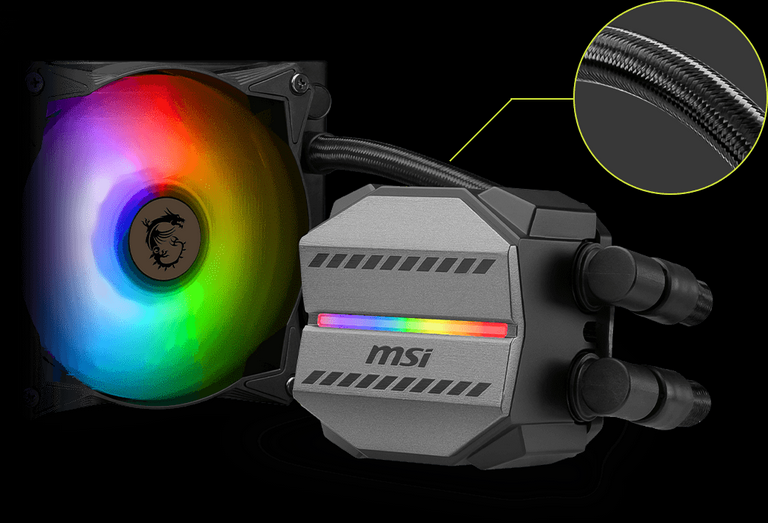

EVAPORATION PROOF TUBING

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

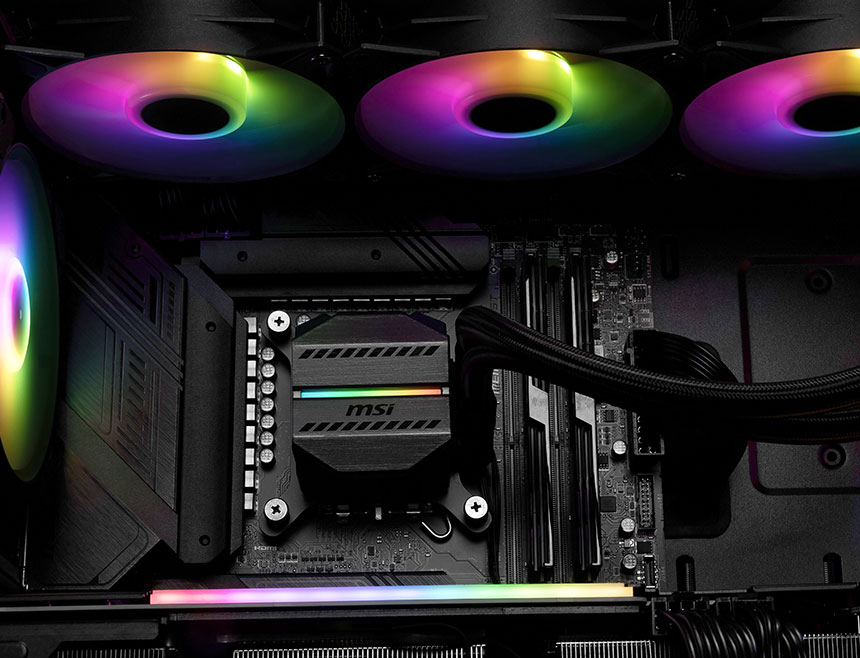

EXTENSIVE COMPATIBILITY

Stylish yet built for flexibility, the MAG CORELIQUID M360 has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.

Intel Socket

LGA 1150/1151/1155/1156/1200/1700

LGA 2011/2011-3/2066

AMD Socket

AM5/AM4/TR4

SPECIFICATIONS:

Radiator Size 360 mm

Radiator Dimensions
(WxDxH)
397 x 120 x 27 mm / 15.63 x 4.7 x 1.06 inches

Radiator Material Aluminum
Water Cooling Tube
Material Black Rubber + Mesh
Number of Fans 3

Fan Dimensions (WxDxH) 120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches
Fan Air Flow 21.63 ~ 78.73 CFM
Fan Bearing Two Ball Bearing
Fan Life Expectancy 70,000 hours
Fan Rated Current 0.35 A
Fan Power Consumption 4.2 W

PWM Mode YES
Cable Length (PWM Cable) 350 mm / 13.78 inches
Fan Lighting ARGB

Pump Life Expectancy 100,000 Hours
Pump Noise Level 20 dBA
Pump Rated Current 0.38 A
Pump Power Consumption 4.56W
Pump Speed 3100 RPM ± 10%
Pump Connector 3 Pin

Cold Plate Material Copper + Plastic
Block Dimensions (WxDxH) 67.26 x 59.95 x 55.9 mm

Intel Socket Support LGA 1150/1151/1155/1156/1200/1700 LGA
2011/2011-3/2066
AMD Socket Support AM5/AM4/TR4
