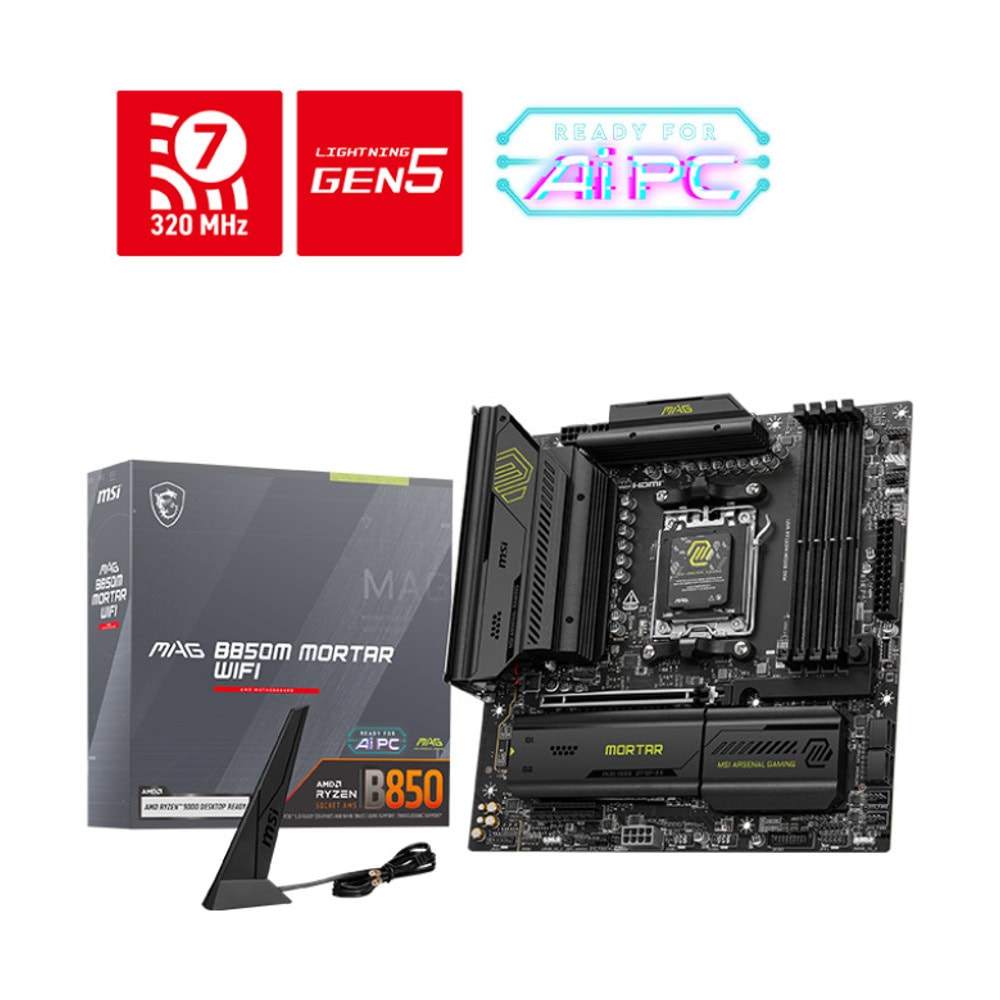

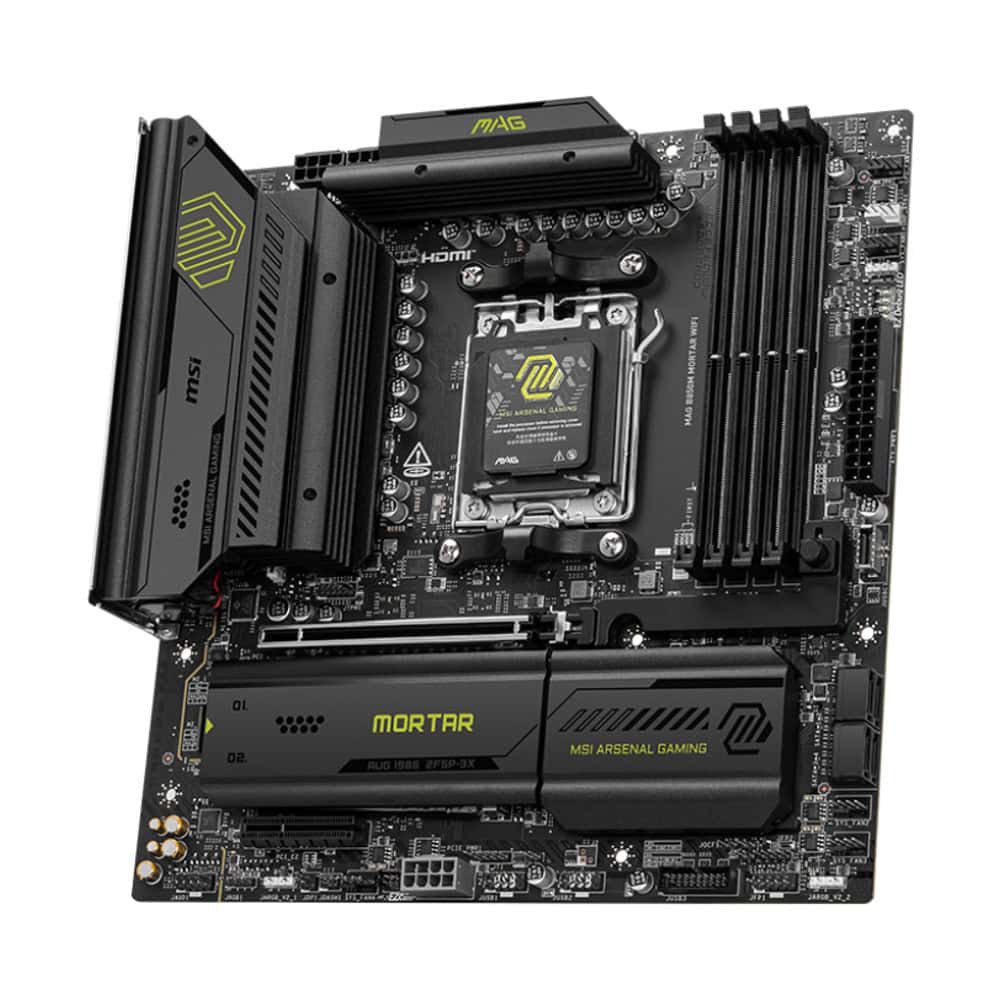

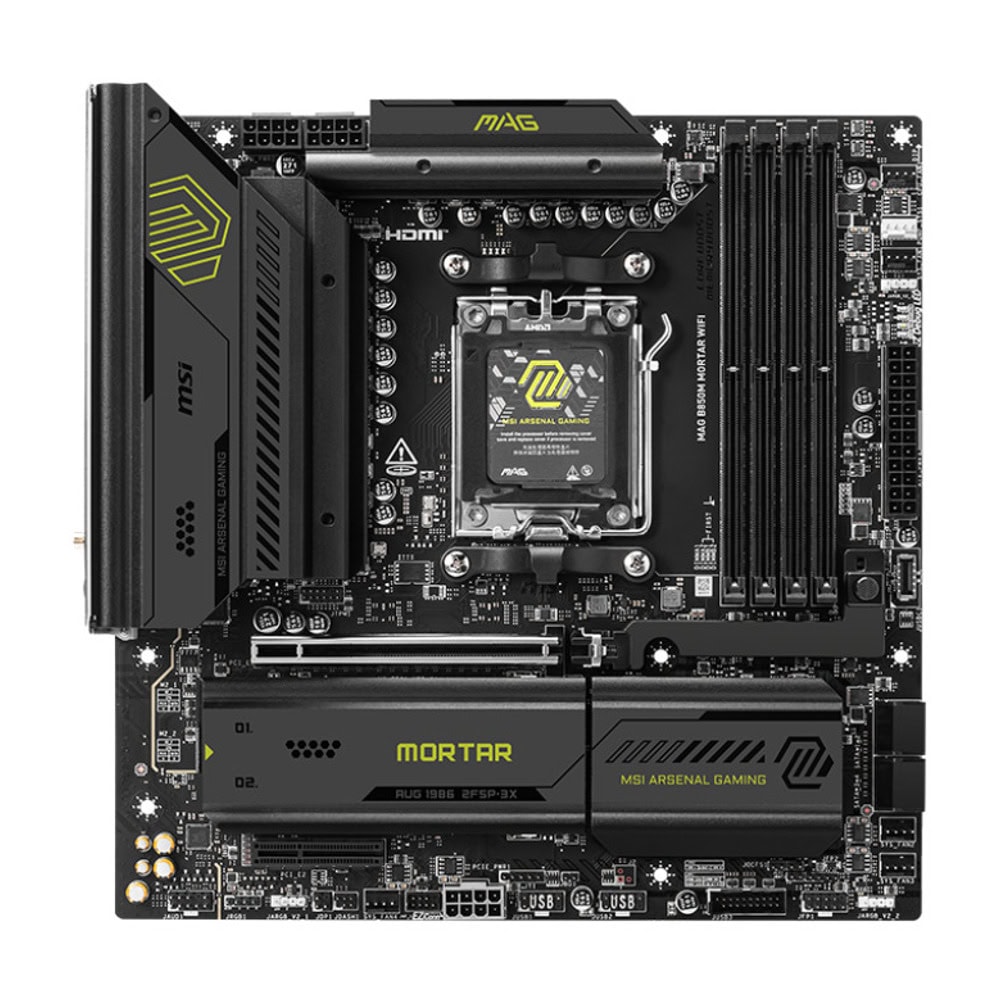

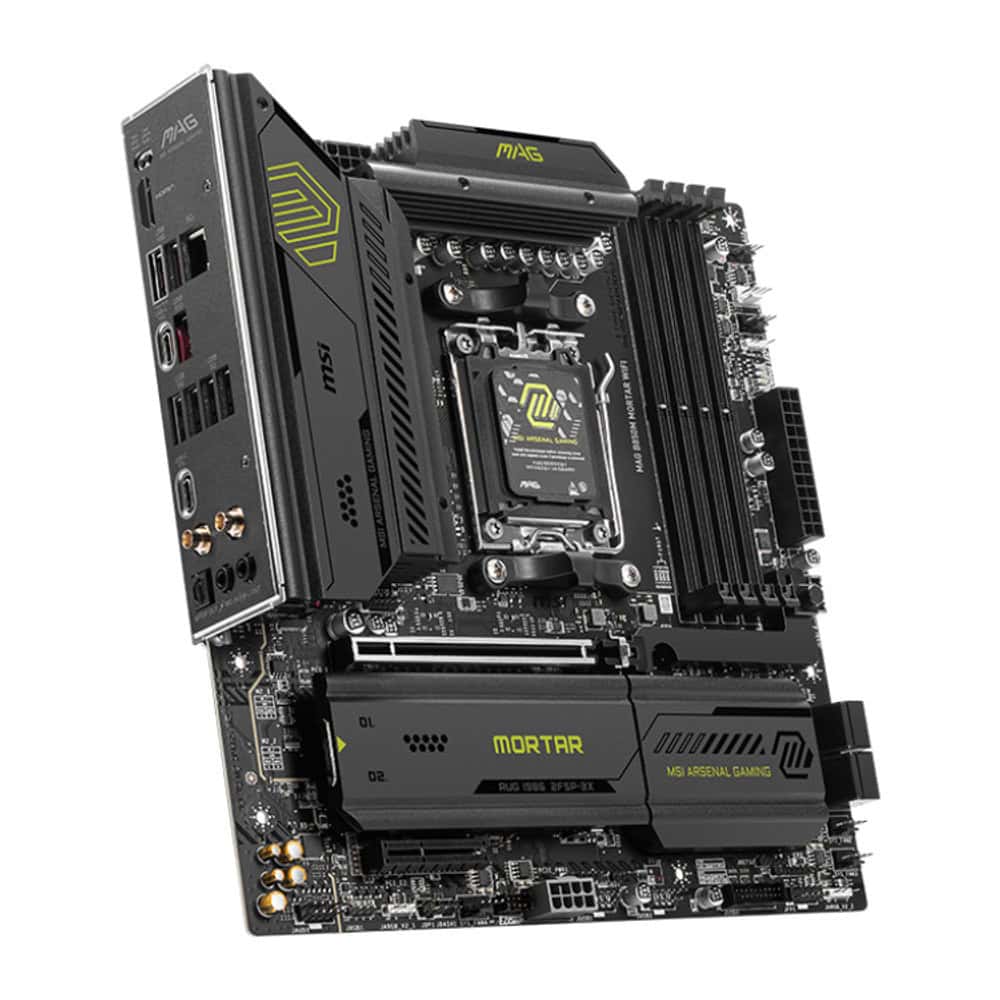

Дънна платка MSI MAG B850M MORTAR WIFI, B850, AM5, DDR5, PCI-E 5.0 (HDMI), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Gen 2x2 Type-C, Wi-Fi 7, Bluetooth 5.4, Micro ATX

CPU Support
AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Chipset Socket
AMD Socket AM5

Chipset
AMD B850

Expansion Slots
1x PCIe 5.0 x16 slot
1x PCIe 4.0 x4 slot
1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)

Display Interface
Support 8K@60Hz as specified in HDMI™ 2.1 FRL – Requires Processor Graphics

Memory
Support 4 DIMMs, Dual Channel DDR5
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

Storage
2x M.2 Gen5 x4 128Gbps slots
1x M.2 Gen4 x2 32Gbps slot
4x SATA 6Gbps ports

RAID
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

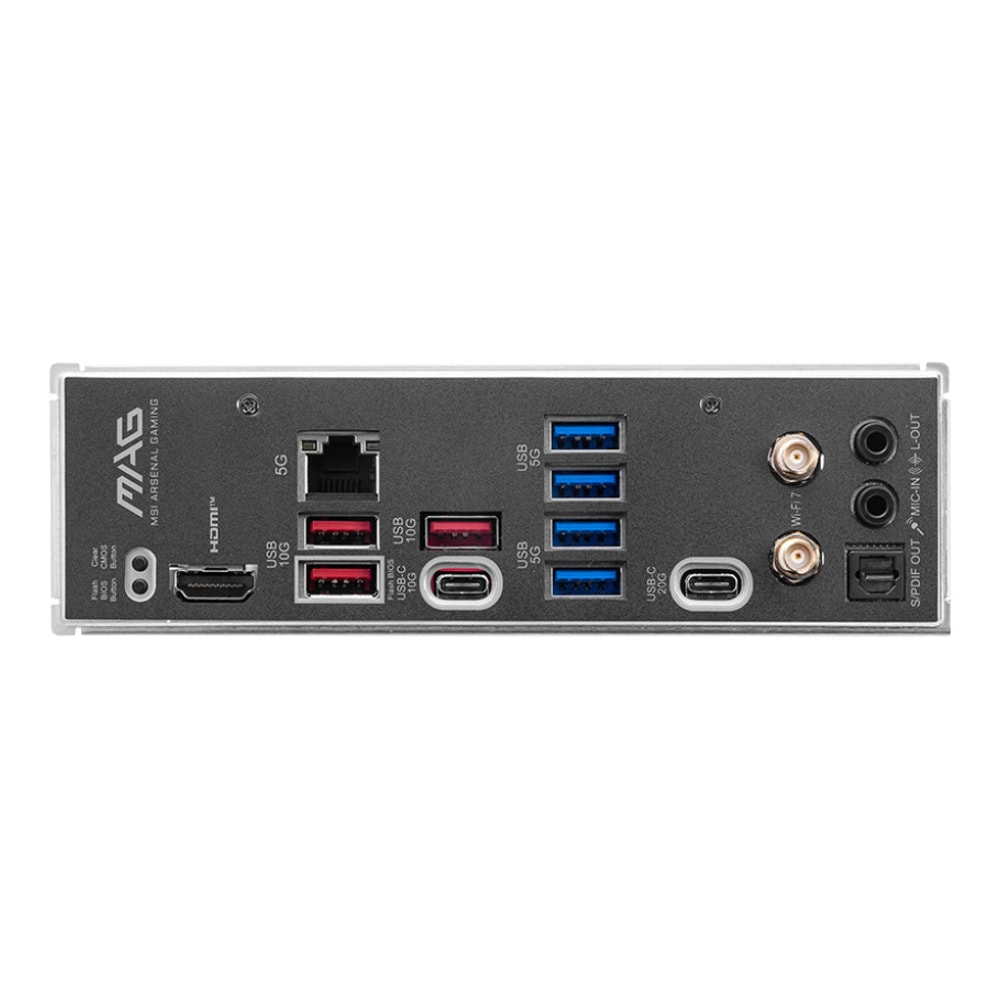

USB ports
1x USB 20Gbps (1 Type-C)
5x USB 10Gbps (2 Type-C + 3 Type-A)
6x USB 5Gbps (6 Type-A)
4x USB 2.0

LAN
Realtek 5G

Wireless / Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4

Audio
8-Channel (7.1) HD Audio with Audio Boost 5
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output

OPERATING SYSTEM
Support for Windows 11 64-bit

PCB Info
mATX
243.84mmx243.84mm
