Дънна платка MSI MAG B365M MORTAR, B365, LGA1151, DDR4, PCI-E 3.0, (HDMI), 6x SATA 6Gb/s, 1x M.2 Socket, 1x USB Type C, Micro-ATX

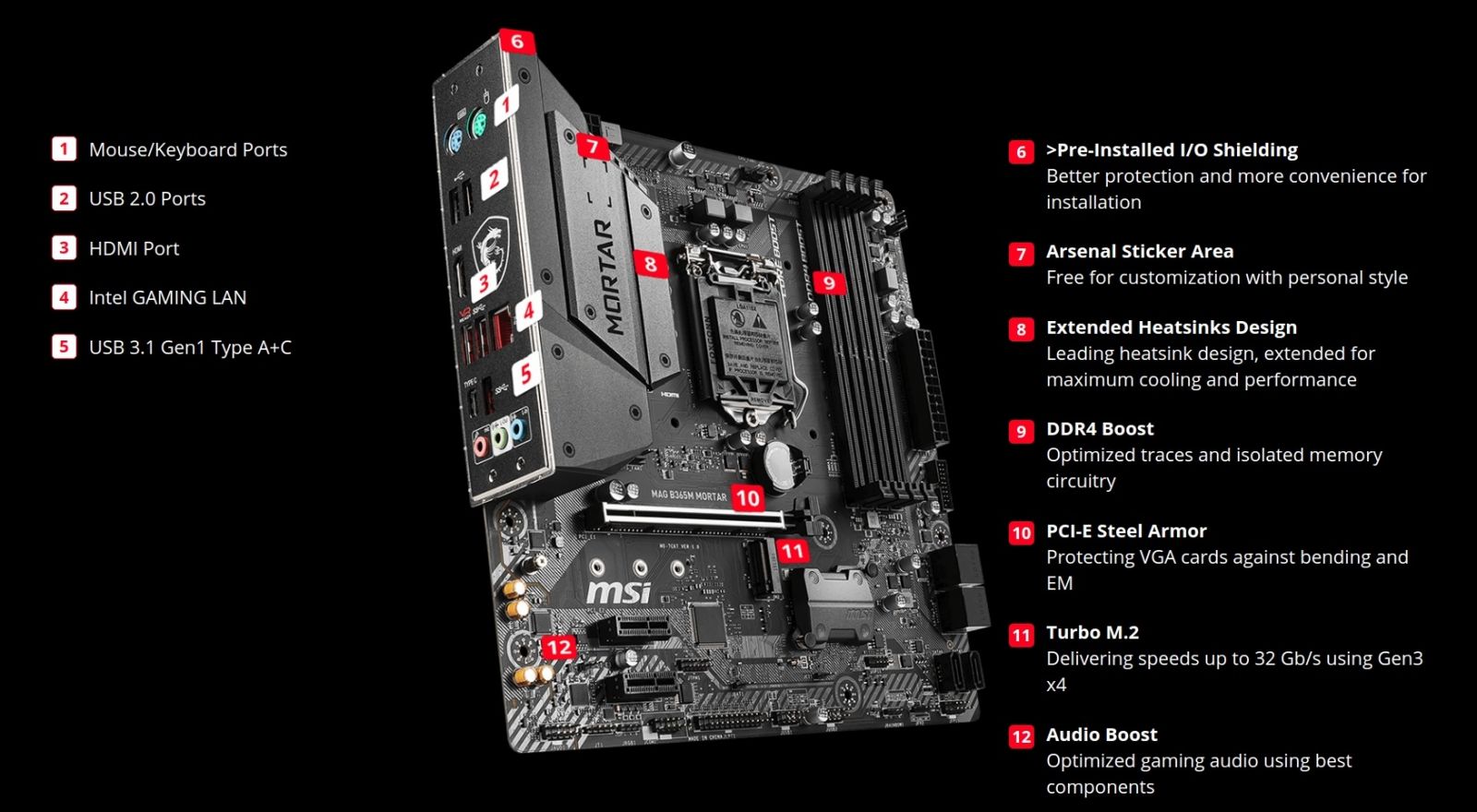

• Military style with Extended heatsink design for better thermal solution, Intel Gaming LAN, Pre-installed I/O Shielding, Core Boost, DDR4 Boost, Turbo M.2 and USB 3.1 connector

• Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

• Supports DDR4 Memory, up to 2666 MHz

• Intel Gaming LAN: Premium network solution from Intel® for professional and

• multimedia use. Delivers a secure, stable and fast network connection

• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

• Set Core Power Free: Extended Heatsink Design, Core Boost, DDR4 Boost

• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

• Mystic Light Extension: Control both RGB and RAINBOW strips with independent LEDs added to your system with Mystic Light APP and mobile device

• Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE  with user friendly user interface.

MAG B365M MORTAR
BLAST AWAY THE COMPETITION

PROCESSOR
Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

CHIPSET
Intel® B365 Chipset

MEMORY
4 x DDR4 memory slots, support up to 64GB
Supports DDR4 2666/ 2400/ 2133 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
See supported memory

SLOTS
1 x PCIe 3.0 x16 slot
2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
*No Display support when using the Processor model with suffix “F”

STORAGE
Intel® B365 Chipset
6 x SATA 6Gb/s ports1
1 x M.2 slots (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
Intel® Optane™ Memory Ready
SATA1 port will be unavailable when installing SATA M.2 SSD in M.2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® B365 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB
Intel® B365 Chipset
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN
1 x Intel® I219-V Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x Serial port connector
1 x Parallel port connector
1 x 3-pin RAINBOW LED connector
1 x 4-pin RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper

BACK PANEL PORTS
Mouse Port
Intel GAMING LAN
HD Audio Connectors
Keyboard Port
USB 2.0 ports
HDMI Port
USB 3.1 Gen1 Type-A ports
USB 3.1 Gen1 Type-A+C ports
MSI MAG B365M MORTAR back panel ports

DIMENSIONS
9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
Micro-ATX Form Factor

MOUNTING
8 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
