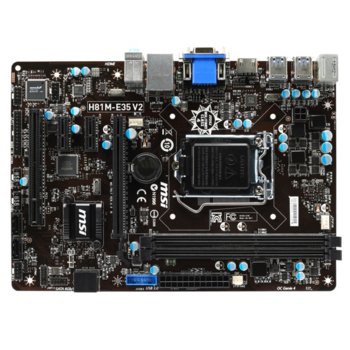

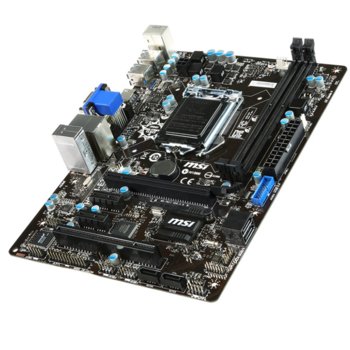

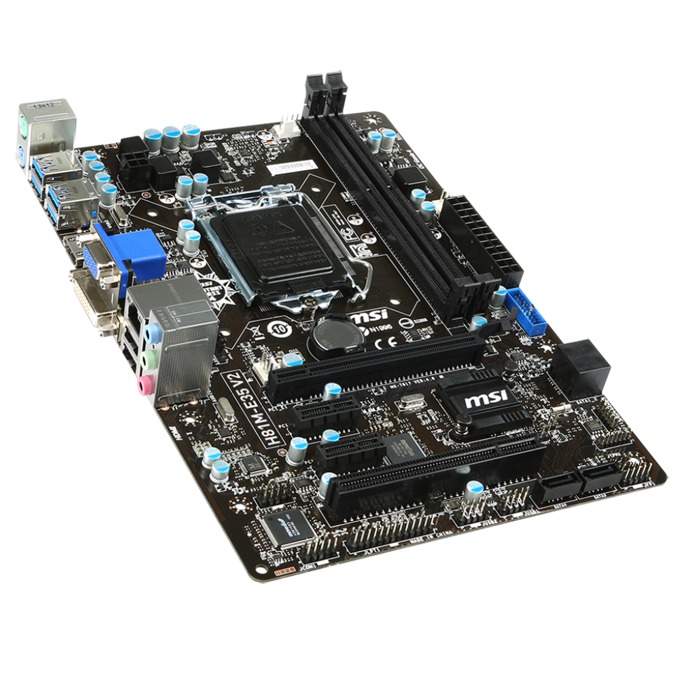

Дънна платка MSI H81M-E35 V2, H81, LGA1150, DDR3, PCI-E (HDMI&DVI), SB7.1, Lan1000, 2x SATA 6Gb/s, 4x USB 3.0, Micro-ATX

MSI
H81M-E35 V2

Specifications

CPU

• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® H81 Express

Main Memory

• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory

Slots

• 1 x PCIe 2.0 x16 slot
• 2 x PCIe 2.0 x1 slots
• 1 x PCI slot

On-Board SATA

• SATAIII controller integrated in Intel® H81 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1_2) by H81

• SATAII controller integrated in Intel® H81 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by H81

USB

• Intel H81 Express Chipset
- 2 x USB 3.0 ports available through an onboard USB 3.0 connector
- 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through two onboard USB 2.0 connectors)
• VIA VL805 Chipset
- 4x USB 3.0 ports on the back panel

Audio

• Chip integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec

LAN

• Supports Gb LAN 10/100/1000 by Realtek® RTL8111G

Internal I/O Connectors

- 1x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x TPM connector
- 1 x Parallel port connector
- 1 x Serial port connector
- 1 x Chassis intrusion connector
- 1 x Clear CMOS jumper
- 2 x USB power jumpers

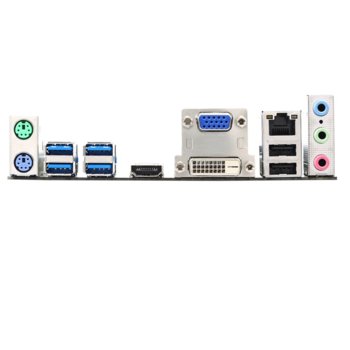

Back Panel I/O Ports

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 3.0 ports
- 1 x HDMI port, supporting the maximum resolutions of 2560x1600@60Hz, 24bpp/ 1920x1080@60Hz, 36bpp
- 1 x VGA port, supporting a maximum resolution of 1920x1200@60Hz, 24bpp
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz, 24bpp
- 1 x LAN (RJ45) port
- 2 x USB 2.0 ports
- 3 x audio jacks

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 9.6 in. x 6.8 in. (24.38 cm x 17.3 cm) Micro-ATX Form Factor

Mounting

• 6 mounting holes
