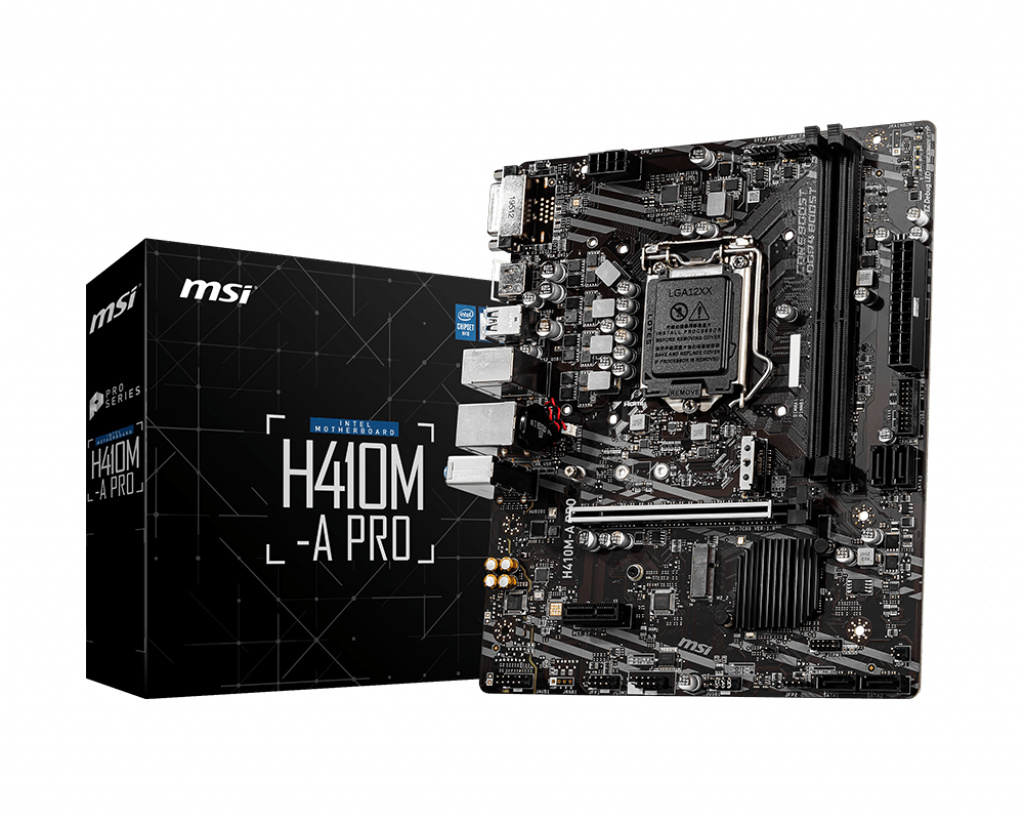

Дънна платка MSI H410M-A PRO, H410, LGA1200, DDR4, PCI-E 3.0, 4x SATA 6Gb/s, 2x M.2, 2x USB 3.2 Gen1, Micro ATX

• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933(Max) MHz
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

SPECIFICATIONS:

PROCESSOR
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

Please go to www.intel.com for more compatibility information.Onboard graphics output are disabled when using F SKU processors.

CHIPSET
Intel® H410 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi module only

ONBOARD GRAPHICS
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
Maximum shared memory is 1GB

STORAGE
Intel® H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

USB
Intel® H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN
1x Intel® I219V Gigabit LAN controller

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED

BACK PANEL PORTS
Keyboard / Mouse
LAN
DVI-D
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
Audio Connectors
MSI Z490-A PRO back panel ports

DIMENSIONS
Mirco-ATX Form Factor
9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

MOUNTING
6 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
