Дънна платка MSI H310M PRO-VDH PLUS, H310M, LGA1151, DDR4, PCI-E (HDMI&DVI&VGA), 4x SATA 6Gb/s, 4x USB 3.1 Gen1, m-ATX

H310M PRO-VDH PLUS

• Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

• Supports DDR4 Memory, up to 2666MHz

• Audio Boost: Reward your ears with studio grade sound quality.

• EZ Debug LED: Easiest way to troubleshoot.

• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

H310M PRO-VDH PLUS

STRONGER THAN STEEL

SPECIFICATIONS

PROCESSOR
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

CHIPSET
This chipset is ME11 firmware based and doesn't feature SDA3.0.
Intel® H310 Chipset
This chipset is ME11 firmware based and doesn’t feature SDA3.0.

MEMORY
2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1
Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC)1
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
2666 MHz for I7 and I5 processors only.

SLOTS
1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H
*No Display support when using the Processor model with suffix “F”
Supports up to 2 displays simultaneously.

STORAGE
Intel® H310 Chipset
4 x SATA 6Gb/s ports
Supports Intel® Rapid Storage Technology

USB
Intel® H310 Chipset
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

AUDIO
Realtek® ALC887/ ALC892/ ALC897 Codec
7.1-Channel High Definition Audio

LAN
1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x Clear CMOS jumper
2 x Front panel connectors
1 x Serial port connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Front panel audio connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector

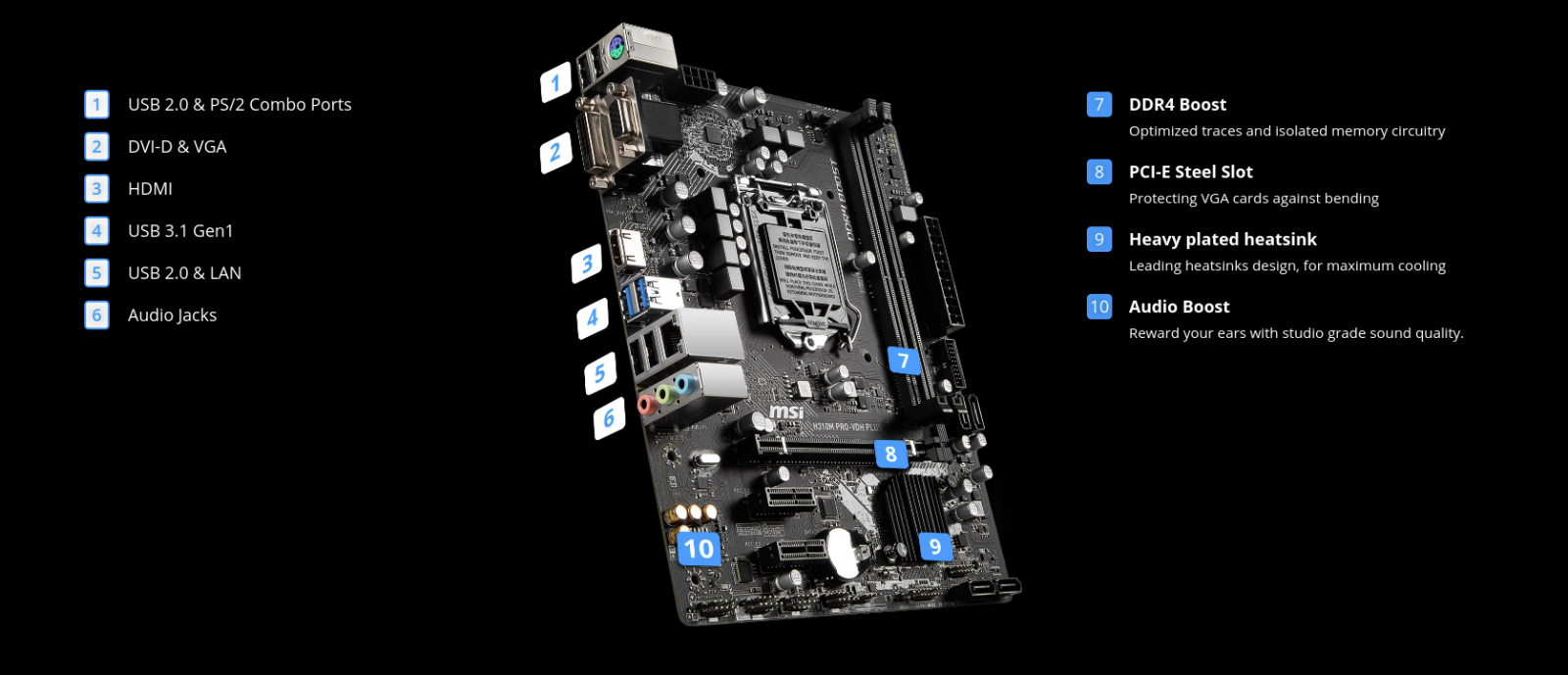

BACK PANEL PORTS
PS/2 Combo Port
VGA Port
HDMI Port
USB 3.1 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Port

DIMENSIONS
8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
m-ATX Form Factor

MOUNTING
6 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
