Дънна платка MSI H110M PRO-VHL, H110, LGA1151, DDR4, PCI-E(HDMI&VGA), 4x SATA 6Gb/s, 2x USB 3.1(Type A), mATX

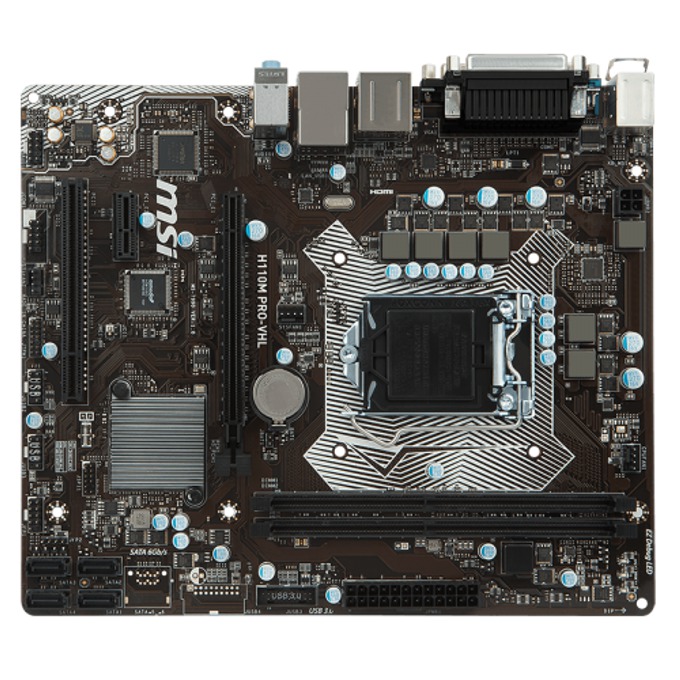

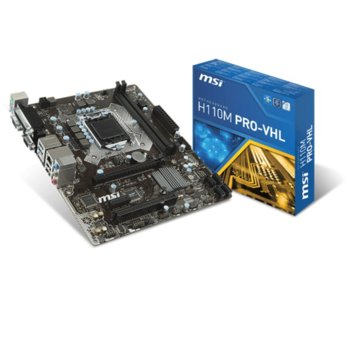

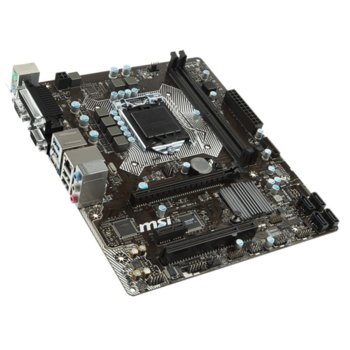

MSI H110M PRO-VHL

CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset

• Intel® H110 Chipset

Main Memory

• 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports Non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to Compatibility reports for more information of compatible memory.
* DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation


Slots

• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 3.0 x1 slot
• 1 x PCI slot

Onboard Graphics

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
- Support for HDMI™ 1.4 version.
• 1 x VGA port, supports a maximum resolution of 1920x1200@60Hz

On-Board SATA

• Intel® H110 Chipset
• 4 x SATA 6Gb/s ports


USB

• Intel® H110 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)(optional)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)


Audio

• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

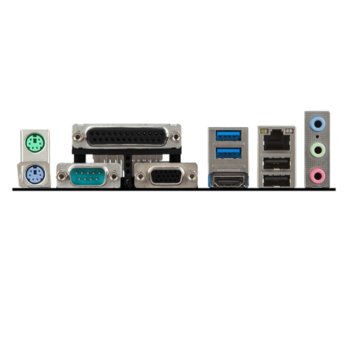

Back Panel I/O Ports

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 2 x USB 2.0 ports
- 2 x USB 3.1 Gen1 ports
- 1 x Serial port
- 1 x Parallel port
- 1 x VGA port
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 3 x audio jacks

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

Dimension

• 9.6 in. x 8.1 in. (24.3 cm x 20.5 cm) m-ATX Form Factor

Mounting

• 6 mounting holes
