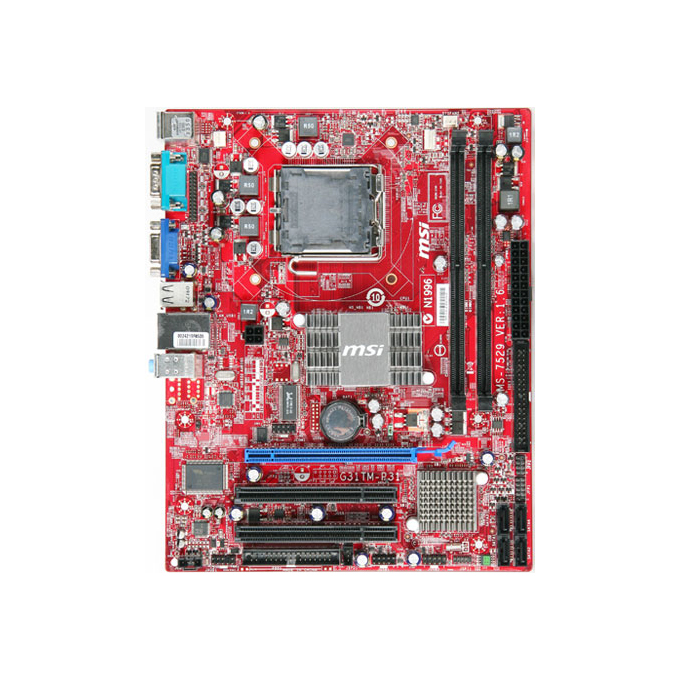

MSI G31TM-P21
CPU
• Intel® Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA775 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® G31 Chipset
- Supports FSB 800/1066/1333/1600* (OC) MHz.
- Supports dual channel, DDR2 667/800.
• Intel® ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATA ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
Main Memory
• Supports two unbuffered DIMM of 1.8 Volt DDR2 SDRAM
• Supports up to 8GB memory size.
• Supports dual channel DDR2 memory architecture.
• Supports DDR2 667/800 memory interface.
• Due to the limitation of G31 chipsets, dual channel support must meet some requirement in the specification of memory modules. please refer to Test Reports for detailed description.
Slots
• 1 x PCI Express x16 slot (PCI Express Bus SPEC V1.0a compliant)
• 2 x PCI slots (support 3.3V/ 5V PCI bus Interface)
On-Board IDE/SATA
• One Ultra DMA 66/100 IDE controller integrated in ICH7
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
• SATA controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Supports four SATA ports.
Audio
• Chip integrated by Realtek® ALC888S
- Flexible 7.1-channel audio with retasking
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium SPEC
• To reach the 8-channel sound effect, the 7th and 8th channels must be output from front panel if you purchase the mainboard with 3 audio jacks.
LAN
• Or Supports PCIE LAN 10/100 Fast Ethernet by Realtek 8103EL
On-Board Pinheaders/ Connectors
- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATA II connectors
- 1 x ATA133 IDE connector
- Clear CMOS jumper
- 1 x Serial port connector
- 1 x SPDIF-out header
- 1 x Parellel port connector
Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Serial port (COM 1)
- 1 x Graphics Card port
- 1 x 3 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
BIOS
• The mainboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Dimension
• 24.4cm(L) x 19.3cm(W) Micro-ATX Form Factor
