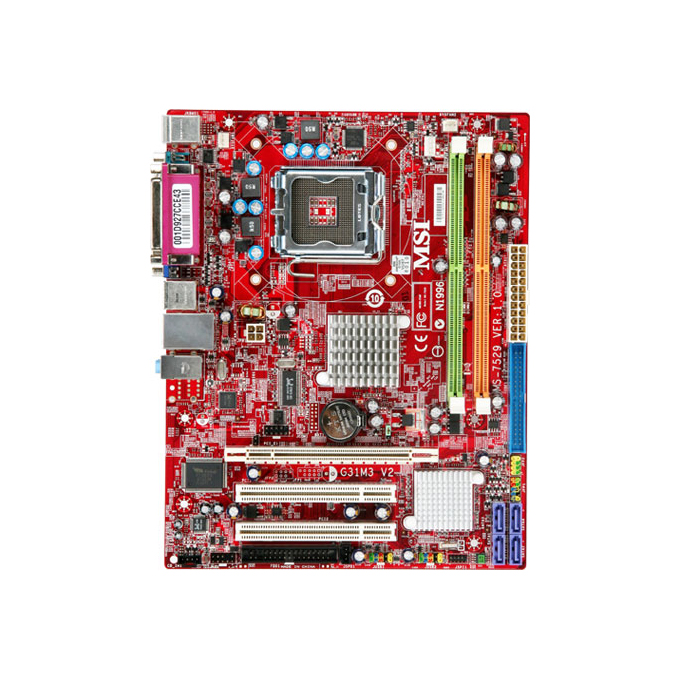

MSI G31M3-L V2
CPU
• Intel® Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA775 package.
We recommend using the following CPUs:
1. E8190 ~ E8600
2. E7200 ~ E7300
3. E6300 ~ E6850
4. E4300 ~ E4700
5. E2100 ~ E2200
6. E1200 ~ E1600
7. 420 ~ 460
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® G31 Chipset
- Supports FSB 800/1066/1333MHz.
- Supports dual channel, DDR2 667/800.
• Intel® ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATA ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
Main Memory
• Supports two unbuffered DIMM of 1.8 Volt DDR2 SDRAM
• Supports up to 4GB memory size.
• Supports dual channel DDR2 memory architecture.
• Supports DDR2 667/800 memory interface.
• Due to the limitation of G31 chipsets, dual channel support must meet some requirement in the specification of memory modules. please refer to Test Reports for detailed description.
Slots
• 1 x PCI Express x16 slot (PCI Express Bus SPEC V1.0a compliant)
• 2 x PCI slots (support 3.3V/ 5V PCI bus Interface)
On-Board IDE/SATA
• One Ultra DMA 66/100 IDE controller integrated in ICH7
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
• SATA controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Supports four SATA ports.
Audio
• Chip integrated by Realtek® ALC888
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium SPEC
LAN
• Supports 10/ 100 Fast Ethernet by Realtek 8101E
On-Board Pinheaders/ Connectors
- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATA II connectors
- 1 x ATA133 IDE connector
- Clear CMOS jumper
- 1 x Serial port connector
- 1 x SPDIF-out header
- 1 x SPI Debugging connector
MSI Reminds You...
• The floppy disk cable will be optional.
Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x Graphics Card port
- 1 x 3 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
BIOS
• The mainboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.
Dimension
• 24.4cm(L) x 19.3cm(W) Micro-ATX Form Factor
