Дънна платка MSI CREATOR, X299, LGA2066, DDR4, PCI-E(CF&SLi), 8x SATA 6Gb/s, 3x M.2 sockets, 1 x USB 3.2 Gen 2 Type-C, E-ATX

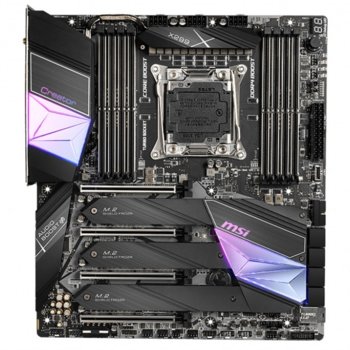

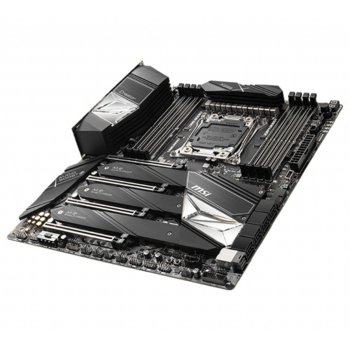

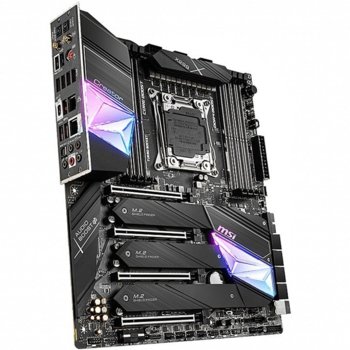

MSI CREATOR X299

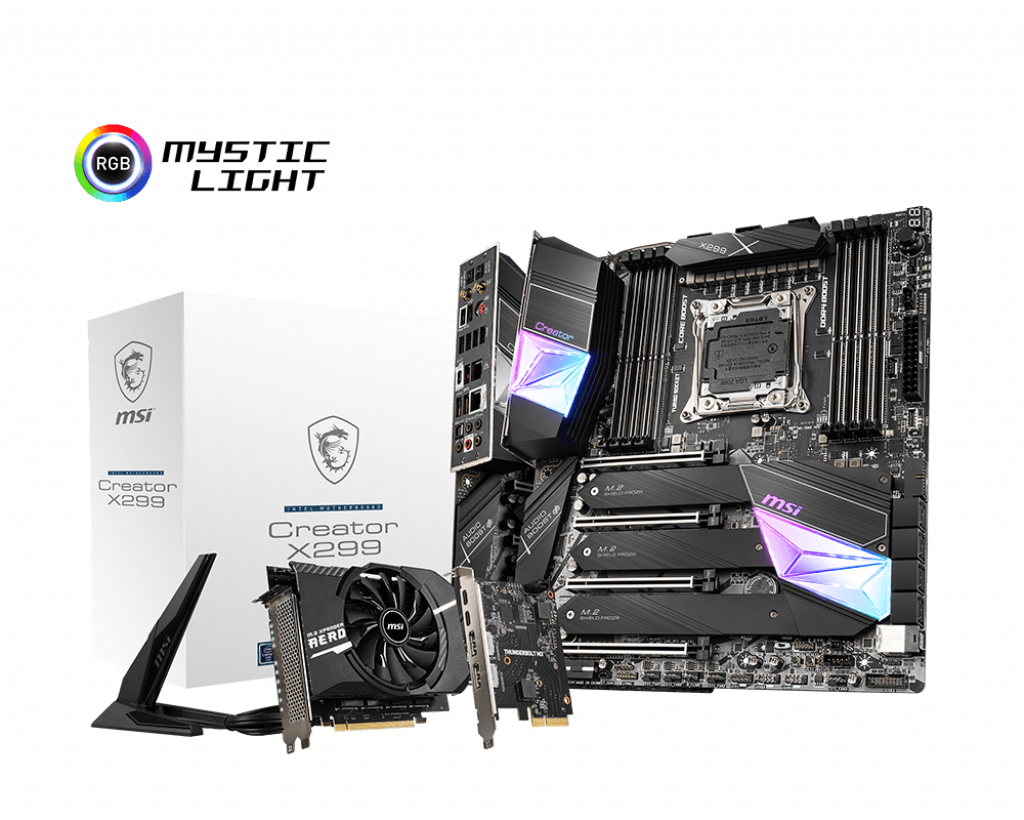

Unique look and feel inspired by the craft of crystal for all Creators. Features the latest USB3.2 Gen2x2 and 10G LAN, Wi-Fi 6, Triple Turbo M.2 with Shield Frozr, Core Boost, Audio Boost 4 with Nahimic, ThunderboltM3 card and M.2 Xpander-Aero card, Mystic Light.



• Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
• Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4266+(OC)
• More Powerful than Enough: dedicate 12 phases 90A digital power to CPU, with all aluminum design
• More Efficency for Data Transfer: 10G LAN + Intel® Gigabit LAN with Intel® WIFI 6 and bandwidth management
• More Compatibility for Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO, 1 x Turbo U.2
• More Flexibility for Temperature Control: Full fan control with 8 PWM fan headers and 1 dedicated thermal sensor
• Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
• M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster
• Core Boost: With premium layout and full digital power design to support more cores and provide better performance
• Triple 8 Pin Power Supply: By providing triple 8 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance
• Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, Raibow and Corsair LED strip
• Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality
• DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
• Multi-GPU: With Steel Armor PCI-E slots. Supports up to 4-Way NVIDIA SLI™ & 4-Way AMD Crossfire™
• THUNDERBOLTM3: Exclusive expansion card offering dual DisplayPort and dual Thunderbolt 3 for the full 4K video experience.





Specifications:





PROCESSOR
Supports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066



CHIPSET
Intel® X299 Chipset



MEMORY
8 x DDR4 memory slots, support up to 256GB1
Support DDR4 4266+(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133
Quad channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)


SLOTS
4 x PCIe 3.0 x16 slots
Support x8/ x8/ x16/ x8 and x16/ x0/ x16/ x8 modes with the 48-lane CPU.
Support x8/ x8/ x16/ x8 and x16/ x0/ x16/ x8 modes with the 44-lane CPU.1
Support x8/ x8/ x8/ x0 and x16/ x0/ x8/ x0 modes with the 28-lane CPU.2
The PCI_E4 slot will run 3.0 x4 speed with 44-lane CPU when installing M.2 PCIe device into M2_3 slot.The PCI_E4 slot is unavailable with 28-lane CPU.

MULTI-GPU
Supports 4-Way NVIDIA® SLI® Technology1
Supports 4-Way AMD® CrossFire™ Technology1
Depends on the installed CPU.

STORAGE
Intel® X299 Chipset
8 x SATA 6Gb/s ports
1 x M.2 slots (Key M)1
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
Intel® Rapid Start Technology
Intel® Optane™ Memory Ready
1 x U.2 port, supports PCIe 3.0 x4 NVMe storage
Supports Intel® Smart Response Technology
Intel® CPU
2 x M.2 slots (M2_2 & M2_3, Key M)1
Support up to PCIe 3.0 x4, 2242/ 2260/ 2280/ 22110 storage devices1
M2_3 slot is unavailable with 28-lane CPU.

RAID
Intel® X299 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB
ASMedia® ASM3242 Chipset
1 x USB 3.2 Gen2x2 (SuperSpeed USB 20 Gbps) Type-C port on the back panel
ASMedia® ASM3142 Chipset
1 x USB 3.2 Gen2 (SuperSpeed USB 10 Gbps) Type-C port through the internal USB connectors)
ASMedia® ASM1074 Chipset
7 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Intel® X299 Chipset
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A through the internal USB connectors
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors)

AUDIO
Realtek® ALC1220 Codecs
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1 x Intel® I219-V Gigabit LAN controller
1 x Aquantia® AQC107 10-Gigabit LAN controller

WIRELESS
Intel® Wi-Fi 6 AX200
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth® 5.1
The Wireless module is pre-install in the M2_4 (Key-E)slot
Only support windows 10 64-bit

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
3 x 8-pin ATX 12V power connectors
1 x flat 4-pin ATX 12V power connector (Provides additional power for PCIe x16 slots)
8 x SATA 6Gb/s connectors
1 x U.2 port
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2 x USB 3.2 Gen1 connectors (support additional 4 USB 3.2 Gen1 ports)
1x USB 3.2 Gen2 Type-C Port
1 x 4-pin CPU fan connector
4 x 4-pin system fan connectors
2 x 4-pin extend system fan connectors
1 x 4-pin water-pump fan connector
1 x 3-pin Water Flow connector
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x 2-pin Thermal Sensors connector
1 x Thunderbolt Add-on Card Connector
1 x Virtual RAID on CPU connector
Provides additional power to PCIe x16 slots

BACK PANEL PORTS
Clear CMOS Button
Keyboard / Mouse
Gigabit LAN
10G LAN
Audio Connectors
Flash BIOS Button
Wireless / Bluetooth
USB 2.0
USB 3.2 Gen1 Type-A
USB 3.2 Gen2x2 20G Type-C
USB 3.2 Gen1 Type-A
Optical S/PDIF out
MSI creator x299 back panel ports

DIMENSIONS
12 in. x 10.7 in. (30.5 cm x 27.2 cm)
E-ATX Form Factor
