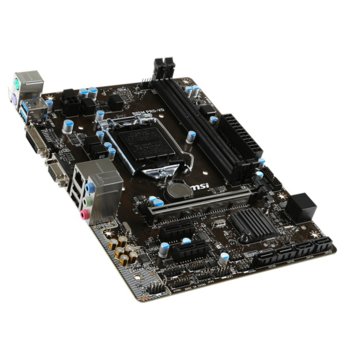

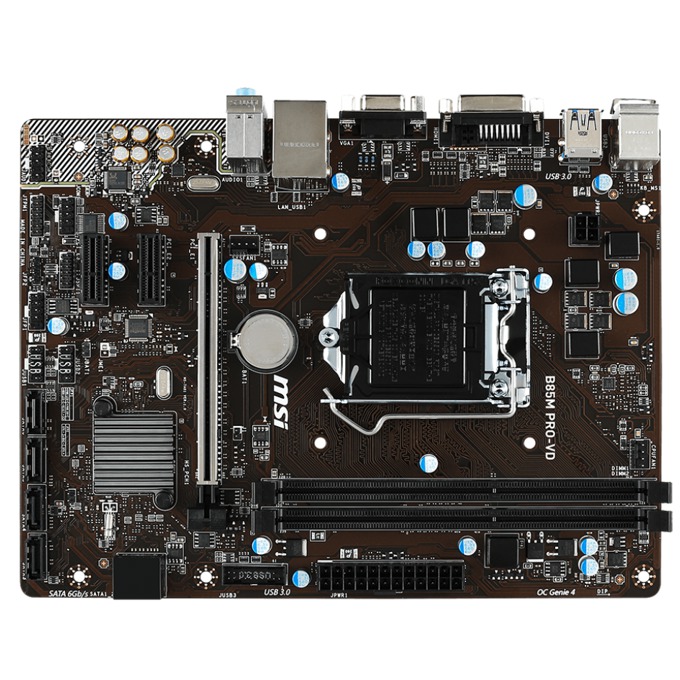

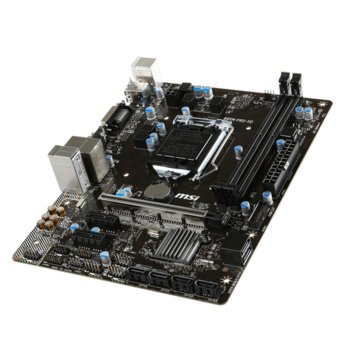

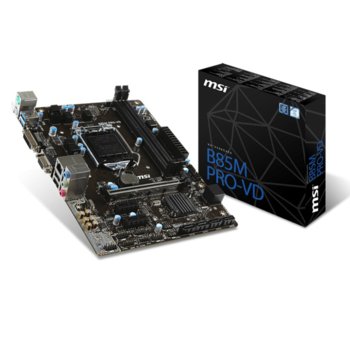

MSI B85M PRO VD
CPU
• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® B85 Express Chipset
Main Memory
• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
Slots
• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slot
Onboard Graphics
• 1 x VGA port, supporting a maximum resolution of 1920x1200@ 60Hz, 24bpp
• 1 x DVI-D port , supporting a maximum resolution of 1920x1200 @60Hz
On-Board SATA
• SATAIII controller integrated in Intel® B85 chipset
- Up to 6Gb/s transfer speed.
- Supports four SATAIII ports (SATA1~4) by B85
• SATAII controller integrated in Intel® B85 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA5~6) by B85
USB 3.1 (Gen1)
• Intel B85 Express Chipset
- 4x USB 3.1 (Gen1) ports on the back panel
- 6x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Audio
• Chip integrated by Realtek® ALC887
LAN
• Realtek® RTL8111G Gigabit LAN controller
Internal I/O Connectors
- 1x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 connector (supports additional 2 USB 3.1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 1 x Serial port connector
- 1 x TPM connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x VGA port
- 1 x DVI-D port
- 2 x USB 2.0 ports
- 2 x USB 3.1(Gen1) ports
- 1 x LAN (RJ45) port
- 3 x audio jacks
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 9.1 in. x 6.8 in. (23.1 cm x 17.3 cm) Micro-ATX Form Factor
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
CPU
• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® B85 Express Chipset
Main Memory
• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
Slots
• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slot
Onboard Graphics
• 1 x VGA port, supporting a maximum resolution of 1920x1200@ 60Hz, 24bpp
• 1 x DVI-D port , supporting a maximum resolution of 1920x1200 @60Hz
On-Board SATA
• SATAIII controller integrated in Intel® B85 chipset
- Up to 6Gb/s transfer speed.
- Supports four SATAIII ports (SATA1~4) by B85
• SATAII controller integrated in Intel® B85 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA5~6) by B85
USB 3.1 (Gen1)
• Intel B85 Express Chipset
- 4x USB 3.1 (Gen1) ports on the back panel
- 6x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Audio
• Chip integrated by Realtek® ALC887
LAN
• Realtek® RTL8111G Gigabit LAN controller
Internal I/O Connectors
- 1x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 connector (supports additional 2 USB 3.1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 1 x Serial port connector
- 1 x TPM connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x VGA port
- 1 x DVI-D port
- 2 x USB 2.0 ports
- 2 x USB 3.1(Gen1) ports
- 1 x LAN (RJ45) port
- 3 x audio jacks
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 9.1 in. x 6.8 in. (23.1 cm x 17.3 cm) Micro-ATX Form Factor
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1150 |
|---|---|
| Чипсет: | B85 |
| Поддържана памет: | DDR3 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DVI VGA (D-Sub) |
| Форм фактор: | Micro ATX |
