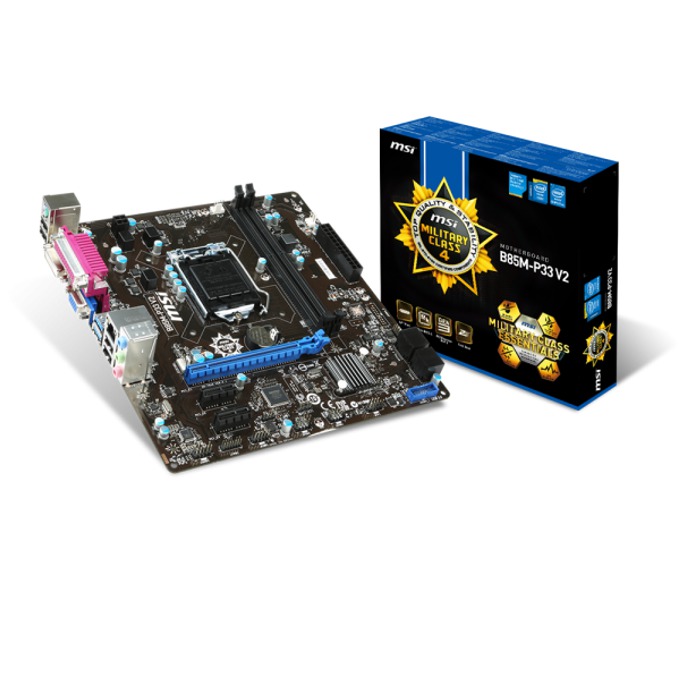

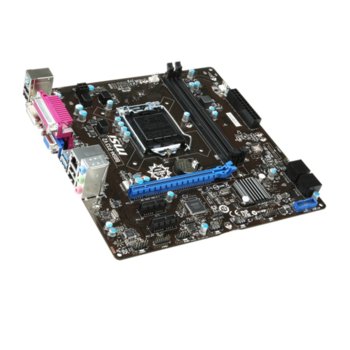

Дънна платка MSI B85M-P33 V2, B85, LGA1150, DDR3, PCI-E 3.0 (DVI), SB7.1, Lan1000, 2x SATA 6Gb/s, 2x USB3.0, Micro-ATX

MSI B85M-P33 V2

- Supports 4th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket
- Supports DDR3-1600 Memory
- USB 3.0 + SATA 6Gb/s
- Military Class 4: Top Quality & Stability
- Military Class Essentials: Total Protection for Military Class Motherboards
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand
- Command Center: Control & Customize Your PC Settings
- Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
- Super RAID: Easily Setup & Configure Intel® Technologies
- M-Flash: Simply Update & Backup Your BIOS
- Live Update 5: Easily Update The Latest BIOS & Drivers
- Intel® Small Business Advantage 2.0: Streamiline PC Maintenance & Security

CPU

• Supports 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® B85 Express

Main Memory

• Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600 DRAM, 16GB Max
• Supports Dual channel mode

Slots

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slot

On-Board SATA

• SATAIII controller integrated in Intel® B85 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII port (SATA1~2) by B85

• SATAII controller integrated in Intel® B85 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by B85

USB

• 4 x USB 3.0 ports by Intel® B85

Audio

• Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111G

Internal I/O Connectors

- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- 1 x Clear CMOS jumper
- 2 x SATAIII connectors
- 2 x SATAII connectors
- 1 x USB 3.0 connector
- 2 x USB 2.0 connectors
- 1 x Serial port connector
- 1 x Trusted Platform Module (TPM) header
- 1 x Front Panel Audio connector
- 1 x Chassis Intrusion connector

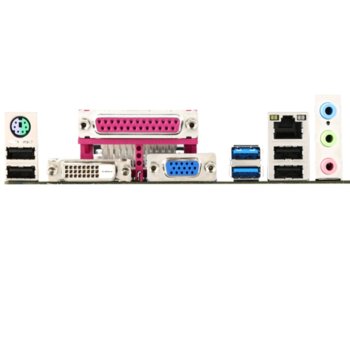

Back Panel I/O Ports

- 1 x PS/2 keyboard port / mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x parallel port
- 1 x 3 in 1 audio jack
- 1 x DVI-D port with max. resolution up to 1920x1200 @60Hz
- 1 x Graphic card port with max. resolution up to 1920x1200 @60Hz

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 228 x 226mm Micro-ATX Form Factor
