Дънна платка MSI B85-G43 GAMING, B85, LGA1150, DDR3, PCI-E 3.0 (HDMI&DVI)(CF), SB7.1, Lan1000, 4x SATA 6Gb/s, 2x USB3.0, ATX

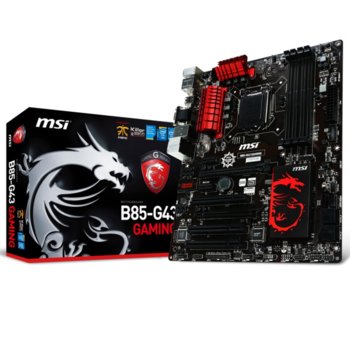

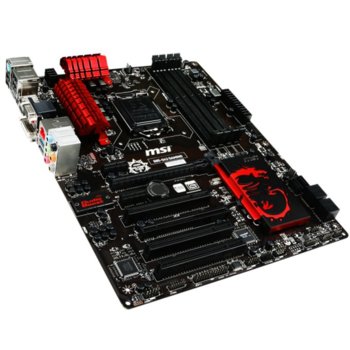

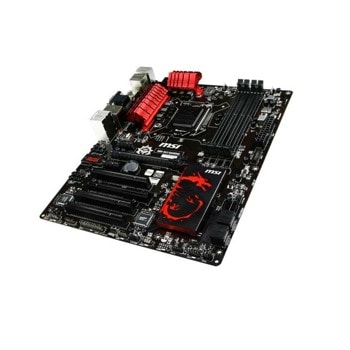

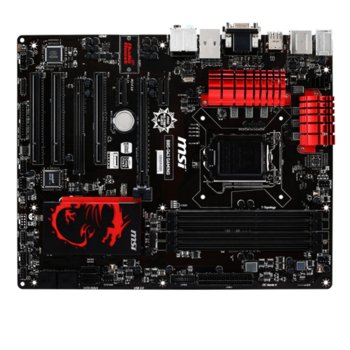

MSI B85-G43 GAMING

- Supports 4th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket
- Supports DDR3-1600 Memory
- USB 3.0 + SATA 6Gb/s
- Audio Boost: Reward Your Ears with True Quality
- Killer Ethernet: Kill Your Lag
- Military Class 4: Top Quality & Stability
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand
- Multi-GPU: AMD CrossFire Support
- Sound Blaster Cinema: Realistic Surround Sound Experience
- Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices
- Total Fan Control: Optimize All Fan Speed As You Wish

CPU

• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® B85 Express Chipset

Main Memory

• Support four DDR3 1066/1333/1600 MHz DRAM, 32GB Max
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
- Supports non-ECC, un-buffered memory

Slots

• 1 x PCIe 3.0 x16 slots, supports up to PCIe 3.0 x16 speed
• 1 x PCIe 2.0 x16 slot, supports up to PCIe 2.0 x4 speed
• 2 x PCIe 2.0 x1 slots
• 3 x PCI slots

On-Board SATA

• SATAIII controller integrated in Intel® B85 chipset
- 4x SATA 6Gb/s ports (SATA1~4)
- 2x SATA 3Gb/s ports (SATA5~6)

USB

• 4x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connector)
• 8x USB 2.0 ports (6 ports on the back panel, 2 ports available through the internal USB connectors)

Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio

LAN

• 1 x Killer E2205 Gigabit LAN controller*
* The Killer Network Manager is only available for Windows 7 and Windows 8 currently. The supported drivers for other operating systems would be available on the website if provided by vendor.

Multi-GPU

• Supports 2-Way AMD CrossFireTM Technology*
* Supports Windows 7 and Windows 8.

Internal I/O Connectors

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Trusted Platform Module (TPM) header
- 1 x Serial port connector
- 1 x Front Panel Audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper

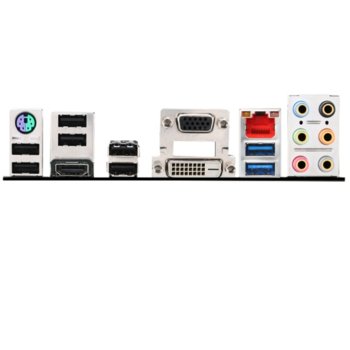

Back Panel I/O Ports

- 1 x PS/2 keyboard/mouse combo port
- 6 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN jack
- 6 x OFC audio jacks
- 1 x Graphics card port, supporting a maximum resolution of 1920x1200 @60Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 @24Hz, 24bpp/ 2560x1600@60Hz, 24bpp/1920x1080@60Hz, 36bp

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
