B560M-A PRO
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
.png)
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5200(OC) MHz

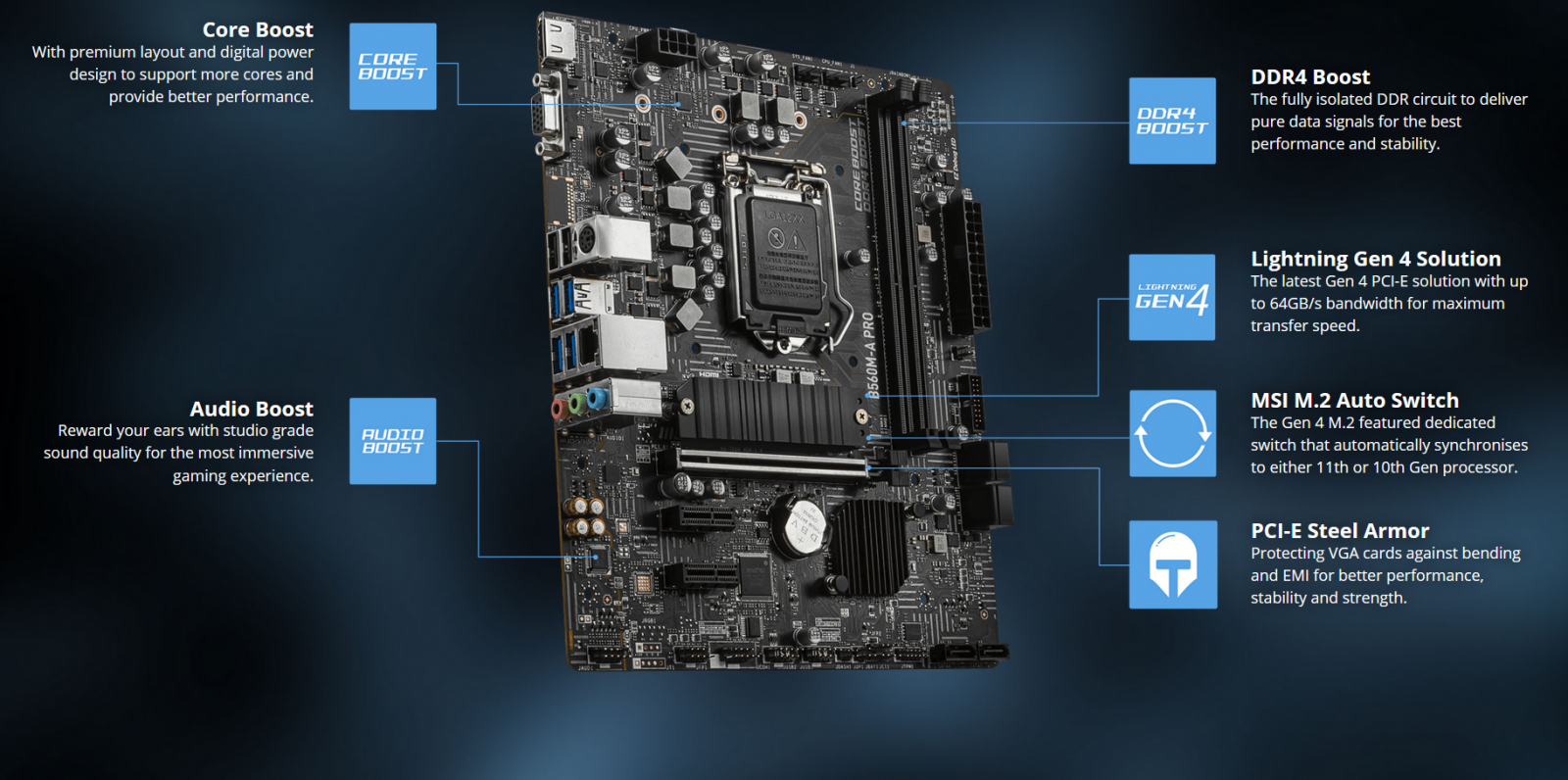

- Core Boost : With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost : Reward your ears with studio grade sound quality
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
- Socket - 1200
- Chipset - B560
- DDR4 Memory - 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz
- Memory Channel - Dual
- DIMM Slots - 2
- Max Memory (GB) - 64
- PCI-E x16 - 1
- PCI-E Gen - Gen4
- PCI-E x1 - 2
- SATAIII - 6
- M.2 Slot - 1
- TPM (header) - 1
- LAN - 1x Realtek® 8125B 2.5Gbps LAN controller
- USB 3.2 ports (Front) - 2(Gen 1, Type A)
- USB 3.2 ports (Rear) - 4(Gen 1, Type A)
- USB 2.0 ports (Front) - 4
- USB 2.0 ports (Rear) - 2
- Serial ports(Front) - 1
- Audio ports (Rear) - Realtek® ALC897 Codec
- VGA - 1
- HDMI - 1
- DirectX - 12
- Form Factor - MATX
- Operating System - Support for Windows® 10 64-bit
JAR Computers предлага голямо разнообразие от модели, които да разгледате и изберете най-подходящата за Вас дънна платка.
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
| Процесор сокет: | LGA 1200 |
|---|---|
| Чипсет: | B560 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI VGA (D-Sub) |
| Форм фактор: | Micro ATX |
