Дънна платка MSI B460M-A PRO, B460, LGA1200, PCI-E 3.0 (HDMI&DVI-D), 6x SATA3, 1x M.2, 6x USB 3.2 Gen 1, mATX

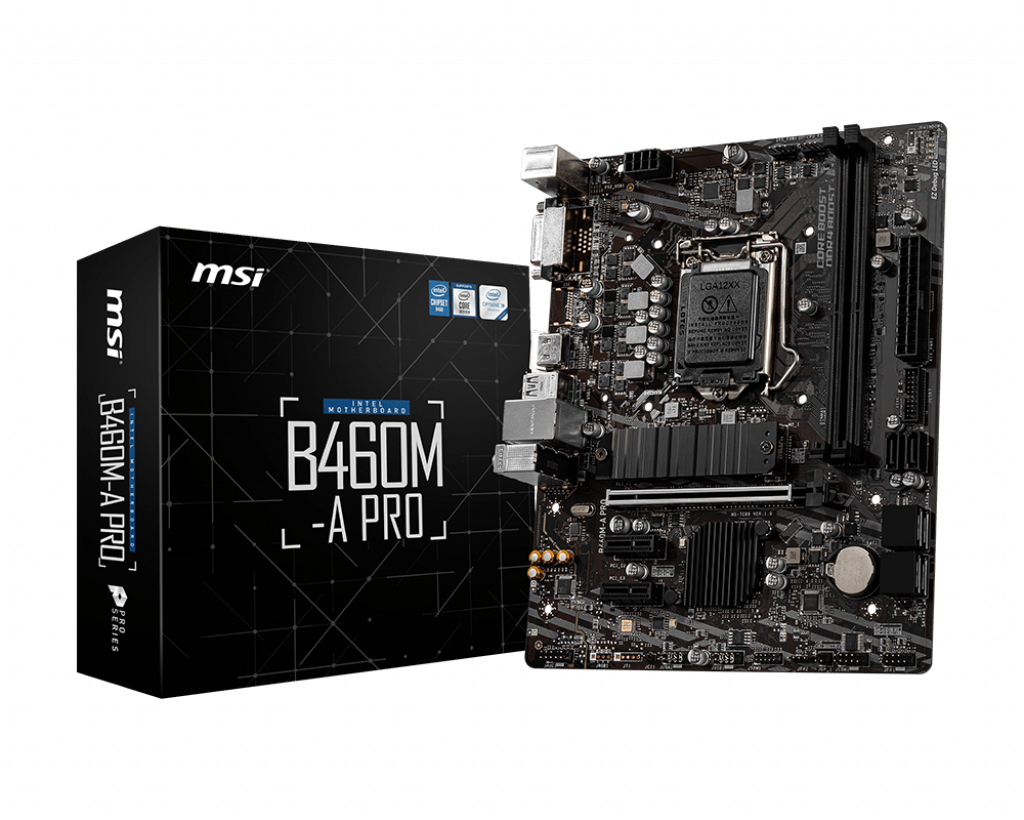

MSI B460M-A PRO

• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933(Max) MHz
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
• M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

CPU
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

CHIPSET
Intel® B460 chipset

MEMORY
2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT
1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots

ONBOARD GRAPHICS
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
* Maximum shared memory is 1GB

AUDIO

Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN

1x Realtek® 8111H Gigabit LAN controller

STORAGE
Intel® B460 Chipset
6x SATA 6Gb/s ports
1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1
Intel® Optane™ Memory Ready2
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA2 will be unavailable when installing M.2 SATA SSD in the M.2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® B460 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB
Intel® B460 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

FORM FACTOR
Miro-ATX Form Factor
9.3 in. x 7.6 in. (23.6 cm x 19.2 cm)

BIOS FEATURES
1x 128 Mb flash
UEFI AMI BIOS
Multi-language

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED

BACK PANEL CONNECTORS
USB 2.0 Type-A ports
LAN port
PS/2 keyboard/ mouse combo port
DVI-D port
HDMI port
USB 3.2 Gen1 5Gbps Type-A ports
USB 3.2 Gen1 5Gbps Type-A ports
Audio jacks
