Дънна платка MSI B365M PRO-VDH, B365, LGA1151, DDR4, PCI-E 3.0, (VGA&DVI-D&HDMI), 6x SATA 6Gb/s, 1x M.2 Socket, 8x USB 3.1 Gen1, Micro-ATX

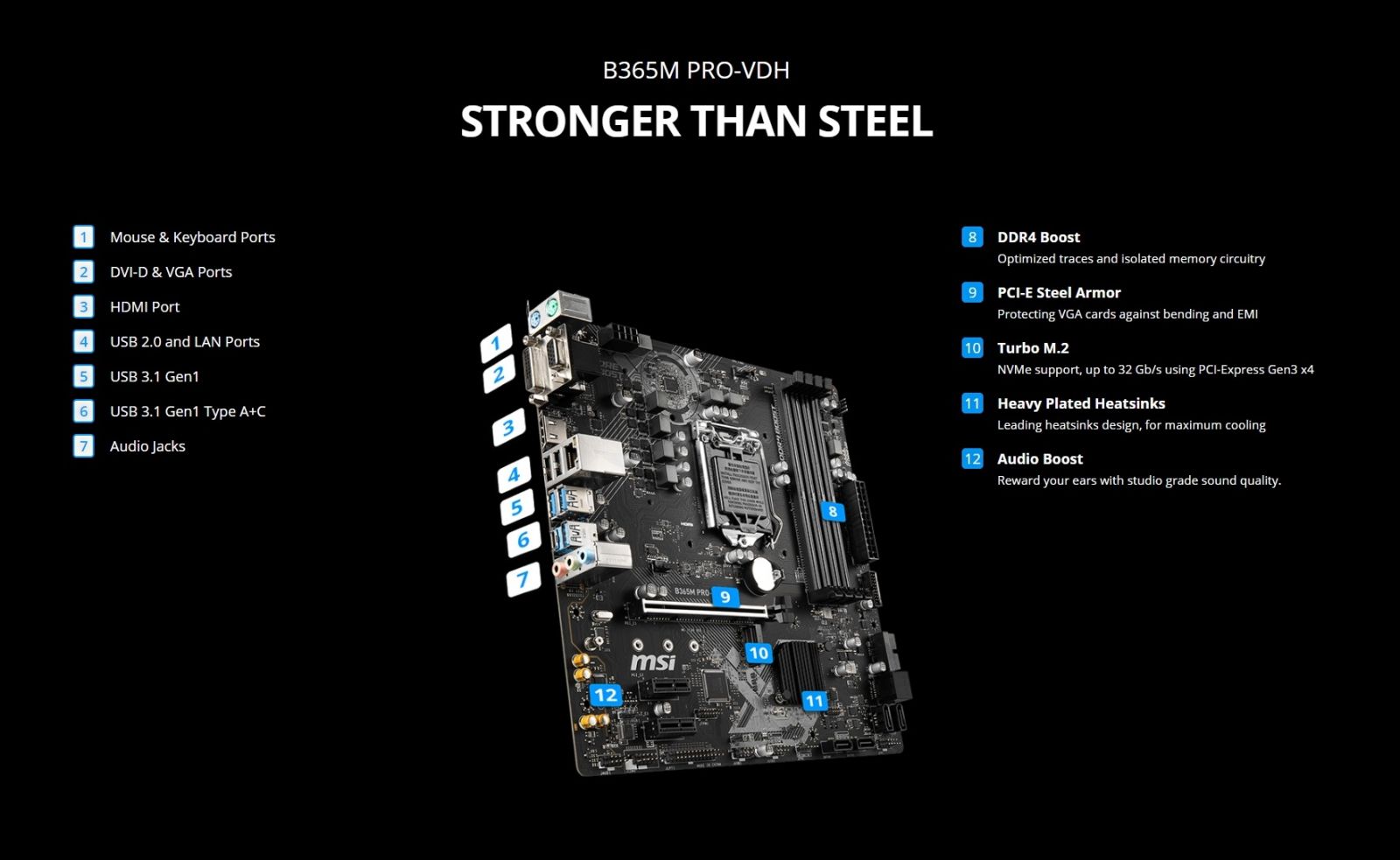

Intel LGA-1151 Micro-ATX motherboard with DDR4 2666MHz, Core Boost, DDR4 Boost, Audio Boost and EZ Debug LED

• Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

• Supports DDR4 Memory, up to 2666 MHz

• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

• Audio Boost: Reward your ears with studio grade sound quality.

• EZ Debug LED: Easiest way to troubleshoot.

• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

PROCESSOR
Supports  9th/8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

CHIPSET
Intel® B365 Chipset

MEMORY
4x DDR4 memory slots, support up to 64GB
Supports DDR4 2666/ 2400/ 2133 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer to Compatibility for more information on compatible memory
See supported memory

SLOTS
1 x PCIe 3.0 x16 slot
2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

STORAGE
Intel® B365 Chipset
6 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
Intel® Optane™ Memory Ready2
The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® B365 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB
Intel® B365 Chipset
8 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 4 ports available through the internal USB connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN
1 x Realtek RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connector (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
1 x Parallel port connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x 4-pin RGB LED connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper

DIMENSIONS
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Micro-ATX Form Factor

MOUNTING
8 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
