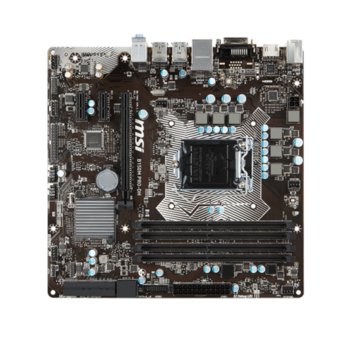

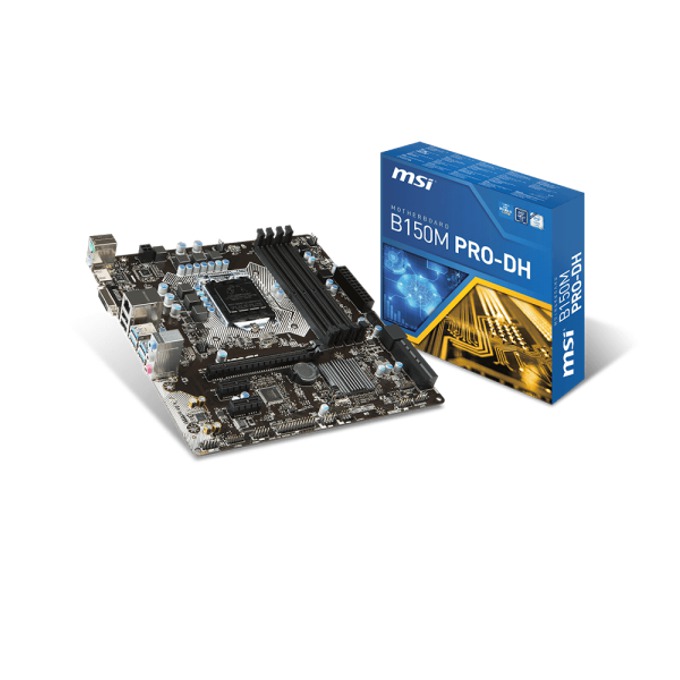

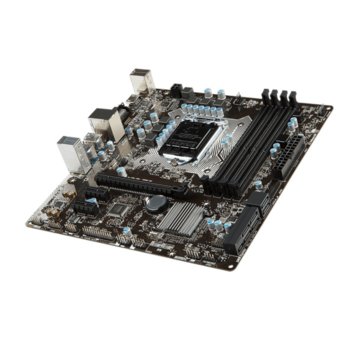

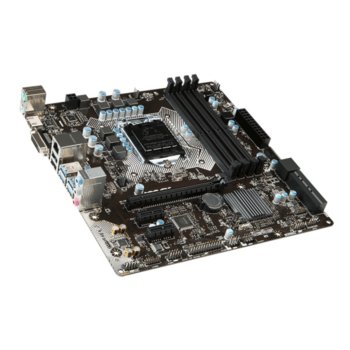

Дънна платка MSI B150M PRO-DH, B150, LGA1151, DDR4, PCI-E (HDMI&DVI), SB7.1, Lan1000, 6x SATA 6Gb/s, SATA Express, 4x USB 3.1, M-ATX

MSI
B150M PRO-DH

Specifications:

CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset

• Intel® B150 Chipset


Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs


Slots

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots


Onboard Graphics

• 1 x HDMI™ port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz


On-Board SATA

• Intel® B150 Chipset
- 6 x SATA 6Gb/s ports
- 1 x SATAe port (PCIe 3.0 x2)*
- Supports Intel® Smart Response Technology for Intel Core™ processors
* SATAe port is backward compatible with SATA.


USB

• Intel® B150 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)


Audio

• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio


LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

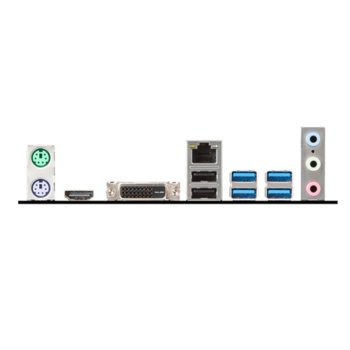

Back Panel I/O Ports

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x HDMI™ port
- 1 x DVI-D port
- 2 x USB 2.0 ports
- 4 x USB 3.1 Gen1 ports
- 1 x LAN (RJ45) port
- 3 x audio jacks


Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector


Dimension

• 9.3 in. x 9.0 in. (23.5 cm x 22.8 cm) M-ATX Form Factor


Mounting

• 6 mounting holes
