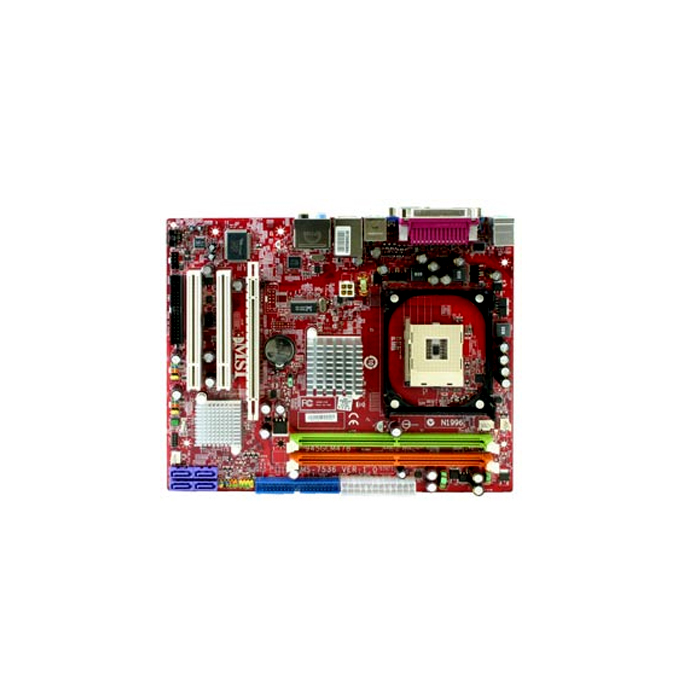

MSI MSI 945GCM478-L
CPU
• Supports Socket 478 for Intel® Pentium D/4, Celeron D processors.
• Supports FSB 800/533MHz
• Supports EIST technology
• Supports Intel® Hyper-Threading technology
For latest information on CPU support list, please check http://global.msi.com.tw/index.php?func=cpuform for more detail
Chipset
Intel® 945GC Chipset
• Integrated Intel® GMA 950 graphics core
Intel® ICH7 Chipset
• Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports
• 4 SATAII ports with transfer rate up to 3 Gb/s
• 1 channel Ultra ATA 100 bus Master IDE controller
• PCI Master v 2.3, I/O ACPI
• ACPI 2.0 compliant
Main Memory
• Supports 2 unbuffered DIMM of 1.8 Volt DDR2 SDRAM
• Supports dual channel DDR2 memory architecture
• Supports DDR2 533/667 memory interface (4GB Max)
Slots
• One PCI Express 16X slot
• Two 32-bit v2.3 master PCI bus slots (support 3.3v/5v PCI bus interface)
On-Board IDE/SATA
One Ultra DMA 66/100 IDE controller integrated in ICH7
• Supports PIO, Bus Master operation modes
• Can connect up to 2 Ultra ATA drives
SATAII controller integrated in ICH7
• Up to 3Gb/s transfer speed
• Can connect up to 4 SATAII devices
Audio
• Chip integrated by Realtek® ALC888
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia Rev 1.0 Spec.
LAN
• Supports 10 / 100 Mb/s Fast Ethernet by Realtek RTL8101E.
- Supports ACPI Power Management.
TPM
Supports TPM
On-Board Peripherals
• 2 x USB 2.0 connector support additional 4 ports
• 1 x Floppy disk drive connector
• 4 x Serial ATAII connectors
• 1 x ATA100 connector
• 1 x serial port pinheader
• Chassis intrusion switch connector
• Clear CMOS jumper
• TPM Module connector
• 1 x PS/2 keyboard
• 1 x PS/2 mouse
• 1 x 6 in 1or 3 in 1 audio jack (optional)
• 4 x USB 2.0 ports
• 1 x RJ45 LAN jack
BIOS
• The mainboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Dimensions
9.6 in (L) x 8.6 in (W); micro-ATX form factor
