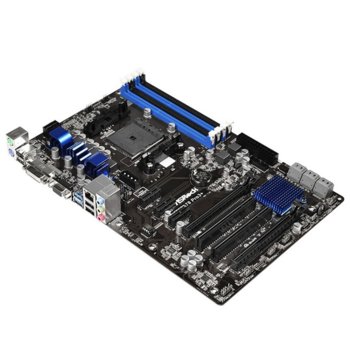

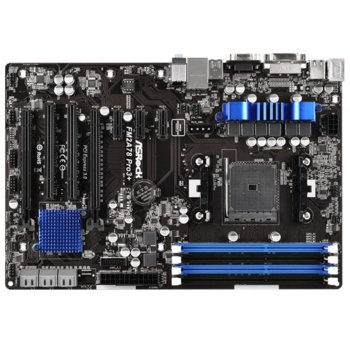

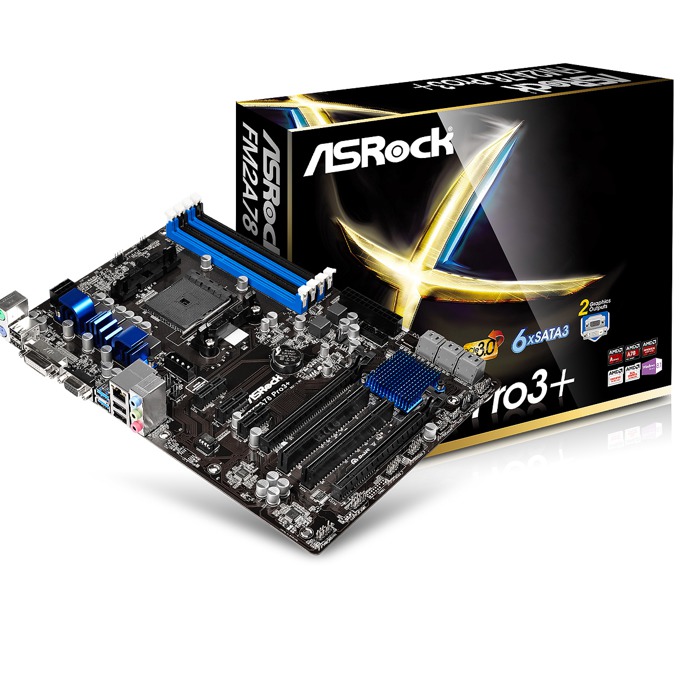

Дънна платка ASRock FM2A78 PRO3+, FM2+, A78 FCH (Bolton-D3), DDR3 2400+(OC), PCI-E (D-Sub, DVI-D), Lan1000, 6x SATA3, 4x USB 3.0, ATX

-CPU
Supports Socket FM2+ 95W / FM2 100W processors
4 + 2 Power Phase design

-Chipset
AMD A78 FCH (Bolton-D3)

-Memory
Dual Channel DDR3 Memory Technology
4 x DDR3 DIMM Slots
Supports DDR3 2400+(OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory
Max. capacity of system memory: 64GB
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Supports AMD Memory Profile (AMP) up to AMP 2400

-BIOS
64Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 1.1 Compliant wake up events
Supports jumperfree
SMBIOS 2.3.1 support
DRAM, CPU Voltage multi-adjustment

-Graphics
Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
Max. shared memory 2GB
Dual graphics output: support DVI-D and D-Sub by independent display controllers
Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
Supports HDCP with DVI-D Port
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

-Audio
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Supports Surge Protection (ASRock Full Spike Protection)

-LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111GR
Supports Wake-On-WAN
Supports Wake-On-LAN
Supports Lightning/ESD Protection (ASRock Full Spike Protection)
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

-Expansion Slots
1 x PCI Express 3.0 x16 Slot (PCIE4 @ x16 mode)
1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)
3 x PCI Express 2.0 x1 Slots
2 x PCI Slots
Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics

-Storage
6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug Connector

-Connector
1 x COM Port Header
1 x Power LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x PCIe Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.0 Header by AMD A78 FCH (Bolton-D3) (Supports 2 USB 3.0 ports)

-Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
4 x USB 2.0 Ports
2 x USB 3.0 Ports (AMD A78 FCH (Bolton-D3))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

-Form Factor
ATX Form Factor
All Solid Capacitor design
