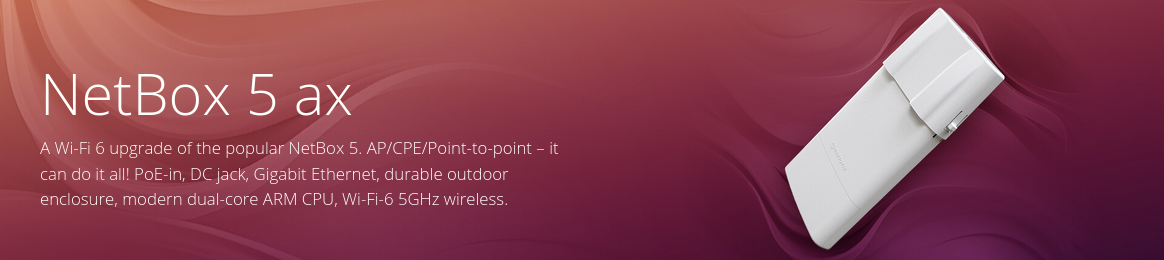

MikroTik L11UG-5HaxD-NB

NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy RP-SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers.*
This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.
We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.
If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
*It's important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.
Specifications
Details | |
---|---|
Architecture | ARM |
CPU | IPQ-5010 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
RouterOS license | 4 |
Operating System | RouterOS v7 |
Size of RAM | 256 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 15 W |
Max power consumption without attachments | 6 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 18-28 V |
Wireless specifications
Details | |
---|---|
Wireless 5 GHz Max data rate | 2400 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac/ax |
Wireless 5 GHz chip model | QCN-6102 |
Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
Peripherals
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1.5 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Beeper | Yes |
Виж още Аксеспойнт/Репитер Безжични MikroTik
Виж всички Аксеспойнт/Репитер Безжични в категорията
Тип: | Аксес пойнт |
---|---|
Монтаж: | За външен монтаж |
Безжична скорост: | 2400 Mbps |
Wi-Fi Стандарт: | Wi-Fi 6 (802.11ax) |
Честота: | 5 GHz |
Антени: | Не е указано |
dBi на антена/и: | Не е указано |
PoE: | In |
Интерфейс: | 1x 1000 |
Други: | Няма |
