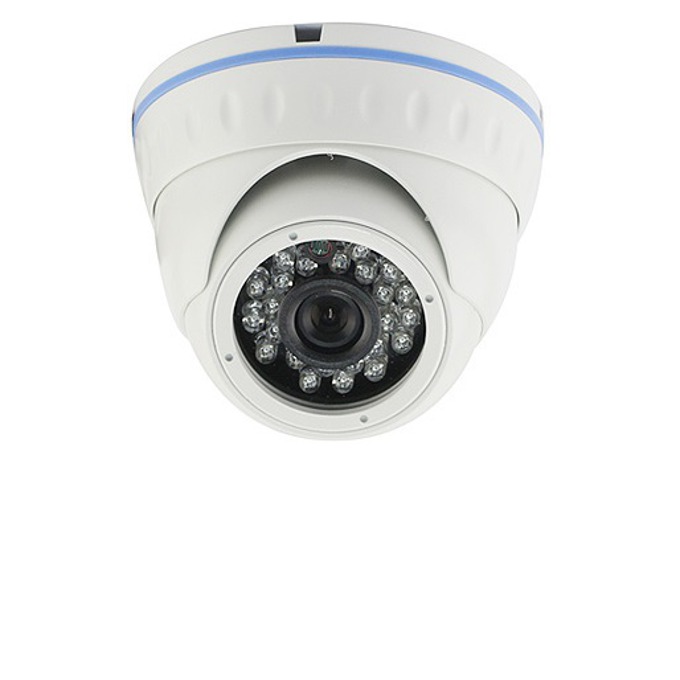

Longse LIRDNSHE, аналогова камера, 700TV Lines, 976x582, 30 FPS, външна, 3.6mm, IR подсветка (до 20м)

CCD/CMOS CCD
Image Sensor ICX811AK
DSP CXD4140AGG
Horizontal Resolution 700TV Lines
Effective Pixels 976(H)×582(V)
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec
Sync System Internal
Usable Illumination 0.001Lux/F2.0
S/N Ratio ≥52dB
Gamma Correction 0.45
Scanning System PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Video Output Composite Signal (1.0Vp-p, 75Ω)
Lens
Focus Length 3.6mm (2.8/4/6/8mm optional)
Focus Control Fixed
Lens Type Fixed
Pixels 2M Pixels
Auto Iris Support NO
Night Vision
Infrared LED ￠5X24PCS
Infrared Distance 20M
IR Status Under 10 Lux By CDS
IR Power On CDS Auto Control
Camera Features
Day/Night Color/ B&W
OSD Menu Language JP, ES, PT, RU CN, EN, FR, DE,
Defog NO
Sense-up NO
Smart-IR NO
Wide Dynamic Range DWDR
Backlight Compensation YES
White Balance AUTO
Gain Control AUTO
Noise Reduction 2D NR
Privacy Masking YES
Digital Zoom NO
Picture Adjustment YES
UTC Support YES
General
Vandalproof Housing YES
Lens Angle Adjustment YES
Dual Voltage NO
IR Cut Filter YES
Heater NO
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 500mA
Dimension ￠94 x 69(H)mm
Weight 450g NO
