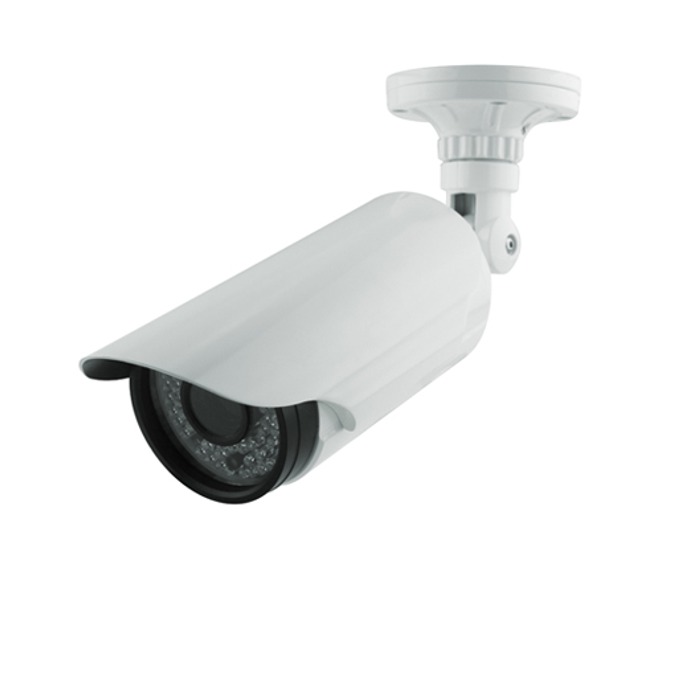

Longse LIN40SHE, аналогова камера, 700TV Lines, 976x582, 30 FPS, външна, 2.8-12mm, IR подсветка (до 40м)

Image Sensor ICX811AK
DSP CXD4140AGG
Horizontal Resolution 700TV Lines
Effective Pixels 976(H)×582(V)
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec
Sync System Internal
Usable Illumination 0.001Lux/F2.0
S/N Ratio ≥52dB
Gamma Correction 0.45
Scanning System PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Video Output Composite Signal (1.0Vp-p, 75Ω)
Lens
Focus Length 2.8-12mm (6-22mm optional)
Focus Control Manual
Lens Type Manual
Pixels 2M Pixels
Auto Iris Support NO
Night Vision
Infrared LED ￠5X42PCS
Infrared Distance 40M
IR Status Under 10 Lux By CDS
IR Power On CDS Auto Control
Camera Features
Day/Night Color/ B&W
OSD Menu Language JP, ES, PT, RU CN, EN, FR, DE,
Defog NO
Sense-up NO
Smart-IR YES
Wide Dynamic Range DWDR
Backlight Compensation YES
White Balance AUTO
Gain Control AUTO
Noise Reduction 2DNR
Privacy Masking YES
Digital Zoom YES NO
Picture Adjustment YES
UTC Support YES
General
Weatherproof Housing YES, IP66
Anti-cut Bracket YES, 3-Axis
Dual Voltage YES
IR Cut Filter YES
Heater YES
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 1000mA
Dimension 275(W) x 91(H) x 80(D)mm
Weight 1.4KG
