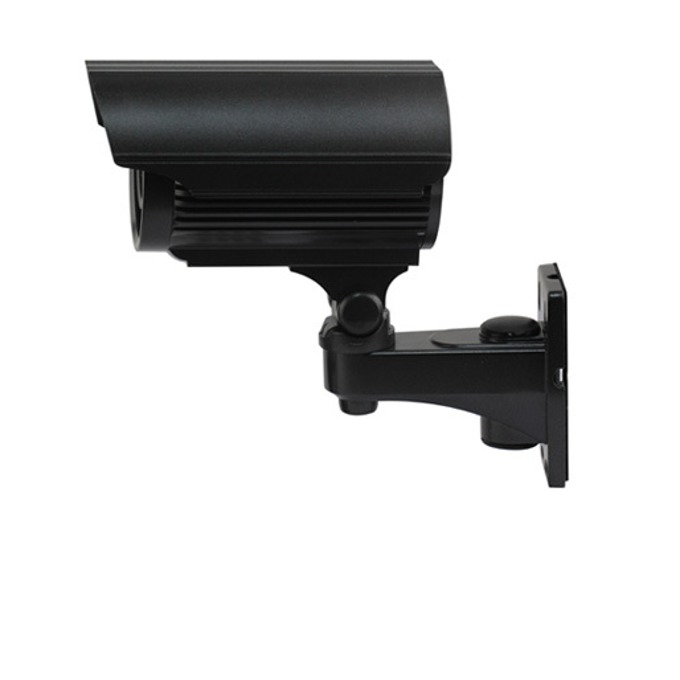

Longse LIA40ESM, аналогова камера, 800TV Lines, 960x480, 30 FPS, външна, 2.8-12mm, IR подсветка (до 40м)

CMOS
Image Sensor PC1099N
DSP FH8526
Horizontal Resolution 800TV Lines
Effective Pixels 960(H)×480(V)
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec
Sync System Internal
Usable Illumination 0.1Lux/F2.0
S/N Ratio ≥50dB
Gamma Correction 0.45
Scanning System PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Video Output Composite Signal (1.0Vp-p, 75Ω)
Lens
Focus Length 2.8-12mm (6-22mm optional)
Focus Control Manual
Lens Type Manual
Pixels 2M Pixels
Auto Iris Support NO
Night Vision
Infrared LED ￠5X42PCS
Infrared Distance 40M
IR Status Under 10 Lux By CDS
IR Power On CDS Auto Control
Camera Features
Day/Night Color/ B&W
OSD Menu Language NO
Defog NO
Sense-up NO
Smart-IR NO
Wide Dynamic Range NO
Backlight Compensation NO
White Balance AUTO
Gain Control AUTO
Noise Reduction NO
Privacy Masking NO
Digital Zoom NO
Picture Adjustment NO
UTC Support YES
General
Weatherproof Housing YES, IP66
Anti-cut Bracket YES, 2-Axis
Dual Voltage YES
IR Cut Filter YES
Heater YES
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%,700mA
Dimension 200(W) x171(H) x83(D)mm
Weight 1.4Kg
