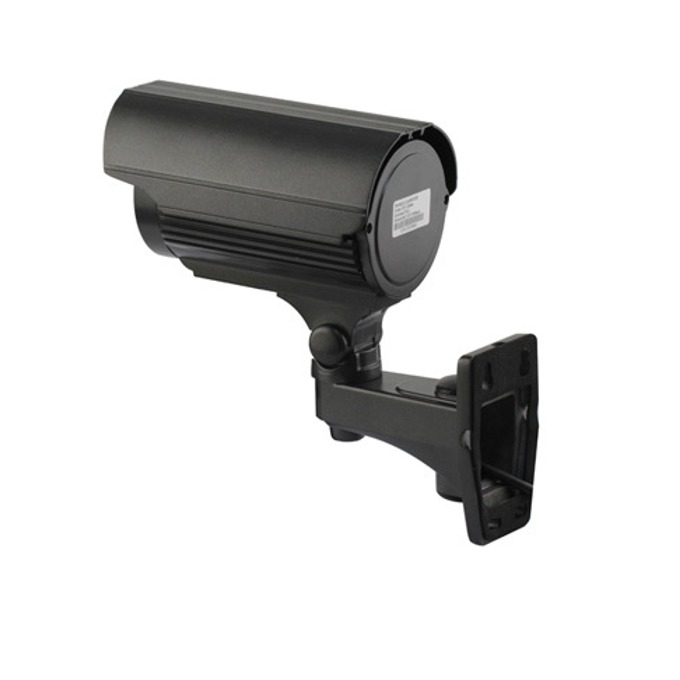

Longse LIA40EAD100V, AHD камера, 720P (960H Optional), 1280x720, 30 FPS, външна, 2.8-12mm, IR подсветка (до 40м)

Video Output Mode AHD (CVBS Optional)
Camera
Image Sensor OV9712S
Image Resolution 720P (960H Optional)
Effective Pixels 1.0MP, 1280x720
TV System PAL/NTSC
Electronic Shutter 1/25s~1/50,000s , 1/30s~1/60,000s
Sync System Internal
S/N Ratio ≥50dB
Scanning System Progressive Scan
Lens
Focus Length 2.8-12mm
Focus Control Manual
Lens Type Manual
Pixels 2M Pixels
Auto Iris Support NO
PTZ
Interface \ RS485
Protocol \ Pelco-D, Pelco-P
Baud Rate \ 2400~38400
Address \ 0~255
Night Vision
Infrared LED 14µ x 30PCS , (￠5 (12µ) x 42PCS Optional)
Infrared Distance 40M
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Camera Features
Day/Night Auto (ICR) / Color / B&W
OSD Menu Language YES
White Balance Auto/Manual
Gain Control Auto
Noise Reduction 3D NR
Picture Adjustment YES
WDR DWDR
OSD Support Optional
UTC Support Optional
General
Vandalproof Housing YES, IP66
Lens Angle Adjustment YES
Dual Voltage NO
IR Cut Filter YES
Heater NO
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 700mA
Dimension 200(W) x 171(H) x 83(D)mm
Weight 1.4KG
