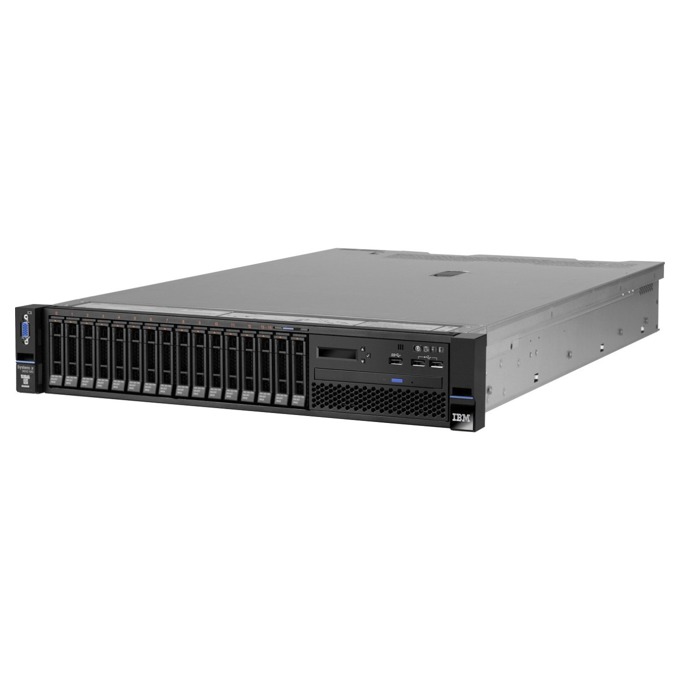

Сървър Lenovo x3650 M5 (5462E4G), шест-ядрен Intel Xeon E5-2620 v3 2.4GHz/3.2GHz, 8GB RAM RDDR4, Multiburner, Lan1000, 550W PSU

Lenovo x3650 M5
5462E4G

Form factor: 2U Rack

Description

Processor: Xeon E5-2620 v3 (85W)
Internal speed 2.4 GHz
External speed 8.0 GTS
Number cores 6
Number standard 1
Maximum 2
Cache (full-speed) 15 MB

Chipset: Intel C612

Memory
(PC4-17000-CL15 DDR4 2133MHz)
8 GB ECC 2133MHz RDIMM 1 x 8GB (2Rx4,1.2V)
DIMM sockets 24
Max. capacity 768 GB

Video SVGA
Memory 16 MB
HDD controller SAS/SATA
Channels 8
Connector internal 2
Connector external 0

RAID controller M5210

HDD open-bay 2.5" HS SAS/SATA
Total bays 19 (with upgrades)
5.25 slim 1
3.5-in tape 0
Hot-swap (3.5-in) 0
Hot-swap (2.5-in) 18 (with upgrades)
Internal capacity 28.8 TB (with SSD upgrades)

Bays available 8 standard
5.25 slim 0
3.5-in tape 0
Hot-swap (3.5-in) 0
Hot-swap (2.5-in) 8 standard

Maximum PCI Gen3 slots 9 (with upgrades)
PCI-E Gen3 x8 LP 1 standard
PCI-E Gen3 x16 LP 1 (with 2nd processor upgrade)
PCI-E Gen3 x8 FHFL 4 (with upgrades)
PCI-E Gen3 x8 FHHL 2 (with upgrades)
PCI-E Gen3 x8 LP 1 (slotless, for RAID card)

PCI-E Slots available 1 standard
PCI-E Gen3 x8 LP 1 standard
PCI-E Gen3 x16 LP 0
PCI-E Gen3 x8 FHFL 0
PCI-E Gen3 x8 FHHL 0
PCI-E Gen3 x8 LP 0 (slotless, for RAID card)

GPUs
Number standard 0
Maximum 0

System management iMM2 Standard (dedicated port)

Advanced LCD Lightpath standard

Ethernet controller 4x 1Gb standard
ML2 (via Riser card) optional

Ports
Front: 1x USB 3.0, 2x USB 2.0, and 1x DB-15 video.
Rear: 2x USB 3.0, 2x USB 2.0, 1x DB-15 video, 1x RJ-45 systems management, 4x RJ-45 GbE network ports.

Optical drive (SATA) Multiburner

Power supply 550 W
Number standard 1
Maximum 2
Hot-swap Yes
Redundant power Optional
Auto restart Yes
