| Category | Specification |
|---|---|
| General | |

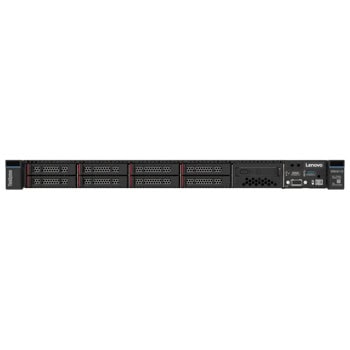

| Type | Server |
| Form Factor | Rack-mountable - 1U |
| Built-in Devices | 6 x performance fans |
| Embedded Security | TPM 2.0 Security Chip |
| Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localisation | EMEA |
| Processor / Chipset | |
| CPU | Intel Xeon Silver 4510 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 4.1 GHz |
| Cores | 12 |
| CPU Qty | 1 (Max 2) |
| Chipset Type | Intel C741 |
| Cache Memory | |
| Installed Size | 30 MB (L3 Cache) |
| Cache Per Processor | 30 MB |
| RAM | |
| Installed / Max Size | 32 GB / 8 TB |
| Technology | DDR5 SDRAM - ECC |
| Effective Speed | 2200 MHz |
| Rated Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (1 used, 31 empty) |
| Features | Registered, Memory Mirroring, slots 17–32 for dual-CPU config only |
| Configuration | 1 x 32 GB |
| Storage | |
| HDD | None |
| Bays | 8 x hot-swap 2.5" (free) |
| Storage Controller | |
| Type | 1 x RAID (PCIe 3.0 x8) |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Name | ThinkSystem RAID 9350-8i |
| Channel Qty | 8 |
| RAID Levels | 0, 1, 10, 5, 50, 6, 60, JBOD |
| Buffer Size | 2 GB |
| Optical Storage | No optical drive |
| Monitor | None |
| Graphics | |
| GPU | ASPEED AST2600 |
| Video Memory | 16 MB |
| Interfaces | VGA |
| Networking | |
| Remote Management | IPMI 2.0, SNMP 3 |
| Management Controller | XClarity Controller 2 (XCC2) Platinum |
| Connectivity | |
| USB Ports | 5 x USB 3.2 Gen 1 (1 front, 3 rear, 1 internal), 1 x USB 2.0 (front) |
| Other Ports | 1 x VGA (rear), 1 x RJ-45 (management) |
| Security | Chassis intrusion switch |
| Certifications | UL, IEC, FCC Class A, CSA, CISPR, VCCI, EN, KN, TP EAC, BIS, CQC, NOM-019, GB, GS, RoHS, HJ, EK1, AS/NZS |
| Power | |
| Power Supply | 1 x 1100W hot-plug (80 PLUS Titanium) |
| Redundancy | Optional (1+1 scheme) |
| Voltage | AC 100–240 V, 50/60 Hz |
| Max Supported PSU Qty | 2 |
| OS / Software | No operating system |
Виж още Сървъри Lenovo
Виж всички Сървъри в категорията
Технически характеристики
| Формфактор: | Rackmount |
|---|---|
| Марка процесор: | Intel |
| Брой процесори: | 1 |
| RAM памет: | 32 GB |
| Твърд диск: | Няма GB |
