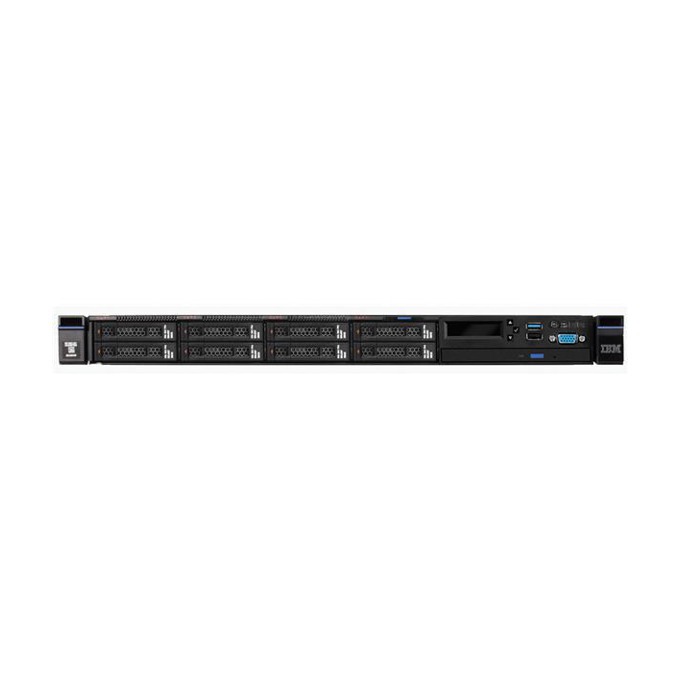

Сървър Lenovo x3550 M5 (5463K2G), шест-ядрен Intel Xeon E5-2620 v3 2.4GHz/3.2GHz, 16GB RAM RDDR4, Multiburner, Lan1000, 750W PSU

Lenovo x3550 M5
5463K2G

Form factor: 1U rack-mount

Processor: Xeon E5-2620 v3 (85W)

Internal speed: 2.4 GHz
External speed: 8.0 GTS
Number cores: 6
Number standard: 1
Maximum: 2
Cache (full-speed): 15 MB

Chipset: Intel® C612 Chipset

Memory:
(PC4-17000-CL15 DDR4 2133MHz)

16 GB ECC 2133MHz RDIMM: 1 x 16GB (2Rx4,1.2V)
DIMM sockets: 24
Maximum capacity: 1.5 TB

Video: SVGA
Memory: 16 MB

HDD controller: SAS/SATA
Channels: 8
Connector internal: 2
Connector external: 0

RAID controller: M5210 + 2GB Flash

HDD (12): open-bay 2.5" HS SAS/SATA

Total bays: 9
5.25 slim: 1
3.5-in tape: 0
Hot-swap (3.5-in): 0
Hot-swap (2.5-in): 8 (12)
Internal capacity: 12.8 TB (with upgrade)

Bays available: 8 standard
5.25 slim: 0
3.5-in tape: 0
Hot-swap (3.5-in): 0
Hot-swap (2.5-in): 8 standard

Maximum PCI Gen3 slots: 4 (with upgrades)
PCI-E Gen3 x8 LP: 1 (slotless for RAID card)
PCI-E Gen3 x16 HHHL LP: 1 standard
PCI-E Gen3 x8 HHHL LP: 1 (with single processor & upgrade)
OR
PCI-E Gen3 x16 LP: 1 (with 2nd processor & upgrade)

PCI-E Slots available: 1 standard
PCI-E Gen3 x8 LP: 0 (slotless for RAID card)
PCI-E Gen3 x16 HHHL LP: 1 standard
PCI-E Gen3 x8 HHHL LP: 0

GPUs:
Number standard: 0
Maximum: 0

System management: Standard (dedicated port)

Advanced LCD Lightpath: Standard

Ethernet controller: 4x 1Gb standard
ML2 (via Riser card): optional

USB ports: 6 (two front, four back)

Optical drive (SATA): Multiburner

Power supply: 750 W
Number standard: 1
Maximum: 2
Hot-swap: Yes
Redundant power: Optional
Auto restart: Yes
