Lenovo ThinkServer TS140 (70A5001REU), четири-ядрен Xeon E3-1226 v3 3.3/3.7GHz, 4 GB ECC, LAN Intel 10/100/1000, 8 x USB Ports, 2x DP, 1x VGA, 1x RS232

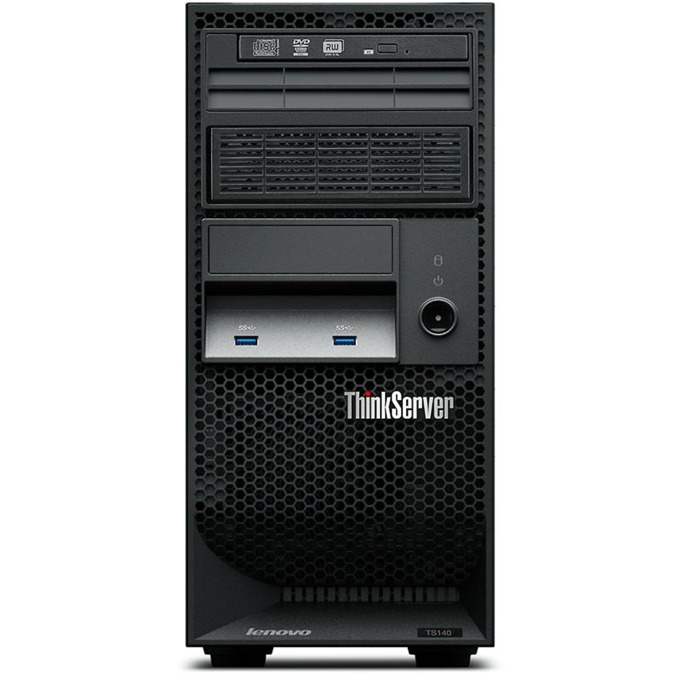

Lenovo ThinkServer TS140 (70A5001REU)

Процесор
Intel Xeon E3-1226 v3 (3.3GHz, 8MB L3 Cache, 1600MHz)

Памет
1x4GB DDR3-1600 ECC uDIMM, 4x 240-pin DIMM sockets, Up to 32GB (8GBx4)

Твърд диск
up to 4x 3.5" hot-swap SAS/SATA HDDs

Дисков контролер
Onboard ThinkServer RAID 100 SATA controller in chipset, SATA 6.0Gb/s, RAID 100 0/1/10/5 support

Оптично устройство
DVD±RW

Мрежа
One onboard gigabit ethernet, Intel I217

Разширителен порт
Slot 1: half-length, full-height, PCIe 3.0 x16 (near CPU),
Slot 2: half-length, full-height, PCIe 2.0 x1,
Slot 3: half-length, full-height, PCIe 2.0 x16 (x4 elec),
Slot 4: half-length, full-height, PCI 2.3

Интерфейс
Front ports: 2x USB 3.0 (blue),
Rear: 1x VGA and 2x Display Port (for models with Intel HD Graphics), 2x USB 2.0, 4x USB 3.0 (blue), 1x serial (9-pin), 1x ethernet (RJ-45), 3x analog audio ports (line-in, line-out, mic-in)

Захранване
450W 92% Fixed PSU

Съвместими операционни системи
Supported: Windows 7/8/Server 2008 R2/Small Business Server 2011

Форм-фактор
Tower

Други
Integrated Intel HD Graphics;
Intel Active Management Technology 9 (provides remote KVM access)
