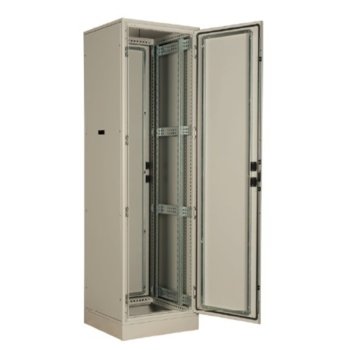

GENERAL CHARACTERISTICS:
Different sizes for:
Heights (mm) : 1200 / 1600 / 1800 / 2000
Widths (mm) : 400 / 600 / 700 / 800 / 1000
Depths (mm) : 400 / 500 / 600 / 800 / 1000 / 1200
*Max. Loading capacity 1500 kg.
- Closed section profile has high moment of inertia on X & Y axis to gain extra
strength.
- Profiles produced with DIN EN10142-2000 DX51 D+Z material and has
high resistance against corrosion.
- Single-type profile section for all width-depth- height directions.
- New Aluminium structure corners provides easy assembly to establish enclosure
frame in minutes
- Aluminium corner part produced from E-160 material with Aluminium injection
moulding method which creates ultra resistance against corrosion.
- Cross rails have easy to fix system.( Single screw & snap-in )
- Electro-assembled Mounting plate can be slided on strong profiles to easy
assembly.
- IP55 Protection level against dust & water ingress as per IEC EN60529
- IK10 Mechanical impact resistance as per IEC EN62262.
- Metal enclosures painted 70-90µ thickness RAL 7035 fine wrinkle with
Nanotechnology to obtain upto 500 hours of salt spray test resistance.
- Reversible door structure with up to4 pcs of Zamak Hinges and 4-points locking
system.
- Poly-urethane seal on door.
- EMKA branded high quality locks
- Flatpackage option is available for less transportation costs.
12 месеца за юридически, 24 месеца за физически лица
Виж още Мрежови шкафове Lande
Виж всички Мрежови шкафове в категорията
Different sizes for:
Heights (mm) : 1200 / 1600 / 1800 / 2000
Widths (mm) : 400 / 600 / 700 / 800 / 1000
Depths (mm) : 400 / 500 / 600 / 800 / 1000 / 1200
*Max. Loading capacity 1500 kg.
- Closed section profile has high moment of inertia on X & Y axis to gain extra
strength.
- Profiles produced with DIN EN10142-2000 DX51 D+Z material and has
high resistance against corrosion.
- Single-type profile section for all width-depth- height directions.
- New Aluminium structure corners provides easy assembly to establish enclosure
frame in minutes
- Aluminium corner part produced from E-160 material with Aluminium injection
moulding method which creates ultra resistance against corrosion.
- Cross rails have easy to fix system.( Single screw & snap-in )
- Electro-assembled Mounting plate can be slided on strong profiles to easy
assembly.
- IP55 Protection level against dust & water ingress as per IEC EN60529
- IK10 Mechanical impact resistance as per IEC EN62262.
- Metal enclosures painted 70-90µ thickness RAL 7035 fine wrinkle with
Nanotechnology to obtain upto 500 hours of salt spray test resistance.
- Reversible door structure with up to4 pcs of Zamak Hinges and 4-points locking
system.
- Poly-urethane seal on door.
- EMKA branded high quality locks
- Flatpackage option is available for less transportation costs.
12 месеца за юридически, 24 месеца за физически лица
Виж още Мрежови шкафове Lande
Виж всички Мрежови шкафове в категорията
Технически характеристики
| Височина: | 42U Unit |
|---|---|
| Дълбочина: | 600 mm |
