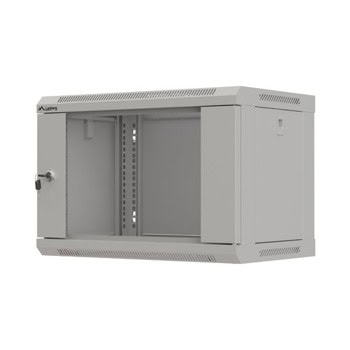

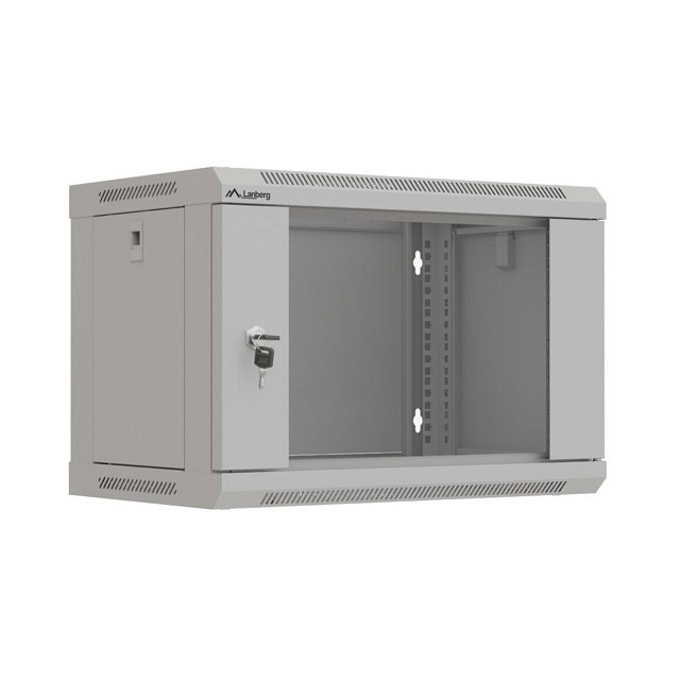

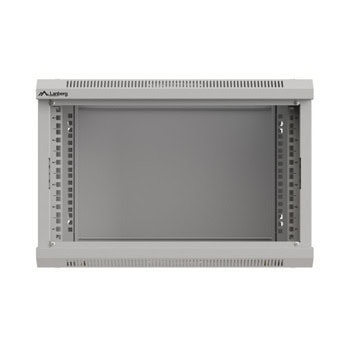

Комуникационен шкаф Lanberg WF03-5306-10S, 19", 6U, 37 x 35 x 54 cm, товароносимост до 60кг, сив

Simple, convenient installation:

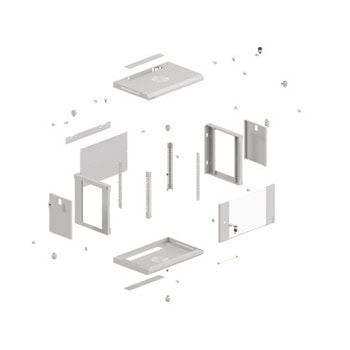

Assembly of the new WF03 wall-mounted cabinet from Lanberg has been designed with user comfort in mind. Clear paper instructions, an additional video version and an included set of M6 screws ensure an intuitive and quick assembly process - whether you are assembling the equipment in a professional server room or a home workshop. This allows you to get straight to organizing the interior of your ICT cabinet and make the installation best suited to your needs.


Durable RACK cabinet designed to last for years:
WF03 cabinets are a highly resistant product. They are made of high-quality materials, including cold-rolled steel with a thickness of at least 1 mm (for the top and bottom panels) and 1.2 mm (for the frame), which translates into reliability and stability of the structure. The maximum load capacity is as high as 60 kg while keeping the cabinet's own weight low (about 10 kg).

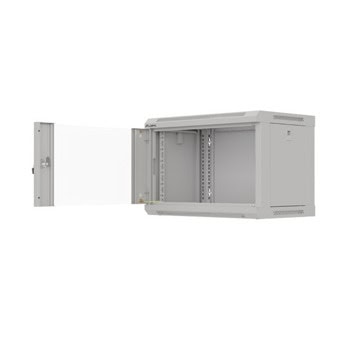

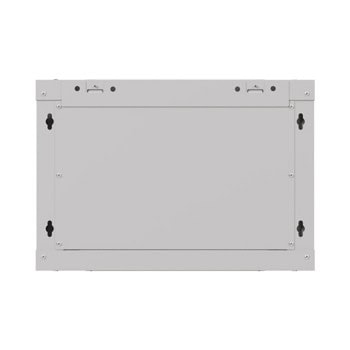

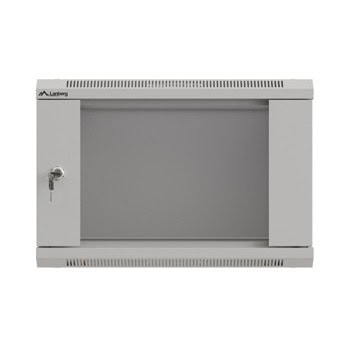

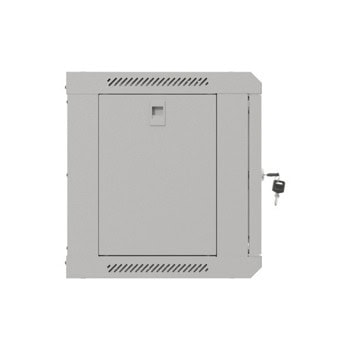

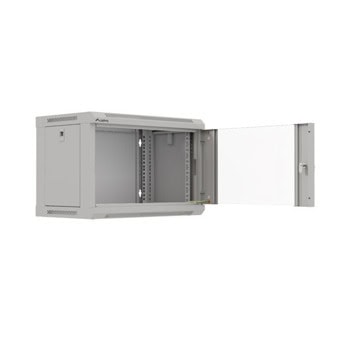

Glazed doors on the front and access from the sides and rear of the cabinet through removable side panels and a removable back panel mean both high functionality and protection of equipment from accidental shutdown or damage. In addition, it is possible to mount the cabinet directly on the wall (through holes in the frame) or with the help of a special strip, which greatly facilitates installation in various conditions.


Excellent ventilation and room for a fan:

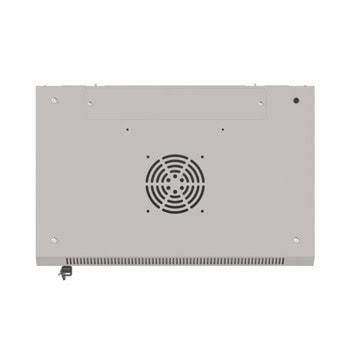

To ensure adequate airflow, there are ventilation holes in the top and bottom panels. In addition, the cabinet has a special place for mounting a 120×120 mm fan, which significantly improves air circulation and reduces the risk of overheating equipment. Thanks to this, WF03 cabinets ensure optimal working conditions for the equipment installed in them and their long service life.


Specifications

Type of cabinet
Wall mount

Size
19"

ICT height
6 U

Assembly type
Self-assembly

Working depth
305 mm

Front door type
Temper glass

Door type
Single-leaf

Maximum front door opening angle
220 °

Maximum static load
60 kg

Slot amount for fans
2

Number of vertical rails
4

Colour
Gray

RAL color
RAL7035

Weatherproof rating
IP20

Front door thickness
5 mm

Upper & lower panel thickness
1 mm

Side panel thickness
1 mm

Mounting rails thickness
1.5 mm

Frame thickness
1.2 mm

Other elements sheet thickness
1 mm

Depth
350 mm

Width
540 mm

Height
370 mm

Weight
11.3 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

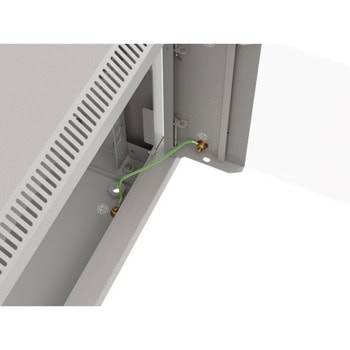

Grounding Details
Bottom panel, Front door
