Докинг станция j5create JCD403, от USB-C към 1x USB-C (PD), 1x USB-C, 2x USB-A, 1x HDMI (8K@60Hz), 1x RJ45, сребриста

j5create JCD403

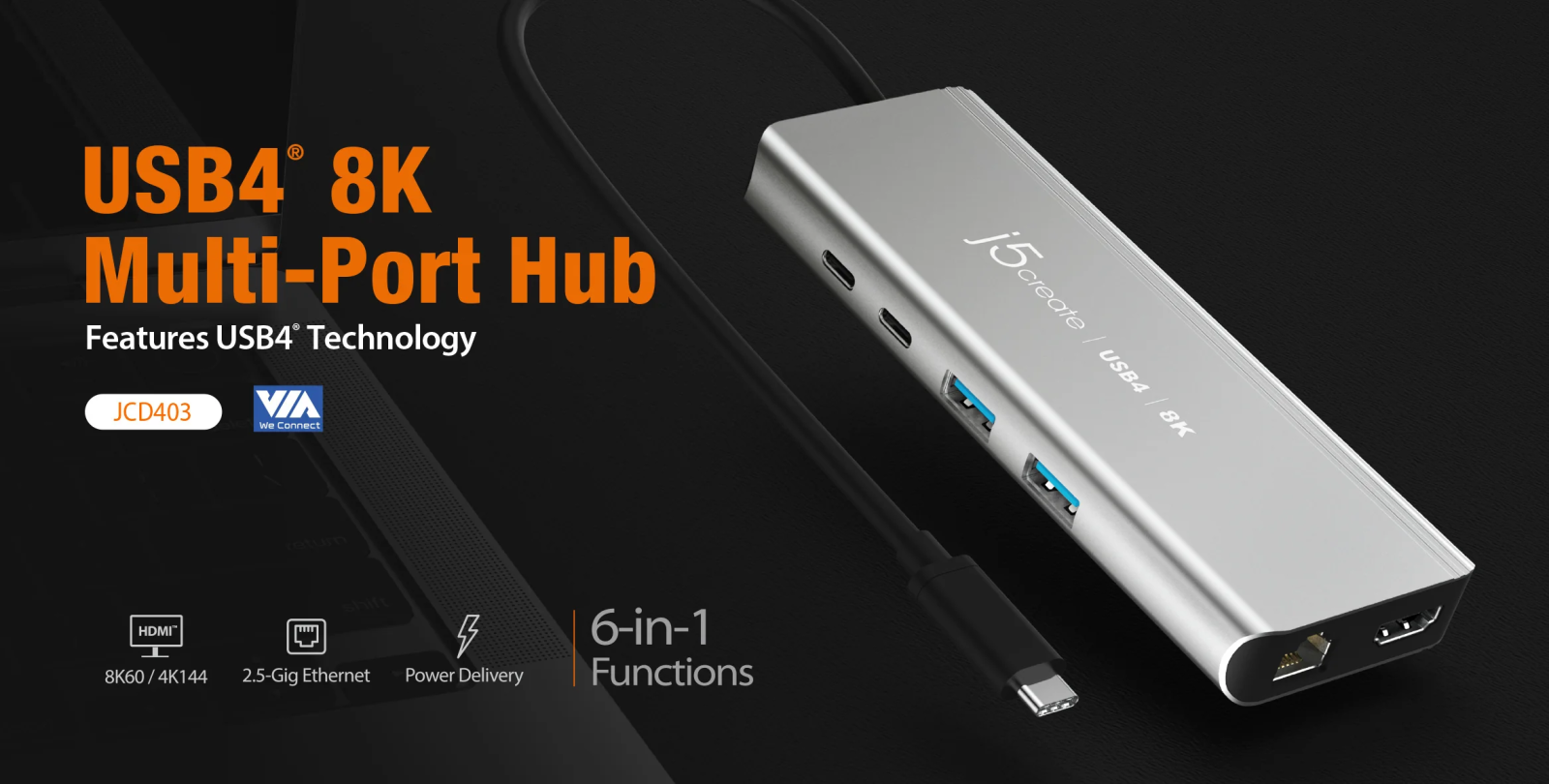

This high-performance USB4® multi-port hub incorporates the latest USB4 controller offering compatibility with Thunderbolt 4 and older USB specifications.

With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB SuperSpeed+ 10Gbps ports (1 USB-C and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.









Features USB4 Technology

Provides extremely fast 40Gbps data transfer rates. Excellent for Thunderbolt 3, Thunderbolt 4, and USB4 computers









Multiple Connectivity Options For Greater Efficiency

Add the ports missing from your laptop so you can connect your desired devices

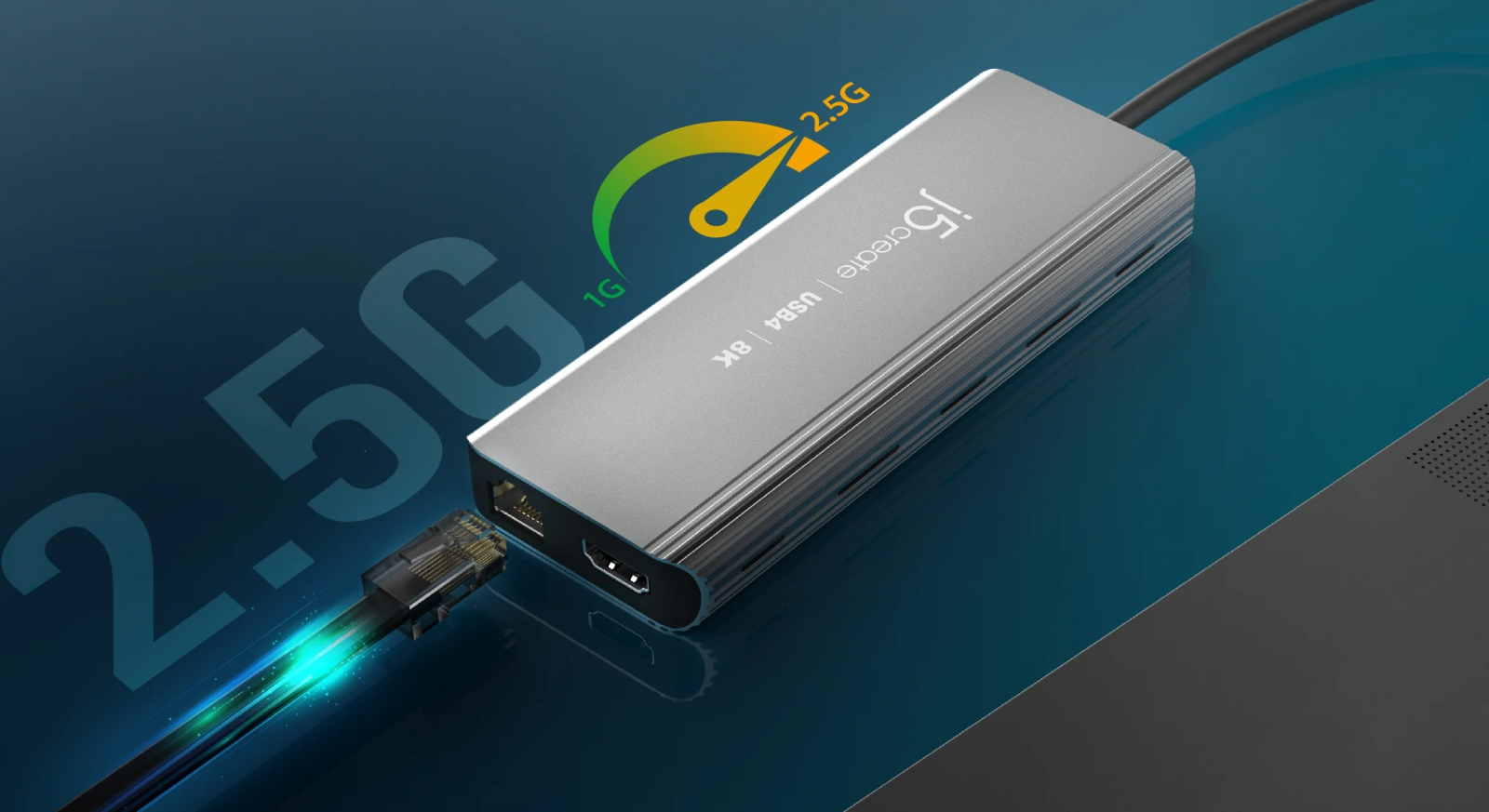

Hyper-Fast 2.5 Multi-GIg Ethernet Port

Enjoy ultra-speed and reliable internet connection with up to 2.5Gbps







Tech specs:

Hardware
Host Connector	1 - USB4 Male
Video Output	1 - HDMI Female
Power Source	Bus-powered or self-powered
Network Interface	Yes
Audio Supported	Yes

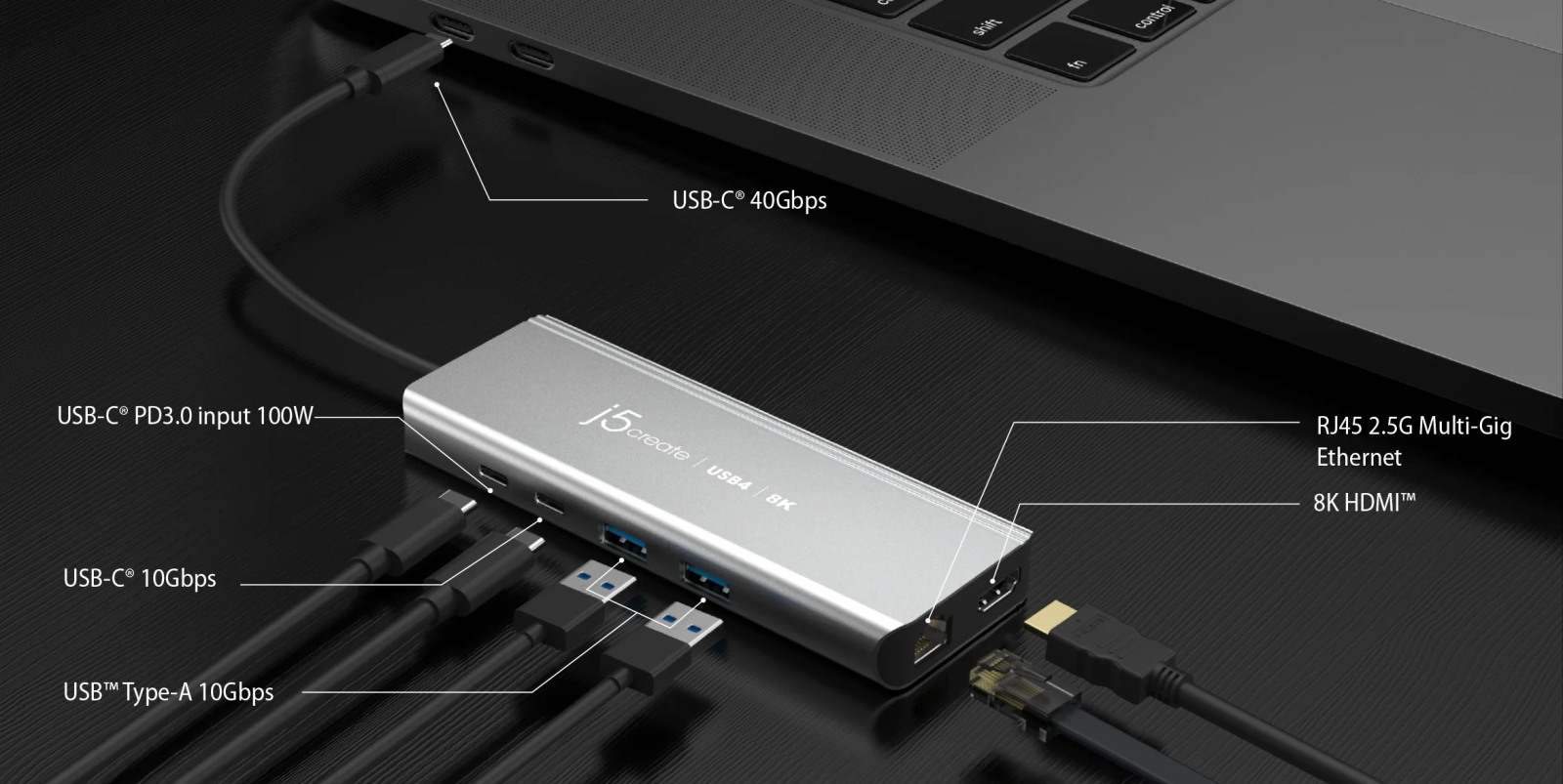

Ports	1- USB-C 3.2 Gen 2 10Gbps data transmission 1- USB-C power delivery 3.0 100W 2- USB Type-A 3.2 Gen 2 10Gbps data transmission 1- 8K HDMI 1- RJ45 2.5 Gigabit Ethernet
Performance
Maximum Display Resolution	7680 x 4320
Maximum Display Refresh Rate	60 Hz @ 3840 x 2160 144 Hz @ 3840 x 2160 (* Only for DSC host) 30 Hz @ 7680 x 4320 60 Hz @ 7680 x 4320 (* Only for DSC host)
Maximum Data Transfer Rate	10Gbps
Displays Supported	HDMI
Compatible Networks	10M/100M/1000M/2.5 Gigabit
Audio Channel	1 - 2.1 via HDMI
Power
Power Delivery	Up to 100W via USB-C
Power Consumption	≤ 900 mA
Input Current	Up to 5A
Input Voltage	Up to 20V
Output Current	Up to 4.75A
Output Voltage	Up to 20V
Physical Specifications
Color	Space Grey
Enclosure Type	Aluminum
Cable Length	200 mm
Product Height	135 mm
Product Width	51 mm
Product Depth	15 mm
Product Weight	109g
Storage Temperature	-17 to 68°C
