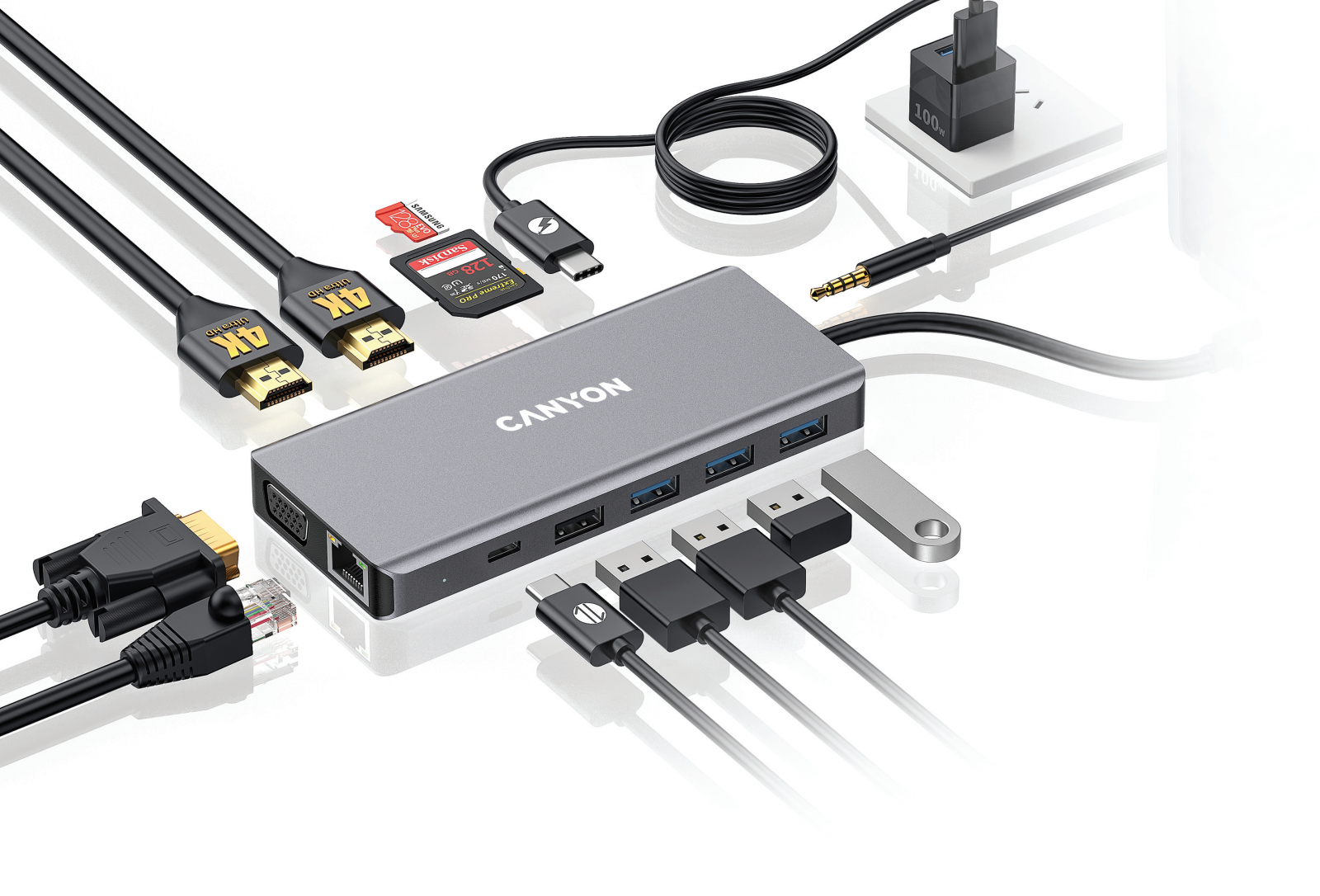

13 Port USB-C Hub
DS-12

The model DS-12 represents maximum functionality and flexibility in use. You can connect two monitors via HDMI ports or transmit a video signal via a VGA connector. Headphones and speakers are plugged in through a 3.5 mm mini-jack. Three USB-A 3.0 ports and one USB-A 2.0 port are provided to use all the necessary computer peripherals. Two conveniently located SD and Micro SD card reader slots allow you to transfer large amounts of data instantly. The up to 100W USB-C PD charging port automatically detects an optimal charging speed for a connected device. If necessary, you can connect to the web directly via Gigabit Ethernet. In addition to all of the above, the hub is compatible with Samsung DEX and Nintendo Switch. All this functionality is enclosed in a durable aluminum housing that suppresses interference in signal transmission. The device is “Plug and Play,” so you don’t need additional software to start using the hub. Increase the functionality of your device by connecting everything you need!

13 ports

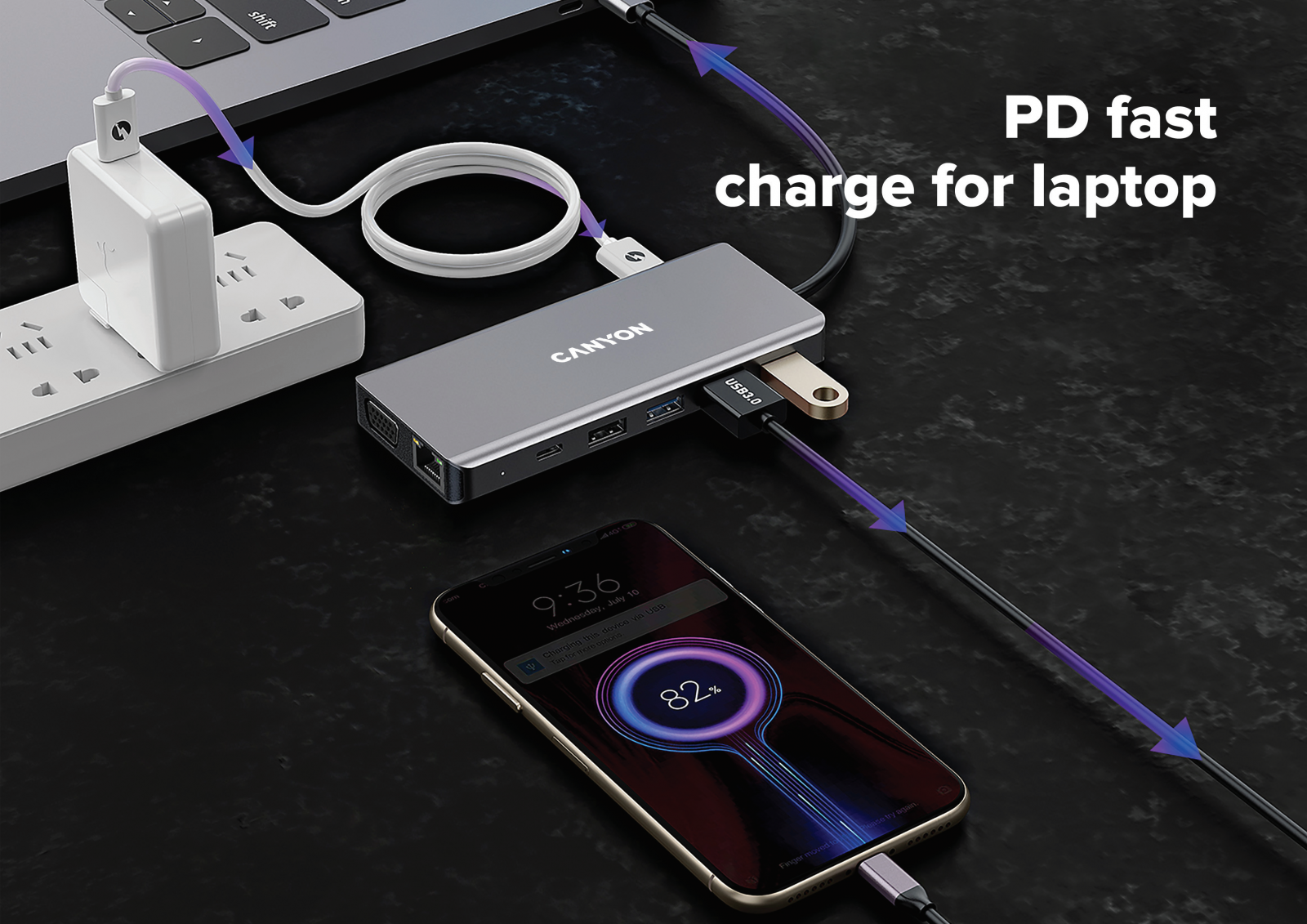

USB-C PD charging, 100W
Gigabit Ethernet

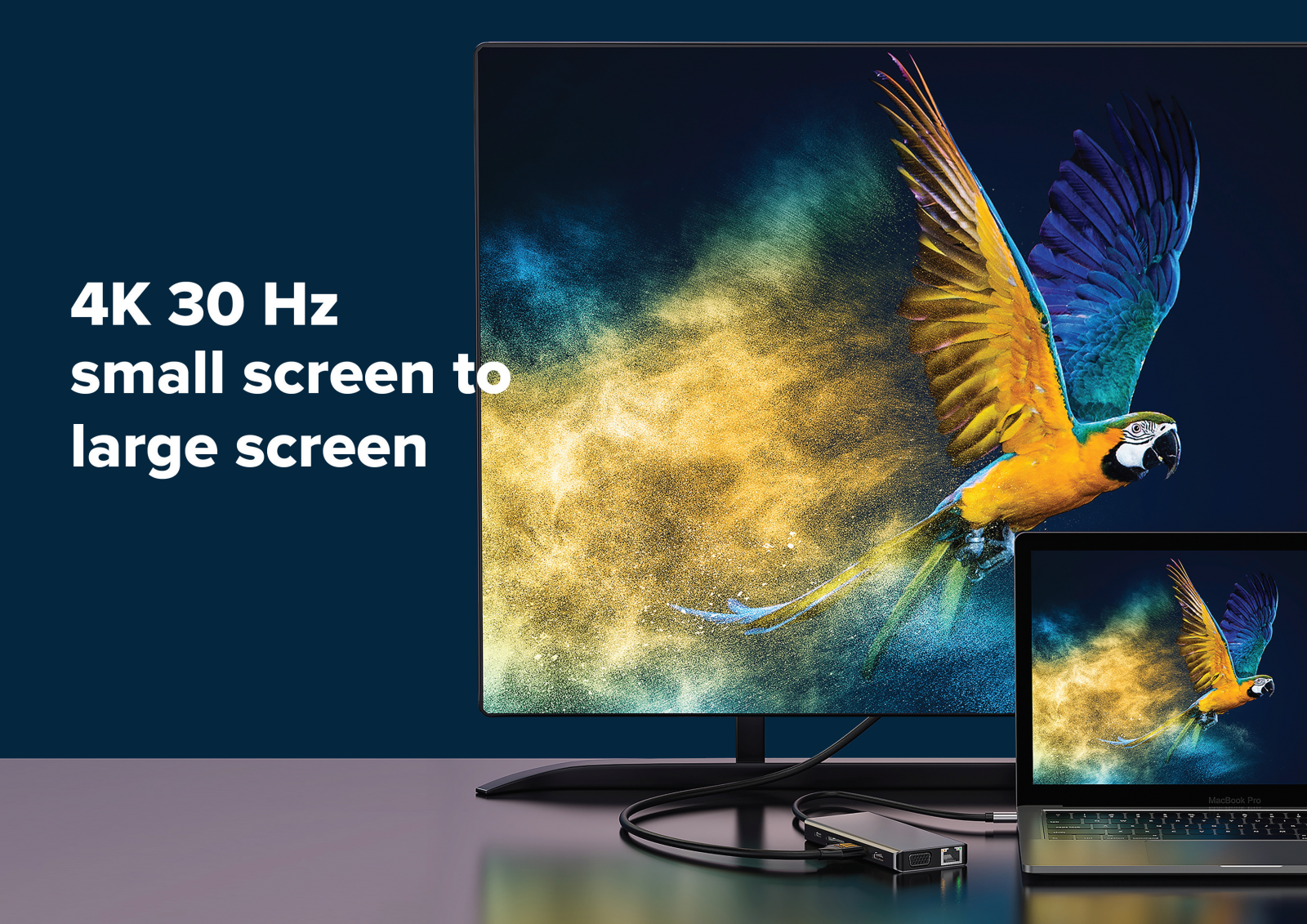

2 x 4K Ultra HD ports
Connects 2 monitors simultaneously
3 х USB-A 3.0
1 х USB-A 2.0
Audio 3.5 mm
USB-C data transfer
VGA data transmission

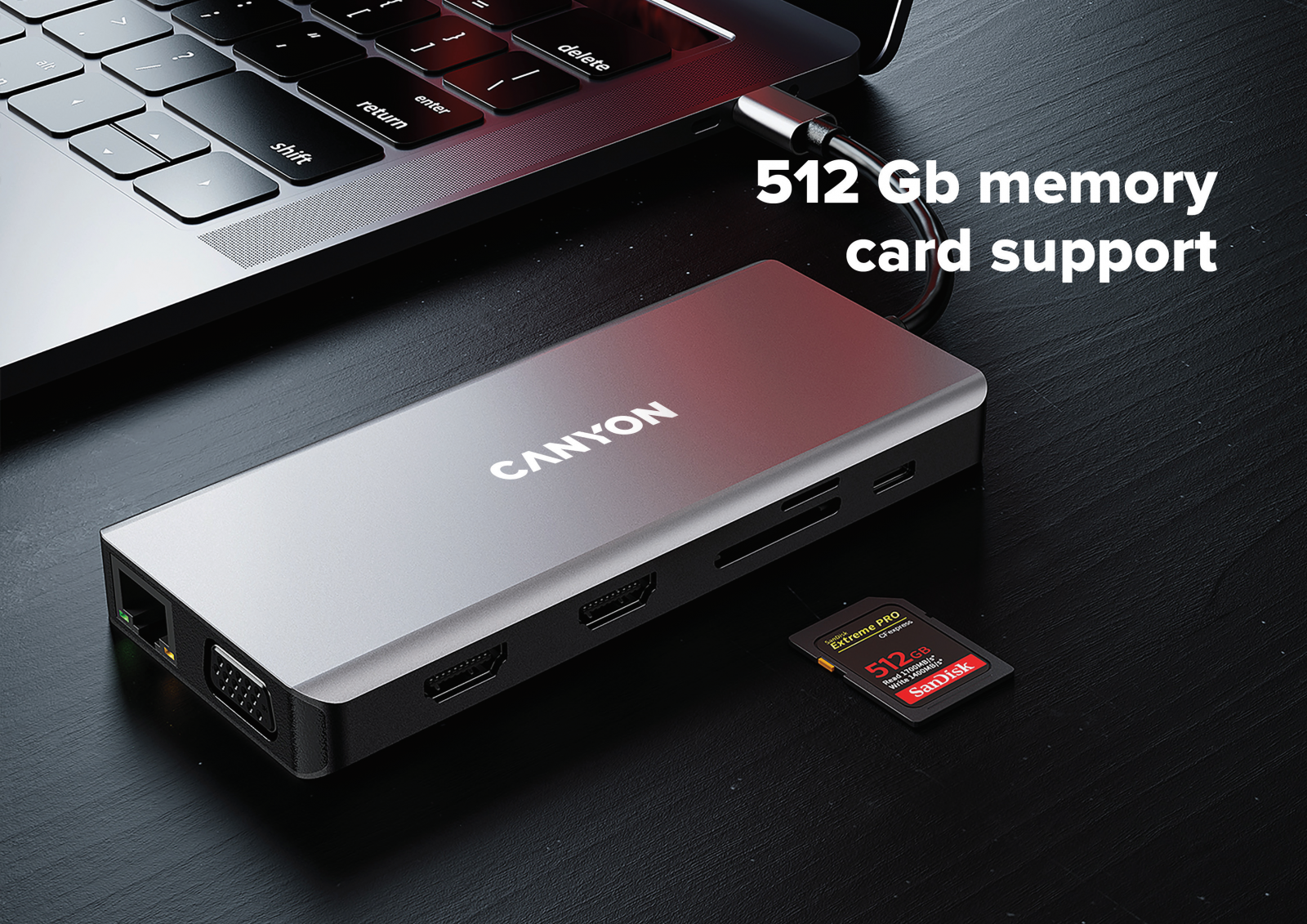

SD, Micro SD card readers
Aluminum housing
Supports Samsung DEX and Nintendo Switch
Compatible with computers, tablets and smartphones
“Plug and Play”

Докинг станция Canyon CNS-TDS12, интерфейс USB-C към 2x HDMI, 1x VGA (D-SUB), 1x USB-C, 1x USB-C PD, 2x USB 3.0, 1x USB 2.0, RJ45 (1Gbps), 3.5mm audio jack, 1x SD/microSD, тъмно сив - характеристика 1

Article
CNS-TDS12	Dark Gray
TECHNICAL SPECIFICATIONS
Interface	USB-C
Ports	VGA, USB, Gigabit Ethernet, Audio-In, HDMI
Card readers	SD, Micro SD
Housing material	Aluminum
Ethernet output	1000 Mbps
Charging port	USB-C PD, max. 100 W
Cable length	0.18 m
Connection method	“Plug and Play”, “Hot Swap” mode
Compatibility	Computer, tablet, smartphone
Support	Samsung DEX and Nintendo Switch
INTERFACES
HDMI	х2 HDMI (Type A), 4K30 Hz / 1080P60 Hz
LAN	х1 RJ-45
USB	х2 USB Type-C, transfer rate max. 480 Mbps
USB 3.0	x2 USB 3.0 (Type A), transfer rate max. 5 Gbps
USB 2.0	х1 USB 2.0 (Type A), transfer rate max. 480 Mbps
Audio interface	х1 3.5-mm minijack
Gigabit Ethernet	Network support 10/100/1000 Mbps
VGA	х1 15-pin D-sub, 1080P*60 Hz
SD	x1 Max. data transfer rate up to 480 Mbps
Micro SD	x1 Max. data transfer rate up to 480 Mbps
DIMENSIONS & WEIGHT
Width	15 mm
Height	57.5 mm
Depth	130 mm
Rated weight	88.5 g
Compatibility
Device Compatibility	Please ensure that your device is equipped with a Full Feature USB type-C port that supports all functions: video, audio, data transferring, PD charging. Otherwise, some functions may not work.
Connecting up to 3 external displays to devices based on Apple M1	1 external display - mirroring and extended desktop modes 2 and 3 external displays - only mirroring mode between external screens
