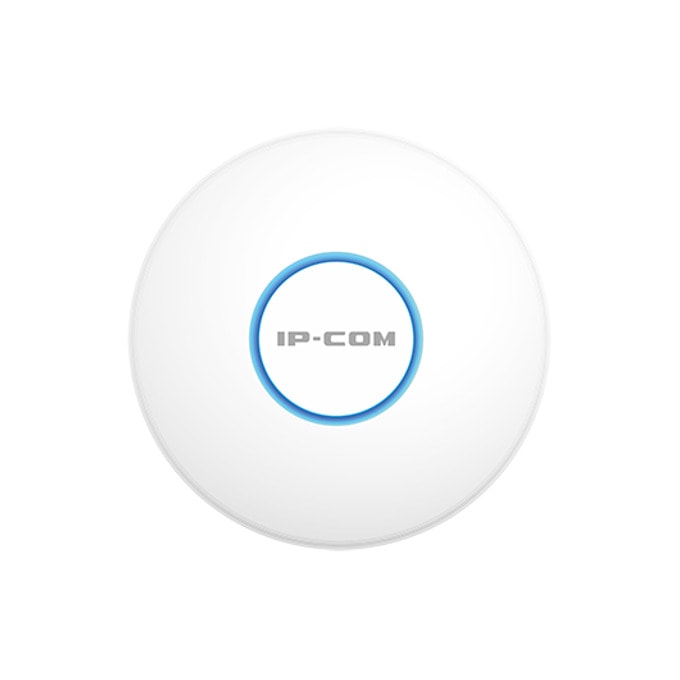

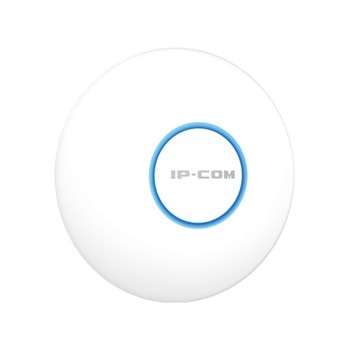

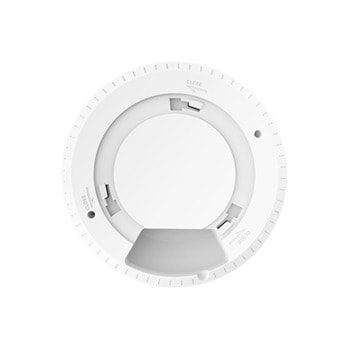

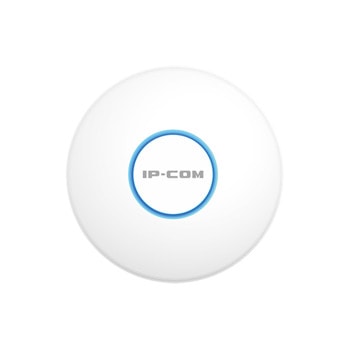

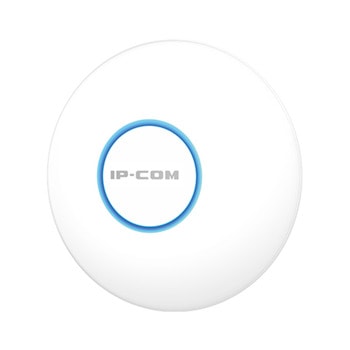

IP COM iUAP-AC-LR
Product Information
Model: iUAP-AC-LR
Category: Ceiling
Dimensions: 176*176*43.5 mm
Hardware Specifications
Frequency band: 2.4 GHz, 5 GHz
Wireless standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
2.4 GHz data rate: 1 - 450 Mbps
5 GHz data rate 6 - 867 Mbps
Ethernet port: 1*10/100/1000 Base-TX port
Button: 1*Reset
LED indicator: 1*Power
Max. power consumption: 13.5W (Full-load)
Power supply standard: IEEE 802.3at & 24V, 0.5A Passive PoE
Antenna gain: 3*4 dBi
2.4 GHz Max. output power: 29 +/- 1.5 dBm
5 GHz Max. output power: 26 +/- 1.5 dBm
802.11b RX sensitivity: -94 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity: -73 dBm
5 GHz 802.11a RX sensitivity: -93 dBm
5 GHz 802.11n (MCS7) RX sensitivity: -74 dBm
Software Specification
Operating modes: AP, Client+AP
Hide SSID: Supported
Max. No. of SSID: 2.4 GHz: 8
5 GHz: 4
Max. connected clients 2.4 GHz: 128
5 GHz: 256
WEP: Supported
WPA-PSK: AES/TKIP
WPA2-PSK: AES/TKIP
WPA: Supported
WPA2: Supported
Access control MAC address-based
Adjustable power transmit: Supported
Frequency analysis: Supported
AP isolation: Supported
Connected clients control: Supported
RSSI threshold: Supported
Transmission Power: Adjustable by 1 dBm
WMM: Supported
VLAN tagging for SSID: Supported
LED indicator control: Supported
Diagnostics tool: Ping, Traceroute
Scheduled reboot: Supported
Reboot at specified interval: Supported
Management: Web UI
System logs: Supported
Firmware upgrade: Local and AC upgrade
Reboot Local and AC reboot
Reset Local and AC reset
Backup configuration: Supported
Restore configuration: Supported
Operating Environment
Default login IP address: 192.168.0.254
Default user name: admin
Default password: admin
Operating temperature: -10℃ - 45℃
Operating humidity: (10% - 90%) RH, non-condensing
Storage temperature: -30℃ - 70℃
Storage humidity: (10% - 90%) RH, non-condensing
Виж още Аксеспойнт/Репитер Безжични IP-COM
Виж всички Аксеспойнт/Репитер Безжични в категорията
Product Information
Model: iUAP-AC-LR
Category: Ceiling
Dimensions: 176*176*43.5 mm
Hardware Specifications
Frequency band: 2.4 GHz, 5 GHz
Wireless standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
2.4 GHz data rate: 1 - 450 Mbps
5 GHz data rate 6 - 867 Mbps
Ethernet port: 1*10/100/1000 Base-TX port
Button: 1*Reset
LED indicator: 1*Power
Max. power consumption: 13.5W (Full-load)
Power supply standard: IEEE 802.3at & 24V, 0.5A Passive PoE
Antenna gain: 3*4 dBi
2.4 GHz Max. output power: 29 +/- 1.5 dBm
5 GHz Max. output power: 26 +/- 1.5 dBm
802.11b RX sensitivity: -94 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity: -73 dBm
5 GHz 802.11a RX sensitivity: -93 dBm
5 GHz 802.11n (MCS7) RX sensitivity: -74 dBm
Software Specification
Operating modes: AP, Client+AP
Hide SSID: Supported
Max. No. of SSID: 2.4 GHz: 8
5 GHz: 4
Max. connected clients 2.4 GHz: 128
5 GHz: 256
WEP: Supported
WPA-PSK: AES/TKIP
WPA2-PSK: AES/TKIP
WPA: Supported
WPA2: Supported
Access control MAC address-based
Adjustable power transmit: Supported
Frequency analysis: Supported
AP isolation: Supported
Connected clients control: Supported
RSSI threshold: Supported
Transmission Power: Adjustable by 1 dBm
WMM: Supported
VLAN tagging for SSID: Supported
LED indicator control: Supported
Diagnostics tool: Ping, Traceroute
Scheduled reboot: Supported
Reboot at specified interval: Supported
Management: Web UI
System logs: Supported
Firmware upgrade: Local and AC upgrade
Reboot Local and AC reboot
Reset Local and AC reset
Backup configuration: Supported
Restore configuration: Supported
Operating Environment
Default login IP address: 192.168.0.254
Default user name: admin
Default password: admin
Operating temperature: -10℃ - 45℃
Operating humidity: (10% - 90%) RH, non-condensing
Storage temperature: -30℃ - 70℃
Storage humidity: (10% - 90%) RH, non-condensing
Виж още Аксеспойнт/Репитер Безжични IP-COM
Виж всички Аксеспойнт/Репитер Безжични в категорията
Технически характеристики
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За вътрешен монтаж |
| Безжична скорост: | 1300 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 5 (802.11ac) |
| Честота: | 2.4 & 5 GHz |
| Антени: | Няма |
| dBi на антена/и: | Не е указано |
| PoE: | In |
| Интерфейс: | 1x 1000 |
| Други: | Вграден говорител |
