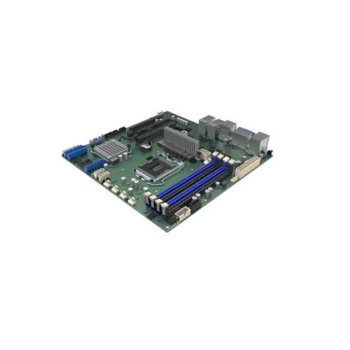

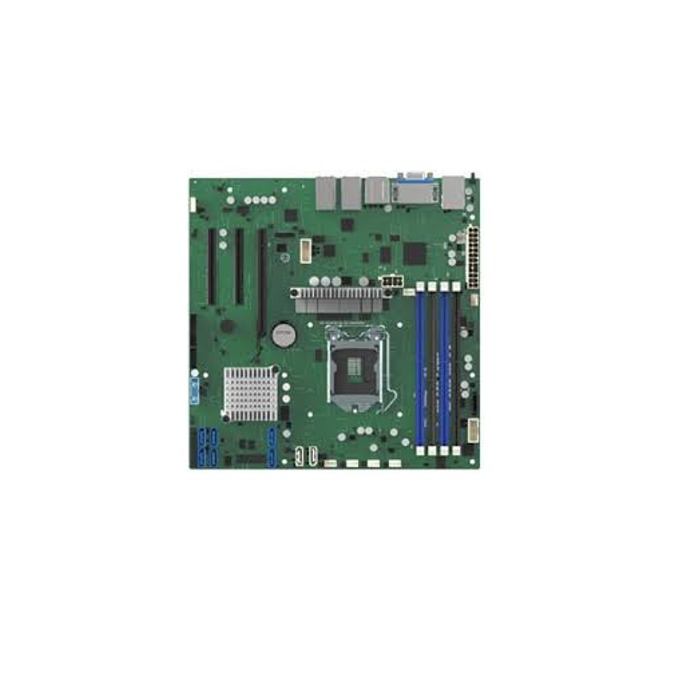

Name: Дънна платка за сървър Intel M10JNP2SB, FCLGA 1151 (Socket H4), 4x DDR4 2666MT/s DDR4 UDIMM ECC, 8x SATA 6G, RAID 0/1/5/10, 2x USB 3.1 Gen 2, 4x 1Gbps LAN, mATX
Brand: Intel
SKU: MBSINTELDBM10JNP2SB
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

Essentials
Product Collection: Intel® Server Board M10JNP Family
Code Name: Products formerly Juniper Pass
Status: Launched
Launch Date: Q4'19
Expected Discontinuance: 2022
Compatible Product Series: Intel® Xeon® E Processor
Board Form Factor: mATX
Socket: Socket H4, FCLGA 1151
TDP: 95 W

Included Items
Intel® Server Board M10JNP2SB: I/O shield
Board Chipset: Intel® C246 Chipset

Memory Specifications
Max Memory Size (dependent on memory type): 128 GB
Memory Types: DDR4 UDIMM ECC, 2666 MT/s, 1.2V
Max # of Memory Channels: 2
Max # of DIMMs: 4
ECC Memory Supported ‡: Yes

Processor Graphics
Graphics Output: DDI ports

Expansion Options
PCIe x4 Gen 3: 1
PCIe x8 Gen 3: 2

I/O Specifications
USB Configuration
4 x External USB 3.1 Gen2 ports
2 x USB 3.1 Gen1 ports (via 2x10 pin connector)
USB Revision: 3.1
Total # of SATA Ports: 8
RAID Configuration: RAID 0/1/10/5 (Intel RSTe)
Integrated LAN: 4 x 1Gbps LAN ports + 1 x 1Gbps management port

Intel® Transparent Supply Chain
TPM Version: 2.0 support
