Охлаждане за процесор Intel Laminar RM1 Cooler, съвместимост със сокет Intel LGA 1700

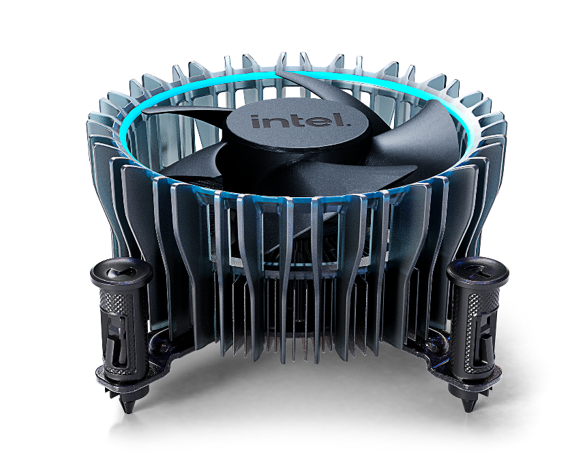

Intel® Laminar RM1 Cooler



Highlights of this cooler

• Standard size
• 3.9 BA Quiet Performance
• Intel Validated Compatibility



Heatsink Specifications:

Heatsink fin material	Aluminum
Heatsink base/core material	Copper



Specifications:

Overall Height	Up to 47mm (top of fan to bottom of heatsink)
Overall Size	Up to 100mm x 100mm
Mass	Up to 350g
Sound Power Level	3.9 BA (2400 RPM, 40C inlet, 65W); 4.6 BA (max RPM)
Sound Pressure Level	29 dBA (2400 RPM, 40C inlet, 65W)
TDP Support	Up to 65W (12th Gen Intel® Core™ Desktop Processors)
Fan Type	PWM controlled variable speed fan
Connector Type	4-pin
Operating Voltage	13.2V max, 12.0V rated, 10.8V min
Current (peak)	Up to 400mA
Max RPM (+/- 5%)	Up to 3150 RPM
Min RPM (+/- 20%)	600 RPM
Operating Temp	0 to 70C
Operating Humidity	85% relative humidity @ 55C
Fan Protection	Locked-rotor/polarity protected
Sense Frequency	2 pulses/Rev, 12V pull-up with 10Kohm
PWM Frequency	25KHz +/- 5KHz
PWM Pull-up Voltage	5.25V max
PWM Duty Cycle Range	0–100%
