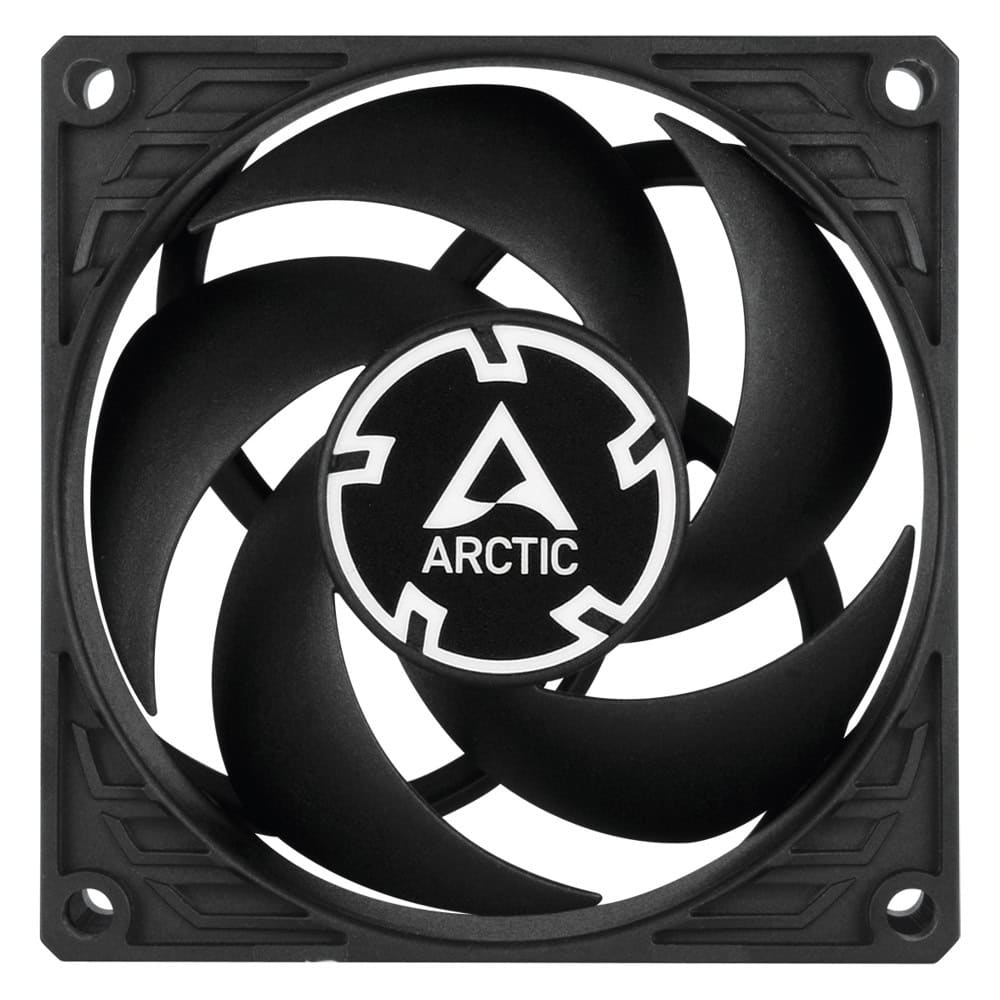

Вентилатори 80mm, Arctic P8 PWM PST CO, 4-pin, 3000rpm, черен, 1 бр.

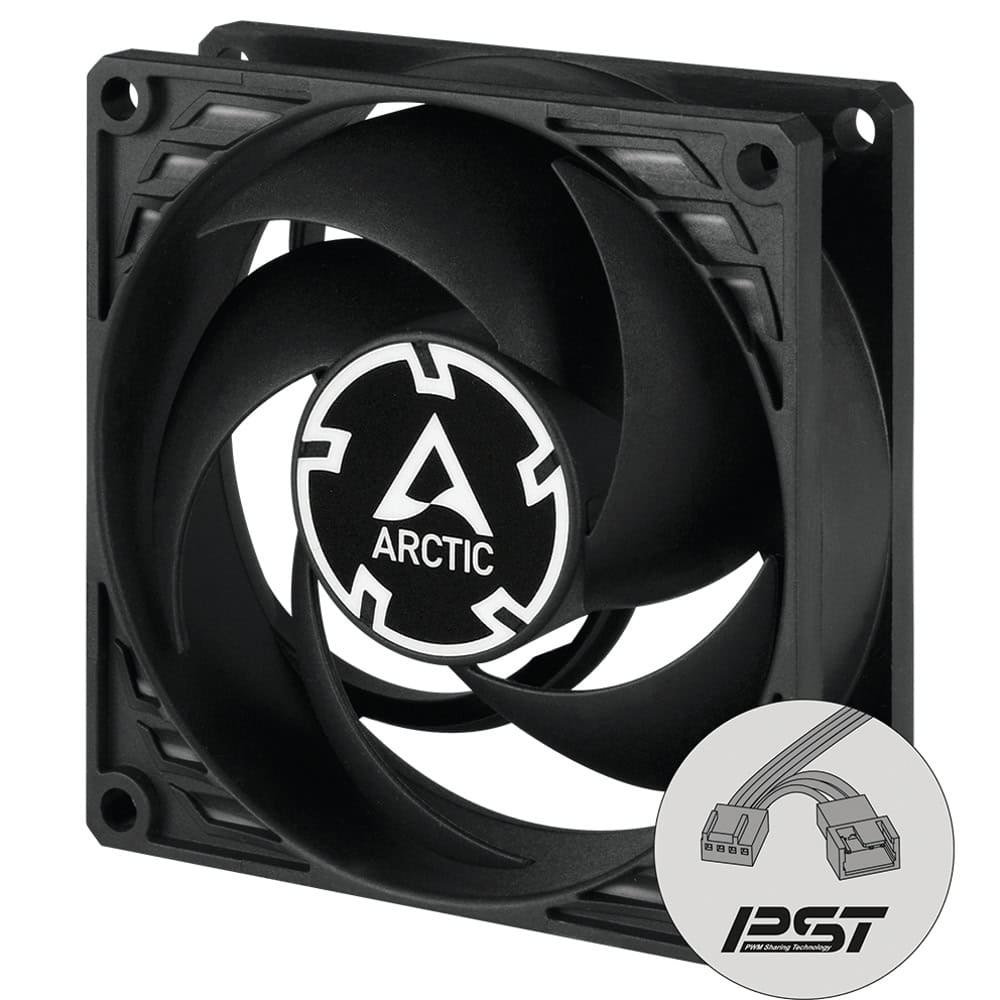

Arctic P8 PWM PST CO

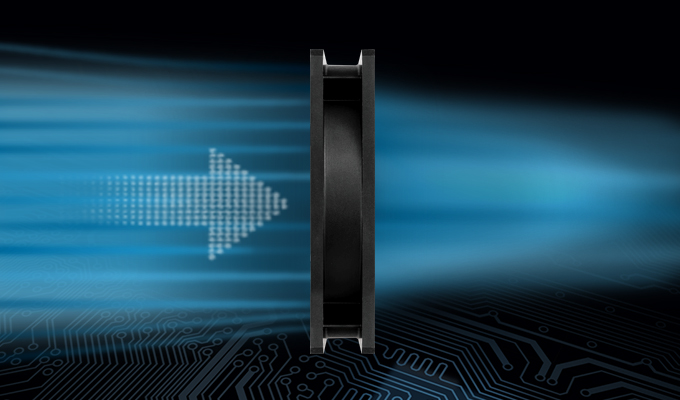

Optimised for Static Pressure

During the development of the new P8 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST CO is particularly suitable for use on heatsinks and radiators.

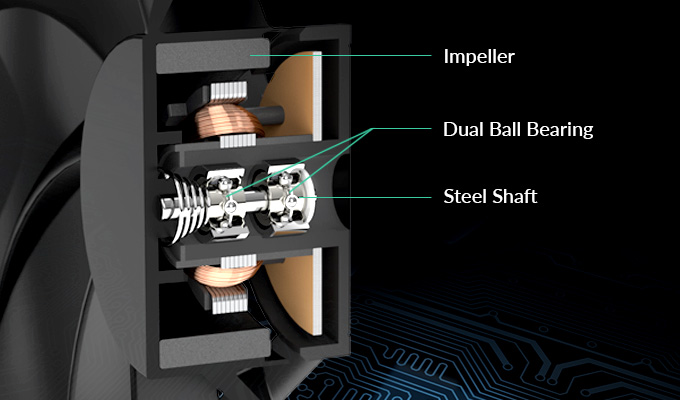

For Continuous Operation

The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

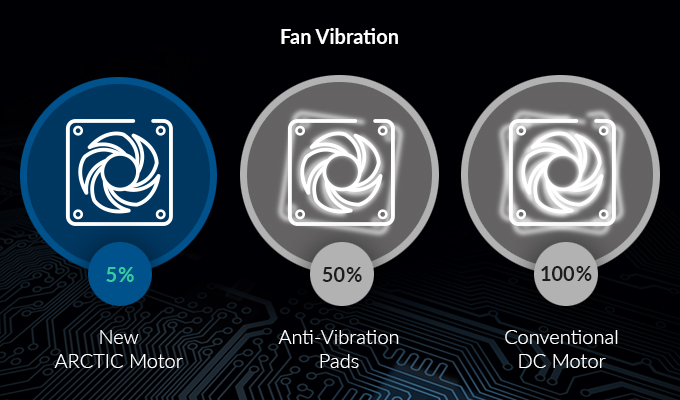

Maximum Quietness, Minimum Vibration

Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

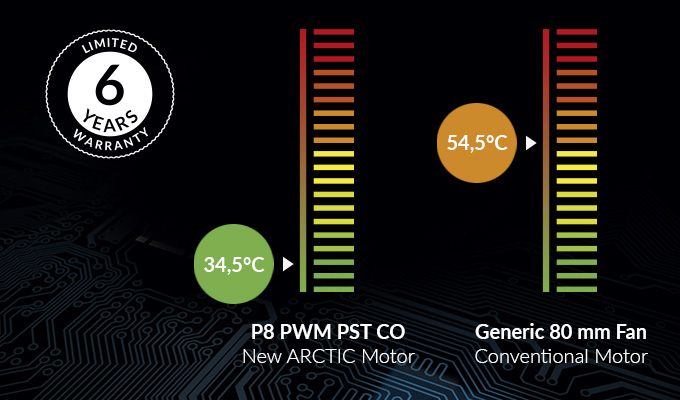

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

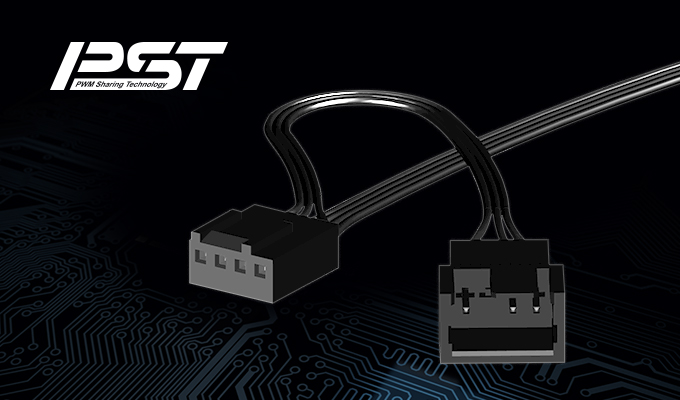

200 to 3000 rpm Regulated via PWM

With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Specifications:

Fan Speed: 200–3000 RPM

Airflow: 23.4 CFM / 39.76 m³/h

Static Pressure: 1.9 mmH₂O

Noise Level: 0.3 Sone

Fan Frame: Standard

Control Type: PWM PST

Connector: 4-Pin Connector + 4-Pin Socket

Fan Bearing: Dual Ball Bearing

Operating Ambient Temperature: 0–40°C

Typical Voltage: 12 V DC

Starting Voltage: 3.4 V

Current: 0.09 A

Cable Length: 400 mm

Dimensions (L × W × H): 80 × 80 × 25 mm
