Дънна платка INTEL DQ45CB, Q45, S775, VGA+PCI-E (DVI), DDR2, SB5.1, Lan1000, 1394, SATA RAID 0,1,5, mATX, BULK

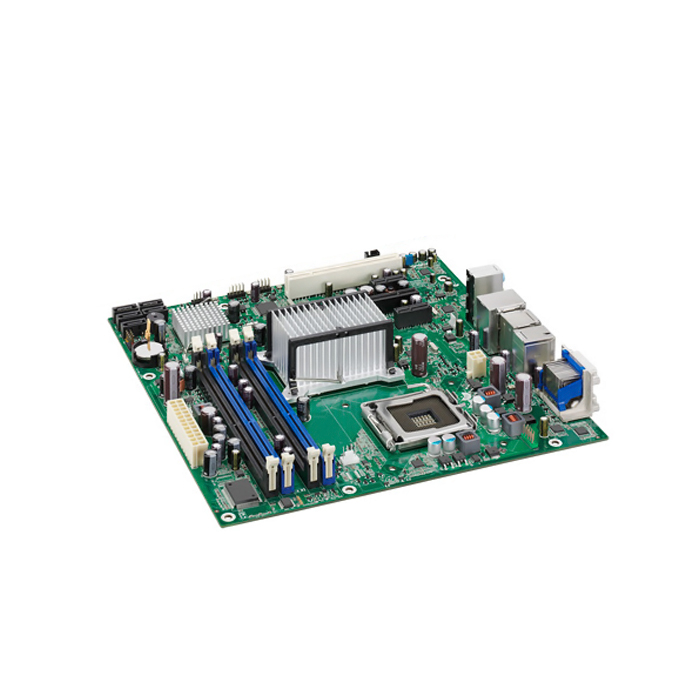

Intel® Desktop Board DQ45CB

Processor

Processor Support
• Intel® Core™2 Quad and Intel® Core™2 Duo processors in the LGA775 package
• Supports Intel® 64 Architecture

Chipset

Intel® Q45 Express Chipset
• Intel® 82Q45 Graphics and Memory Controller
Hub (GMCH)
• Intel® 82801JO I/O Controller Hub (ICH10DO)
• Intel® AMT 5.0 Professional**
• Intel® Matrix Storage Technology**
(RAID 0, 1, 5, 10) with Intel® Rapid
Recover Technology

Graphics Memory Controller Hub (GMCH)

• Designed to support up to 8 GB1 of system memory using DDR2 800 / 667 SDRAM memory
• Intel® Fast Memory Access
• Intel® Graphics Media Accelerator 4500 with DirectX* 10
• DVI-I and DVI-D integrated graphics output Intel® I/O Controller Hub
• Five onboard Serial ATA ports plus one eSATA
(3.0 Gb/s) connector on the back panel

USB 2.0

Integrated Intel® ICH10DO controllers:
• Six back-panel ports (three dual-stack)
• Six additional ports (via three headers)

System BIOS

• 32 Mb Flash EEPROM with Intel® Platform
Innovation Framework for EFI Plug and Play,
IDE drive auto-configure
• Advanced configuration and power interface
V1.0b, DMI 2.0, multilingual support

Intel® Rapid BIOS Boot

• Intel® Rapid BIOS Boot
• Intel® Express BIOS Update support

System Memory

Memory Capacity
• Four 240-pin DIMM connectors supporting up to four double-sided DIMMs

Memory Types
• DDR2 800 / 667 SDRAM memory support
• Non-ECC Memory

Memory Modes
• Dual- or single-channel operation support

Memory Voltage
• 1.8V

Hardware Management Features
• Processor fan speed control
• System chassis fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• Power management support for ACPI 1.0b

Intel® 82567LM ENERGY STAR*-ready
10/100/1000 Network Connection

• High quality and reliability with Intel’s world-class manufacturing and validation
• Supports Intel® vPro™ technology-based software and applications with added security and manageability

Expansion Capabilities
• One PCI bus add-in card connector
• Two PCI Express* x1 bus add-in card connectors
• One PCI Express* x16 graphics connector
• Two IEEE 1394a ports (1 external port, 1 internal header)

Audio
• 5.1-channel Intel® High Definition Audio codec

Jumpers and Front-Panel Connectors

Jumpers
• Single configuration jumper design
• Jumper access for BIOS maintenance mode

Front-Panel Connectors
• Reset, HD LED, Power LEDs, power on/off
• Three front-panel Hi-Speed USB 2.0 headers
• One 1394a header
• Front-panel audio header
• One serial header

Mechanical

Board Style
• MicroATX 2.2 compliant

Board Size
• 9.6” x 9.6” (24.38 cm x 24.38 cm)

Baseboard Power Requirements
• ATX12V

http://www.intel.com/Assets/PDF/prodbrief/320268.pdf
