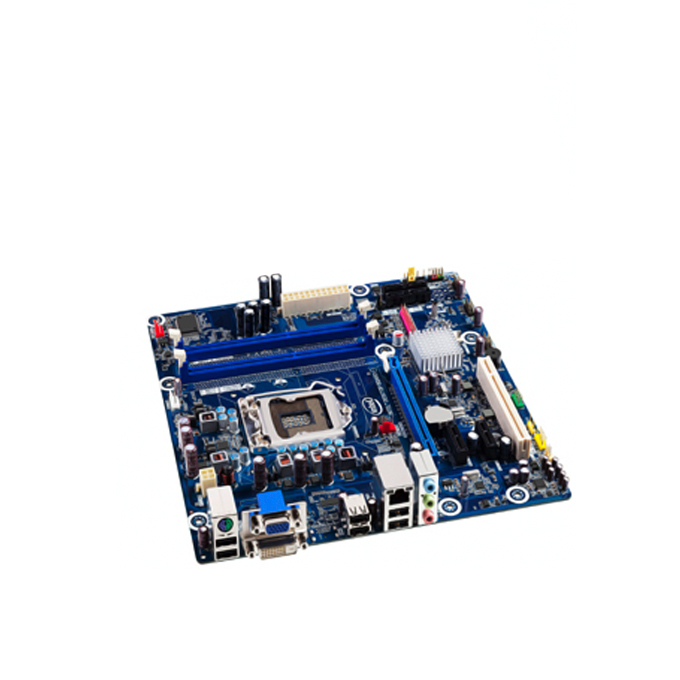

Intel® Desktop Board DH55PJ
PROCESSOR
Processor Support
- Intel Core i7, Intel Core i5, Intel Core i3 and Intel Pentium processors in the LGA1156 package
- Supports Intel 64 architecture
CHIPSET
Intel H55 Express Chipset
- Intel 82H55 Platform Controller Hub (PCH)
Peripheral Connectivity
- Four SATA ports (3.0 Gb/s)
- Twelve Hi-Speed USB 2.0 ports (six back panel ports and six additional ports via three internal headers)
System BIOS
- 64 Mb Flash EEPROM with Intel Platform Innovation Framework for EFI Plug and Play
- Advanced configuration and power interface V3.0b, DMI 2.5
- Intel Express BIOS update support
Hardware Management Features
- Processor fan speed control
- Front and rear system chassis fan speed control
- Voltage and temperature sensing
- Fan sensor inputs used to monitor fan activity
- ACPI-compliant power management support
Intel PRO 10/100/1000 Network Connection
- New low-power design
Expansion Capabilities
- One PCI Express 2.0 x16 connector
- Two PCI Express 2.0 x1 connectors
- One PCI connector
Audio
- 5.1 +2 multi-streaming Intel High Definition Audio
- Internal S/PDIF header and speaker header
Video
- VGA + DVI-D supports dual independent display for Intel Core processors with Intel HD Graphics
SYSTEM MEMORY
Memory Capacity
- Two 240-pin DIMM connectors supporting up to two double-sided DIMMs
- Maximum system memory up to 8GB
Memory Types
- DDR3 1333/1066 SDRAM memory support
- Non-ECC Memory
- Supports memory overvoltage and memory overclocking
Memory Modes
- Dual- or single-channel operation support
Memory Voltage
- Memory overvoltage to 1.60V and 1.65V
- 1.5V standard JEDEC voltage
MECHANICAL
Form factor
- MicroATX
Board Size
- 24.38 cm x 24.38 cm
Baseboard Power Requirements
- ATX 12V
http://www.intel.com/Assets/pdf/general/323757.pdf
Виж още Дънни платки за Intel процесори Intel
Виж всички Дънни платки за Intel процесори в категорията
PROCESSOR
Processor Support
- Intel Core i7, Intel Core i5, Intel Core i3 and Intel Pentium processors in the LGA1156 package
- Supports Intel 64 architecture
CHIPSET
Intel H55 Express Chipset
- Intel 82H55 Platform Controller Hub (PCH)
Peripheral Connectivity
- Four SATA ports (3.0 Gb/s)
- Twelve Hi-Speed USB 2.0 ports (six back panel ports and six additional ports via three internal headers)
System BIOS
- 64 Mb Flash EEPROM with Intel Platform Innovation Framework for EFI Plug and Play
- Advanced configuration and power interface V3.0b, DMI 2.5
- Intel Express BIOS update support
Hardware Management Features
- Processor fan speed control
- Front and rear system chassis fan speed control
- Voltage and temperature sensing
- Fan sensor inputs used to monitor fan activity
- ACPI-compliant power management support
Intel PRO 10/100/1000 Network Connection
- New low-power design
Expansion Capabilities
- One PCI Express 2.0 x16 connector
- Two PCI Express 2.0 x1 connectors
- One PCI connector
Audio
- 5.1 +2 multi-streaming Intel High Definition Audio
- Internal S/PDIF header and speaker header
Video
- VGA + DVI-D supports dual independent display for Intel Core processors with Intel HD Graphics
SYSTEM MEMORY
Memory Capacity
- Two 240-pin DIMM connectors supporting up to two double-sided DIMMs
- Maximum system memory up to 8GB
Memory Types
- DDR3 1333/1066 SDRAM memory support
- Non-ECC Memory
- Supports memory overvoltage and memory overclocking
Memory Modes
- Dual- or single-channel operation support
Memory Voltage
- Memory overvoltage to 1.60V and 1.65V
- 1.5V standard JEDEC voltage
MECHANICAL
Form factor
- MicroATX
Board Size
- 24.38 cm x 24.38 cm
Baseboard Power Requirements
- ATX 12V
http://www.intel.com/Assets/pdf/general/323757.pdf
Виж още Дънни платки за Intel процесори Intel
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1156 |
|---|---|
| Чипсет: | H55 |
| Поддържана памет: | DDR3 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 3Gbit/s |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DVI |
| Форм фактор: | Micro ATX |
