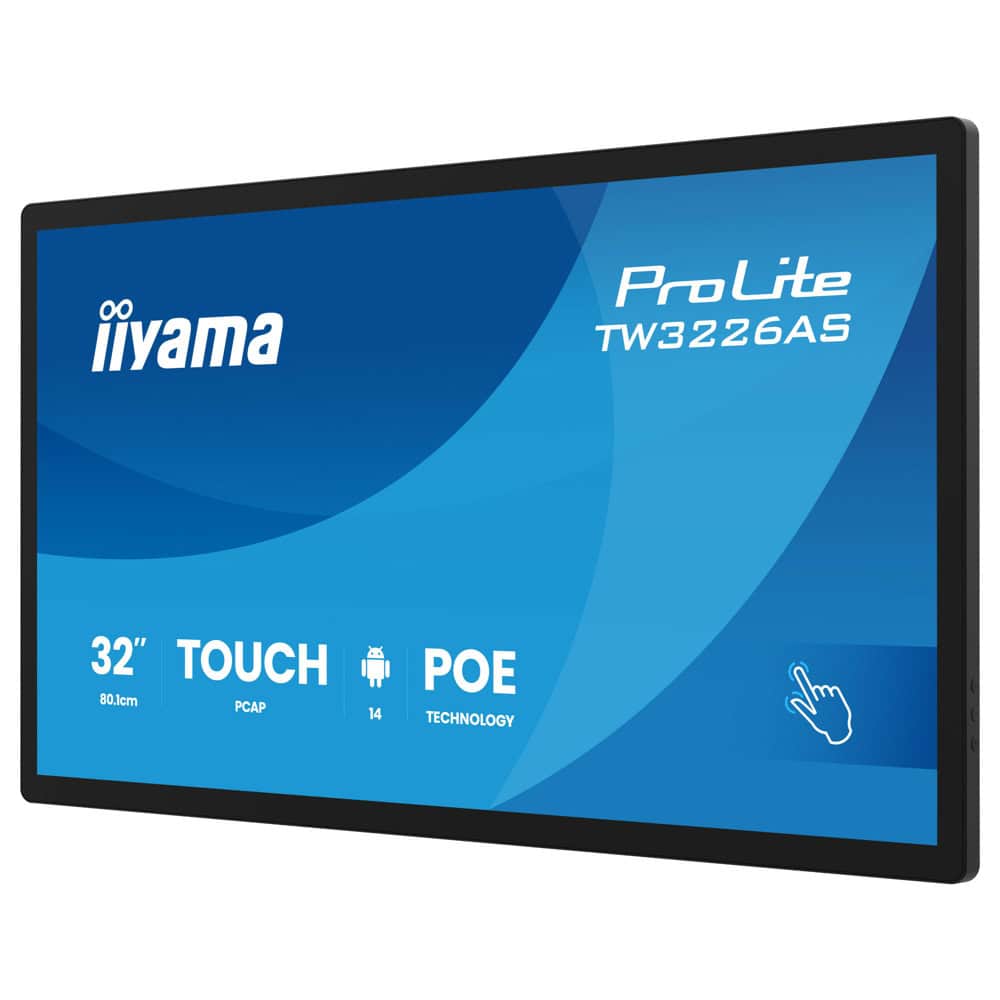

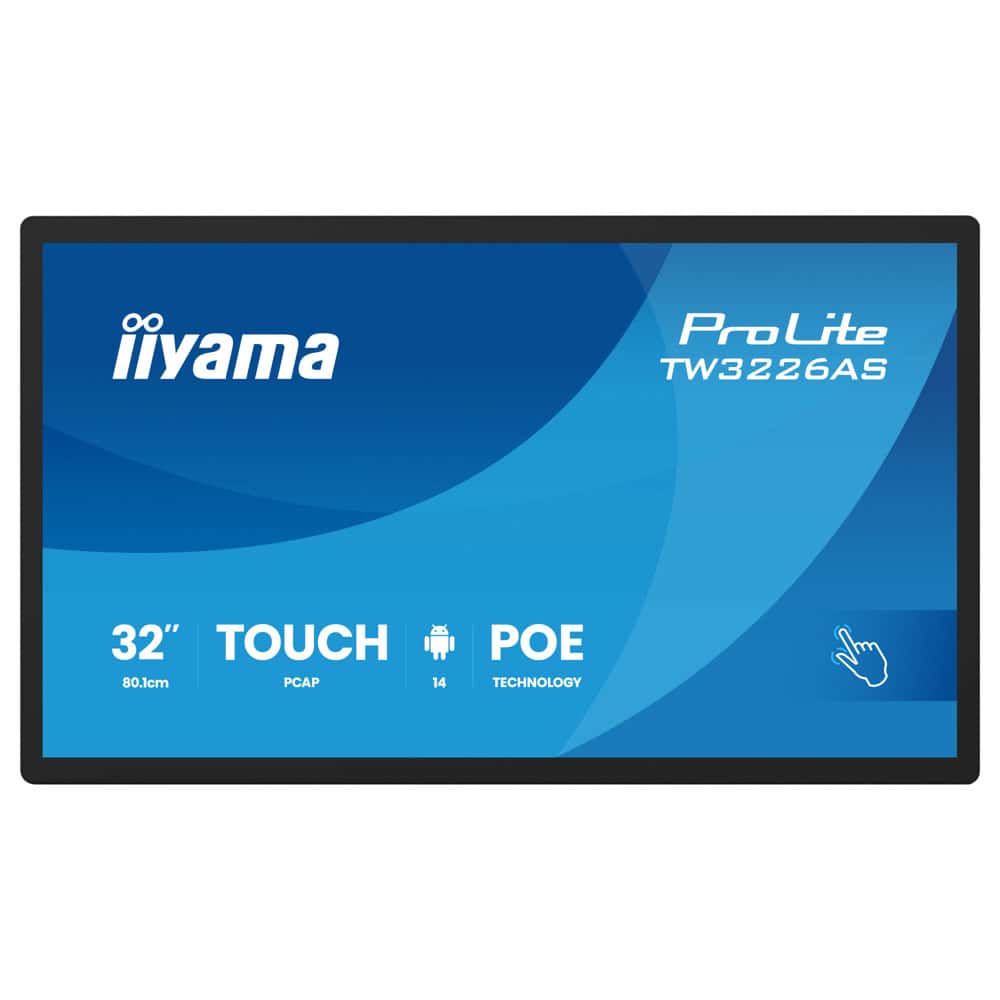

IIYAMA TW3226AS-B3P

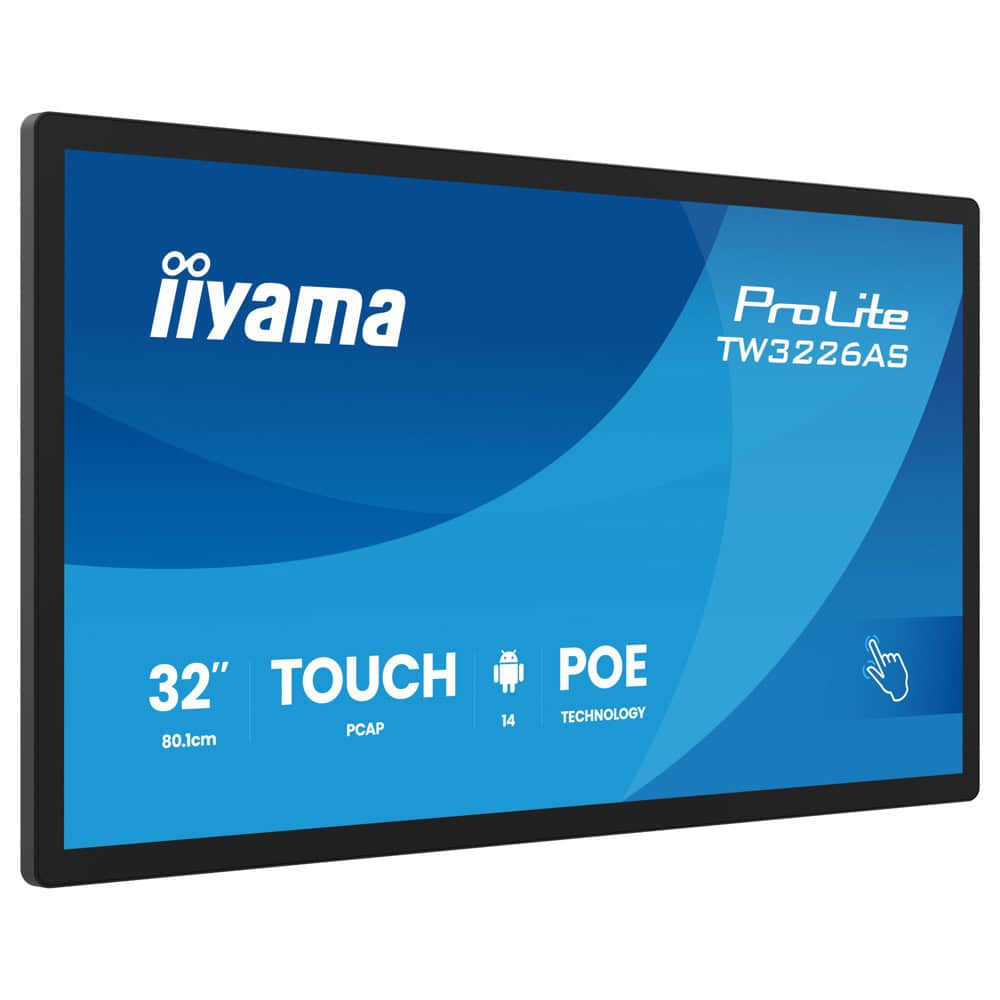

31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage²

The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.

With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

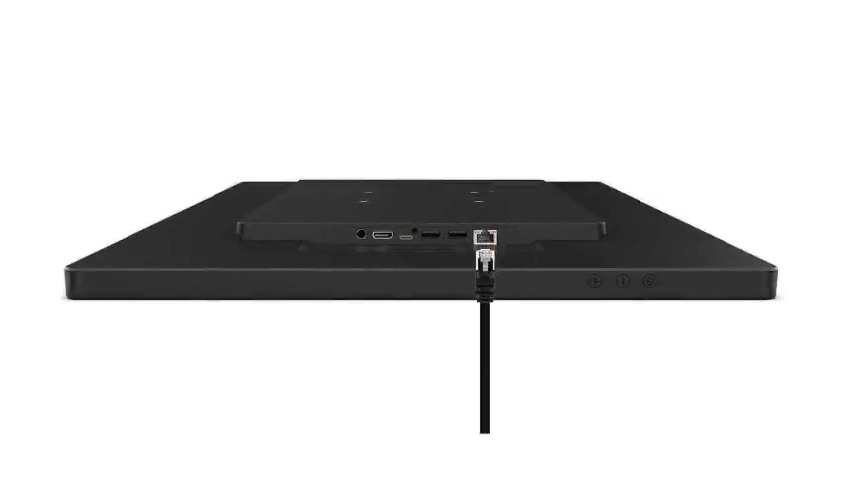

Connectivity

The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.

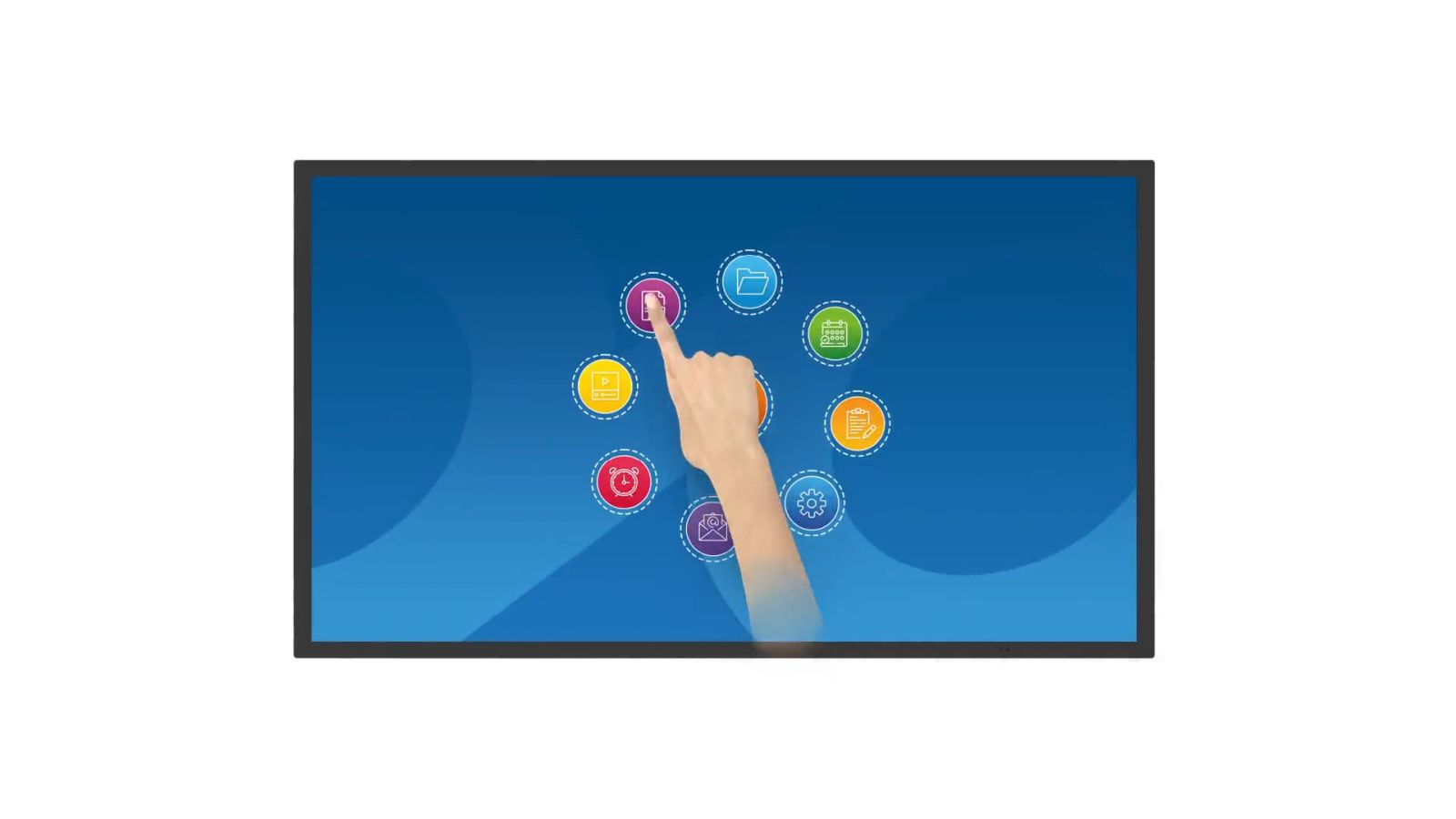

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²

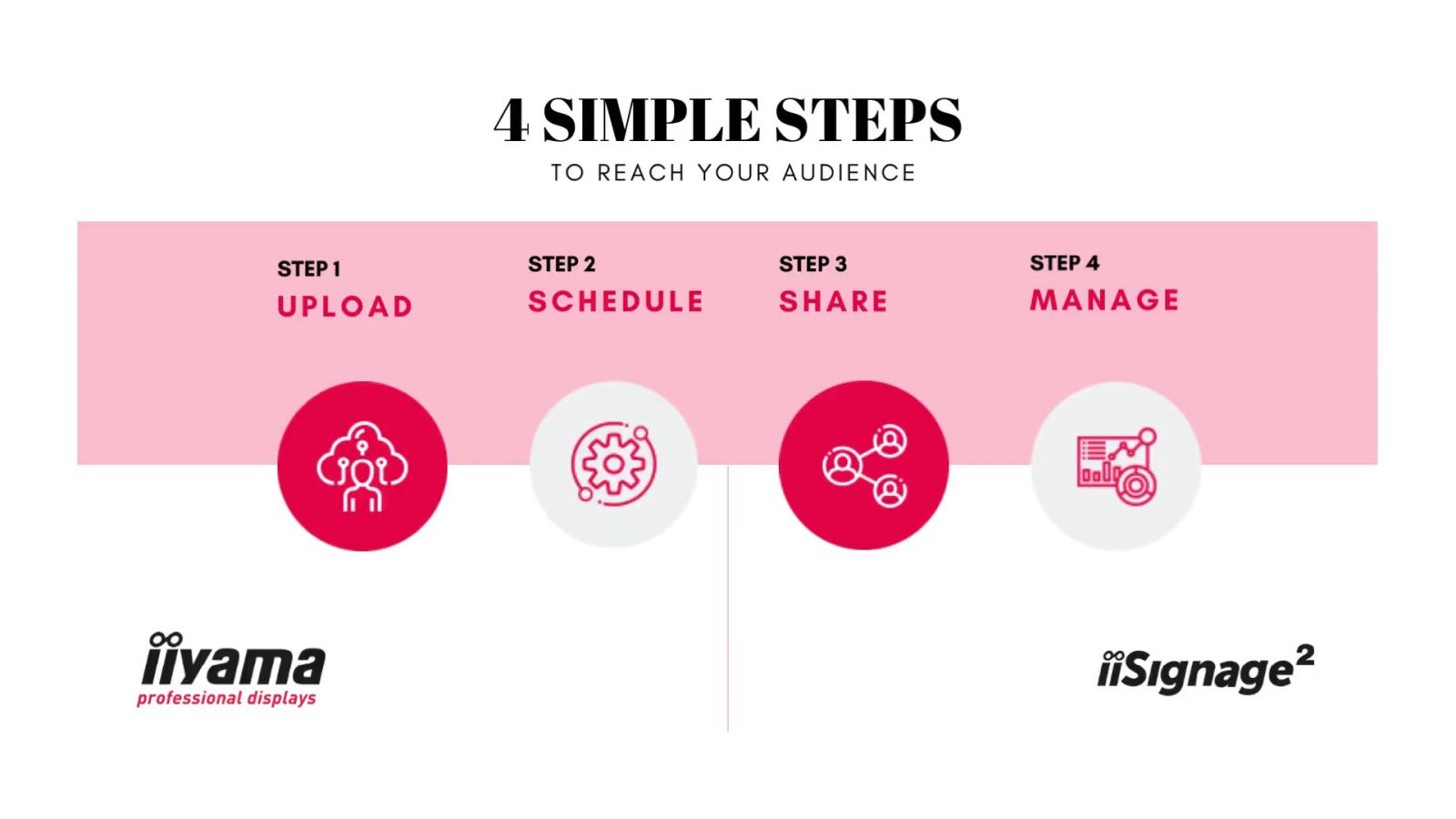

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Specification	Details
Design	Edge to edge glass
Diagonal	31.5" (80.1 cm)
Panel Type	VA
Native Resolution	1920 x 1080 (2 Megapixel HD)
Aspect Ratio	16:9
Panel Brightness	500 cd/m²
Brightness (with touch)	430 cd/m²
Static Contrast (with touch)	4000:1
Response Time (GTG)	8 ms
Viewing Angles	178°/178° (H/V), 89°/89° (R/L, U/D)
Colour Support	16.7 million, 8-bit
Viewable Area (W x H)	698.4 x 392.8 mm (27.4" x 15.4")
Pixel Pitch	0.3637 mm
Bezel	Black, matte
Touch Technology	Projective capacitive
Touch Points	10-point (HID; integrated OS supports 10, external OS single touch only)
Touch Method	Finger, latex glove, capacitive stylus
Touch Interface	USB
Supported OS	Plug & Play (Windows, Linux; see driver file for touch support details)
Digital Input	1x HDMI (1920x1080 @60Hz)
Audio Output	1x Mini jack
Speakers	2 x 5W
HDCP	Yes

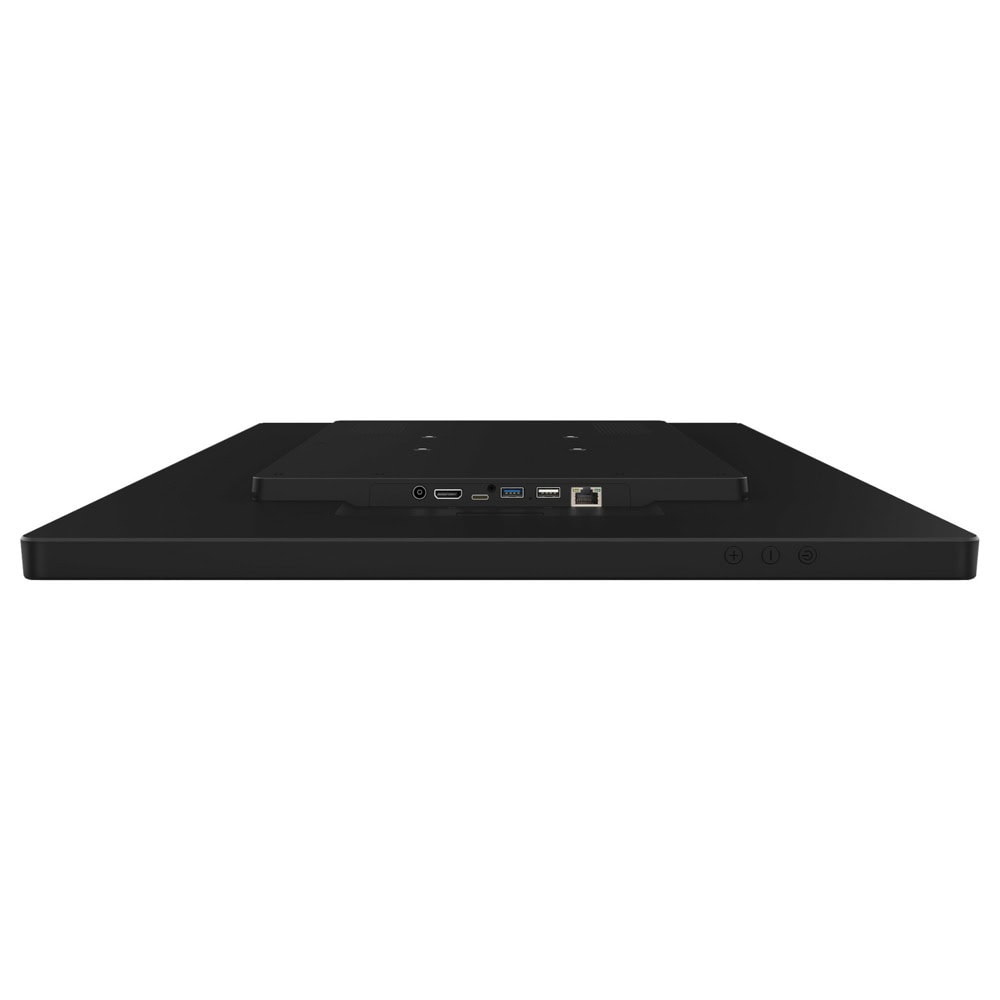

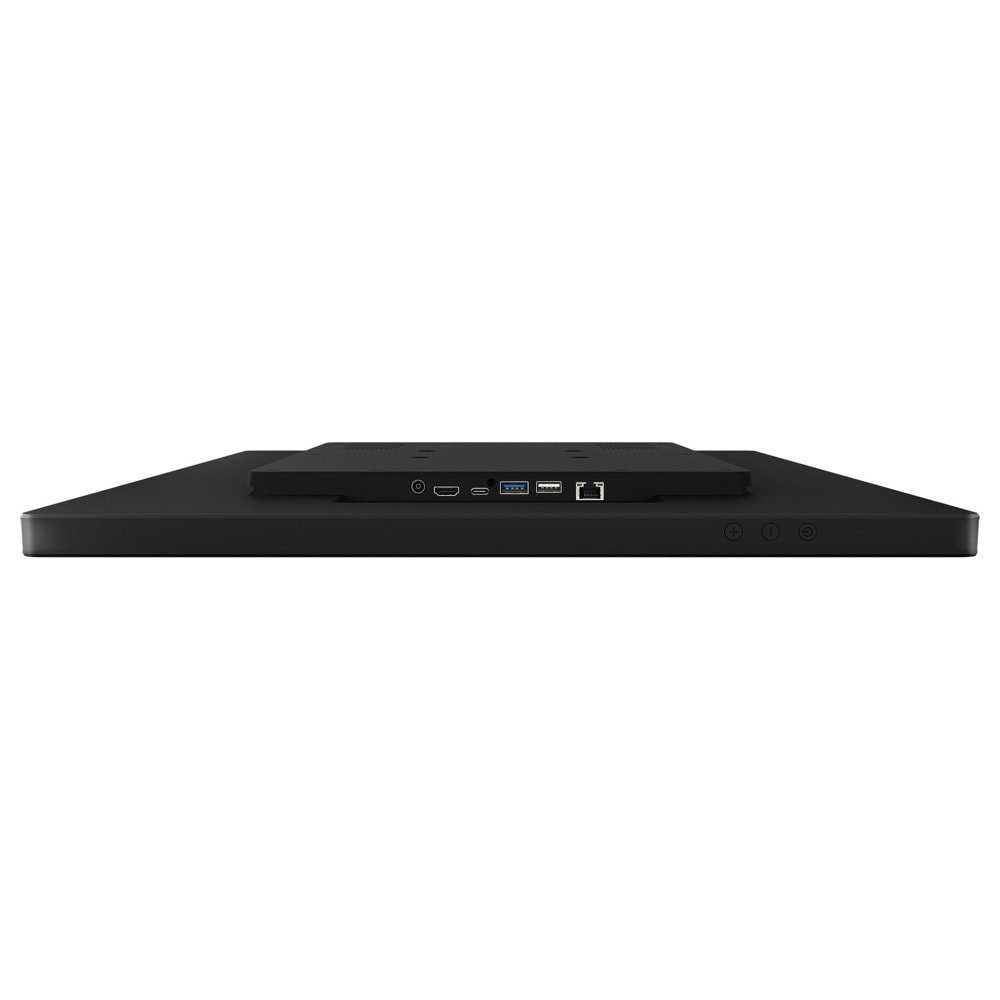

USB Ports	3x (1x USB 3.2 Gen1 5Gbit 900mA, 1x USB 2.0 500mA, 1x USB-C 900mA – video output only, touch board function)
RJ45 (LAN)	1x (PoE IEEE802.3bt / 85W)
Microphone	1x Standard Quad Microphone
Operating System	Android 14
CPU	Rockchip RK3576 Octa-core (4x A72 + 4x A53 up to 2.2GHz)
GPU	ARM-G52 MC3
Storage	32GB eMMC
Memory	4GB LPDDR4X
WiFi	IEEE 802.11ax/ac/a/b/g/n
Bluetooth	5.3
Extra Features	Auto-rotation, anti-glare coating, PoE
Kiosk Mode	Yes
Max Operating Time	24/7
Glass Hardness	3H
Control Buttons	Power switch, Volume +, Volume -
Applications	Lock app, restart scheduling, power scheduling, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, file manager, album organizer, Gmail, Google, iiSignage², audio player, Play Store, system preferences, sound recorder, video player
Flicker Free	Yes

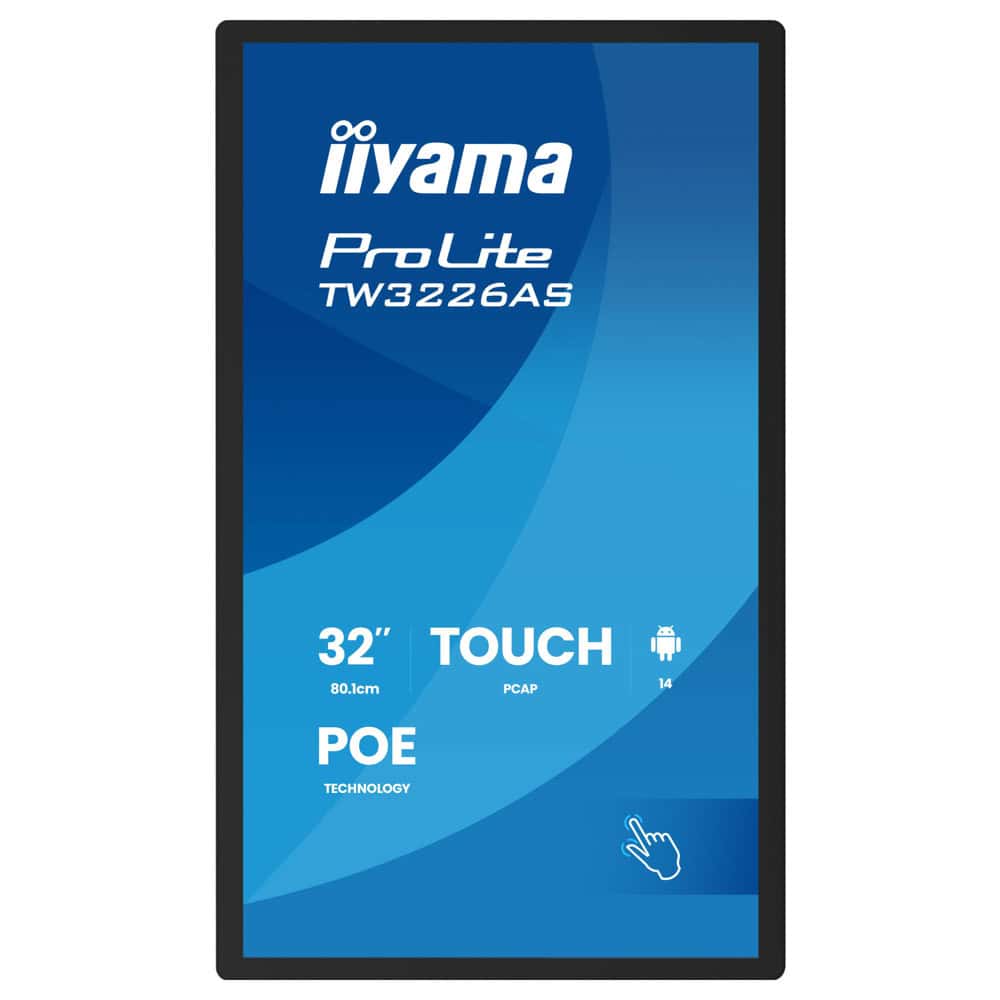

Orientation	Landscape, portrait, face-up

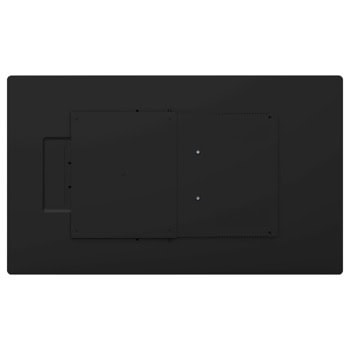

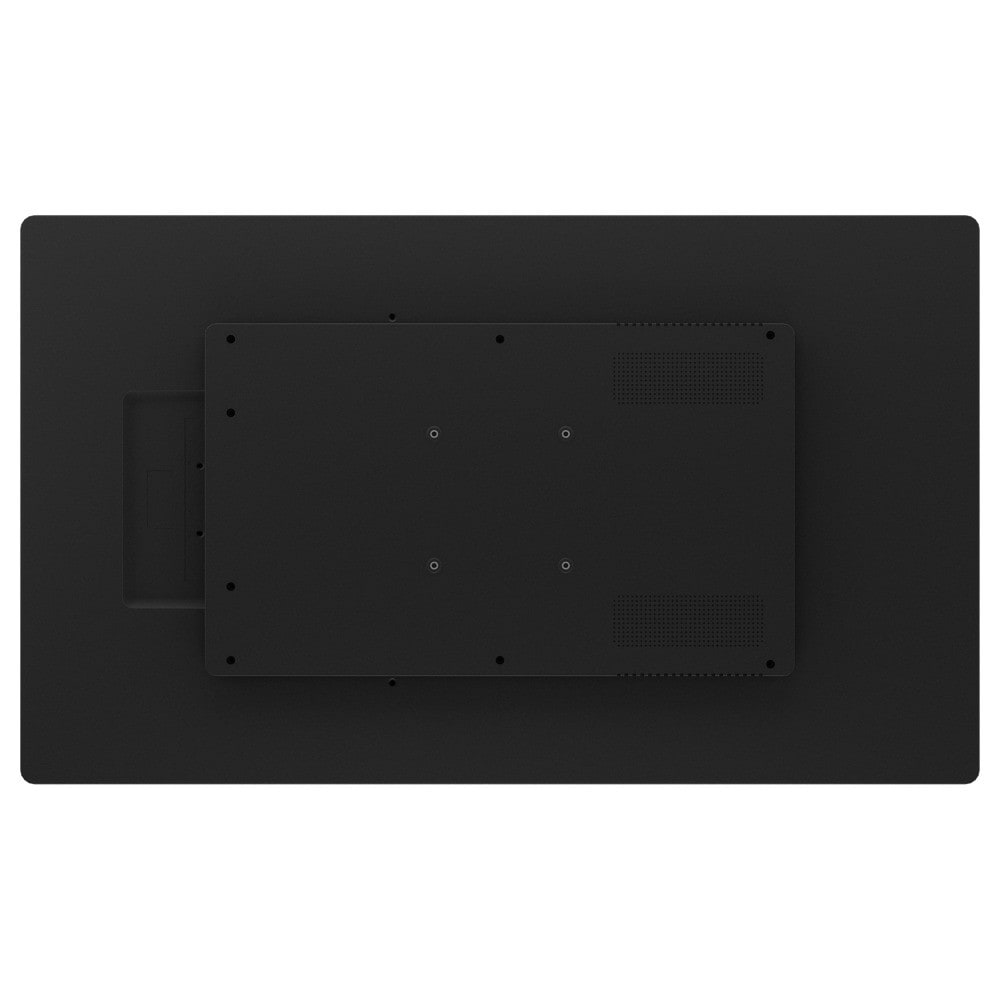

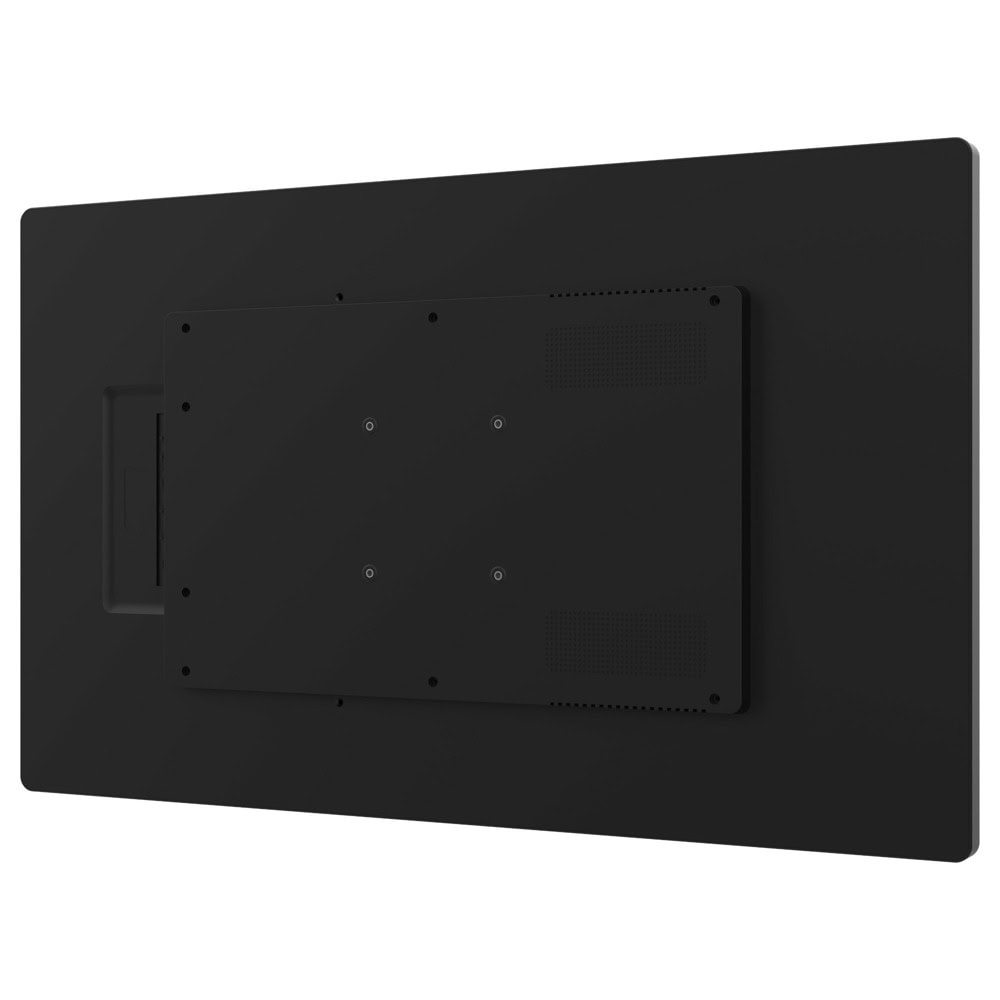

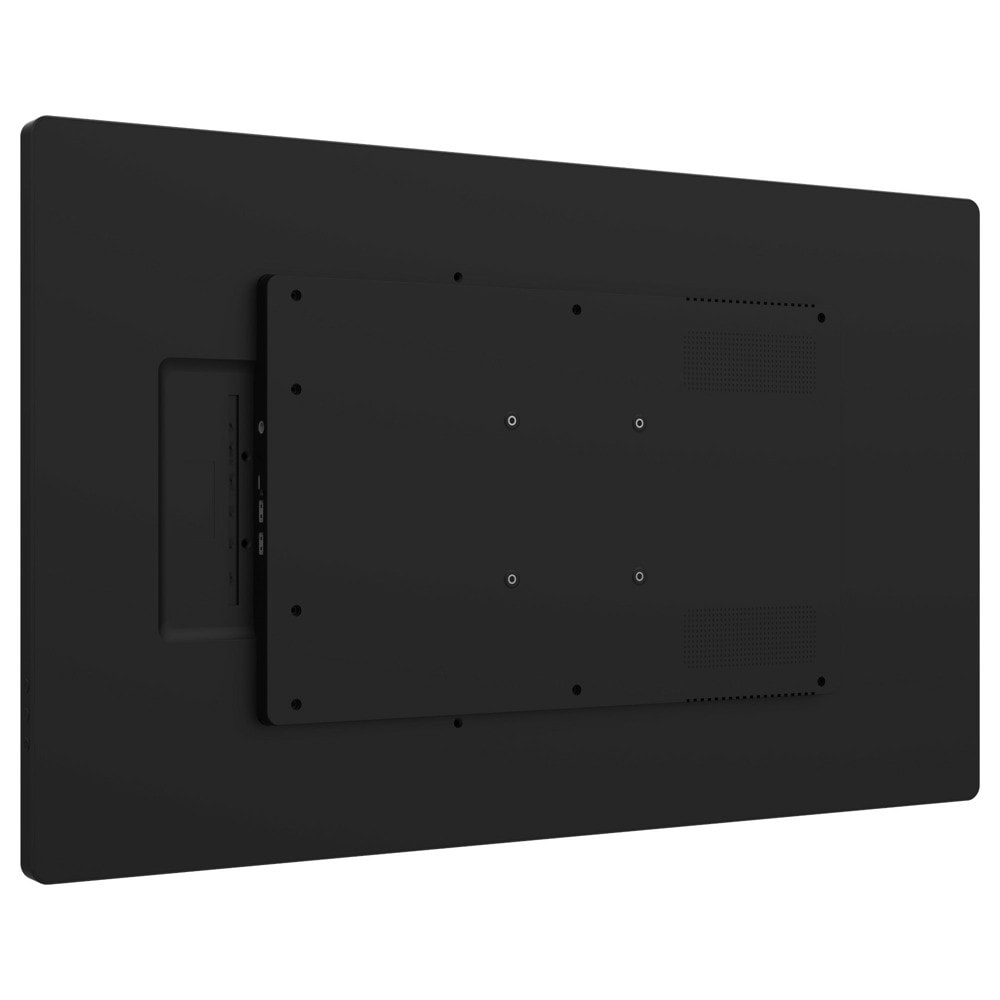

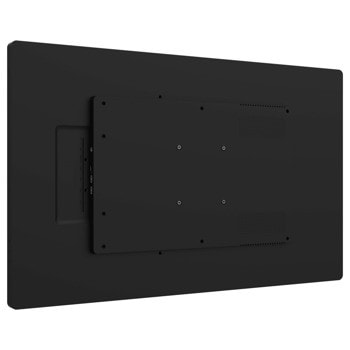

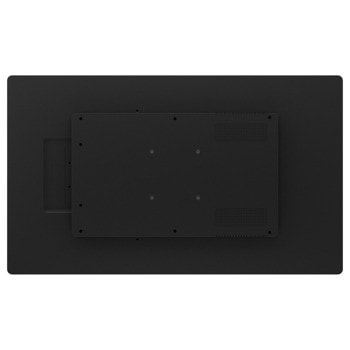

VESA Mount	100 x 100 mm
Cable Management	Yes
MTBF	50,000 hours
Cables	Power cable
Other	AC adapter, wall mount (cover, screws, plugs), EVA pads, spirit level
Cable Cover	Yes
Power Supply Unit	External
Power Supply	DC 12V
Power Consumption	36.34W typical, 0.5W standby, 0.3W off mode
Regulations	CE, EAC, RoHS, ErP, WEEE, REACH, UKCA
REACH SVHC	Above 0.1%: Lead
