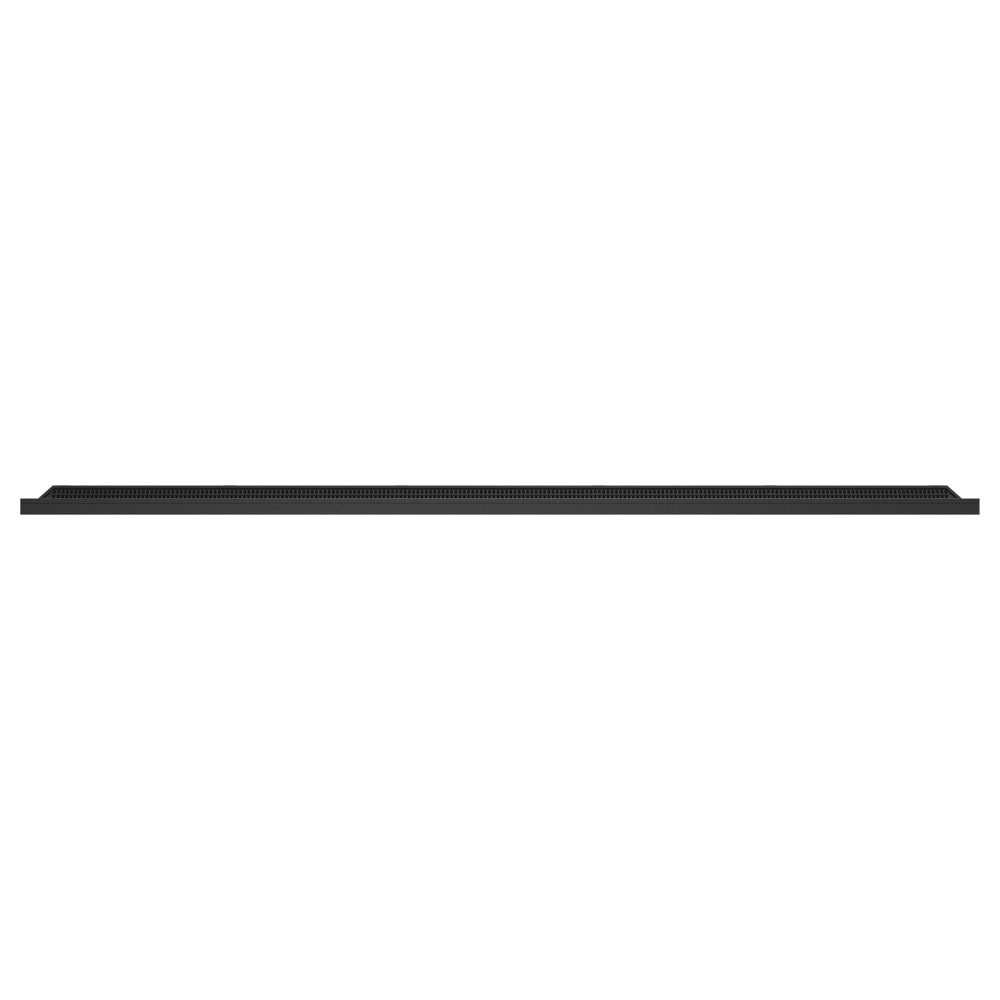

Name: Публичен дисплей IIYAMA LH5560UHS-B2AG, 54.6 (138.6 cm), 4K/UHD VA LED дисплей, HDMI, RS232, USB, Wi-Fi, LAN
Brand: Iiyama
SKU: MNSPIIYAMALH5560UHSB2AG
Price: 1189.23 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

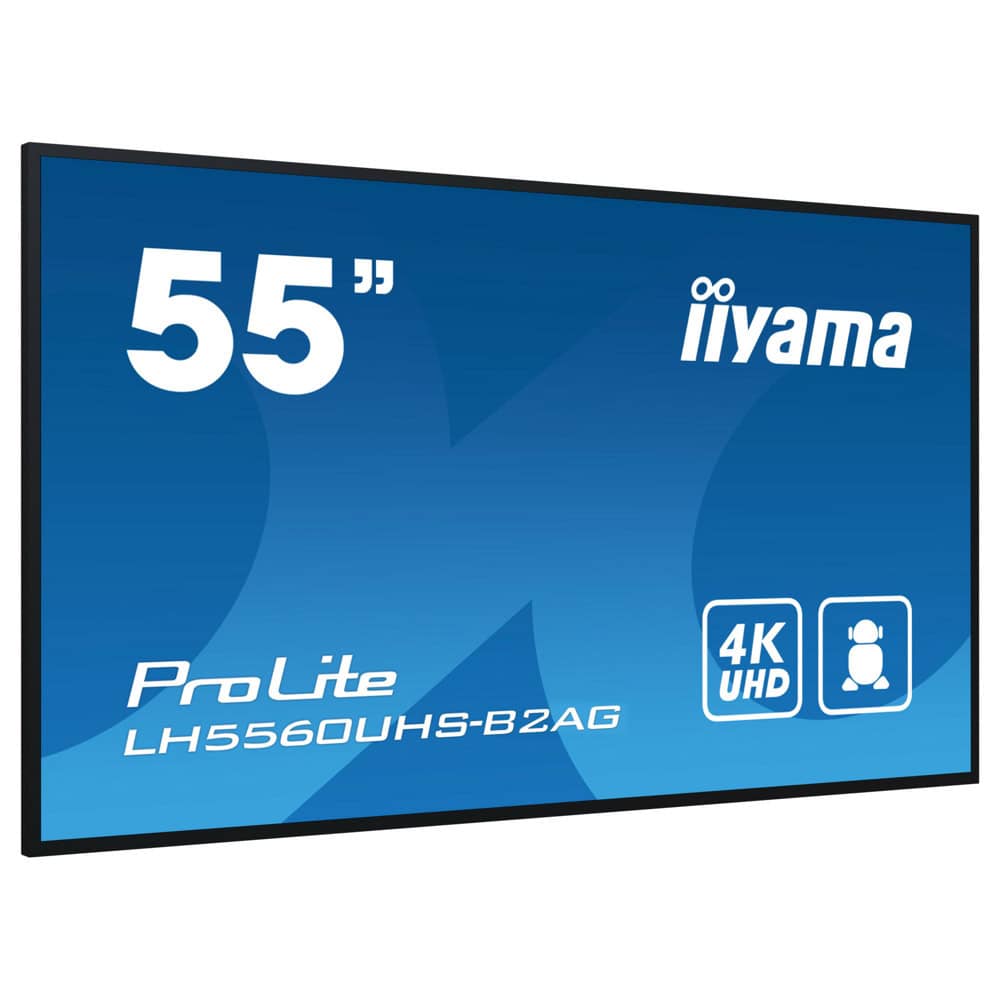

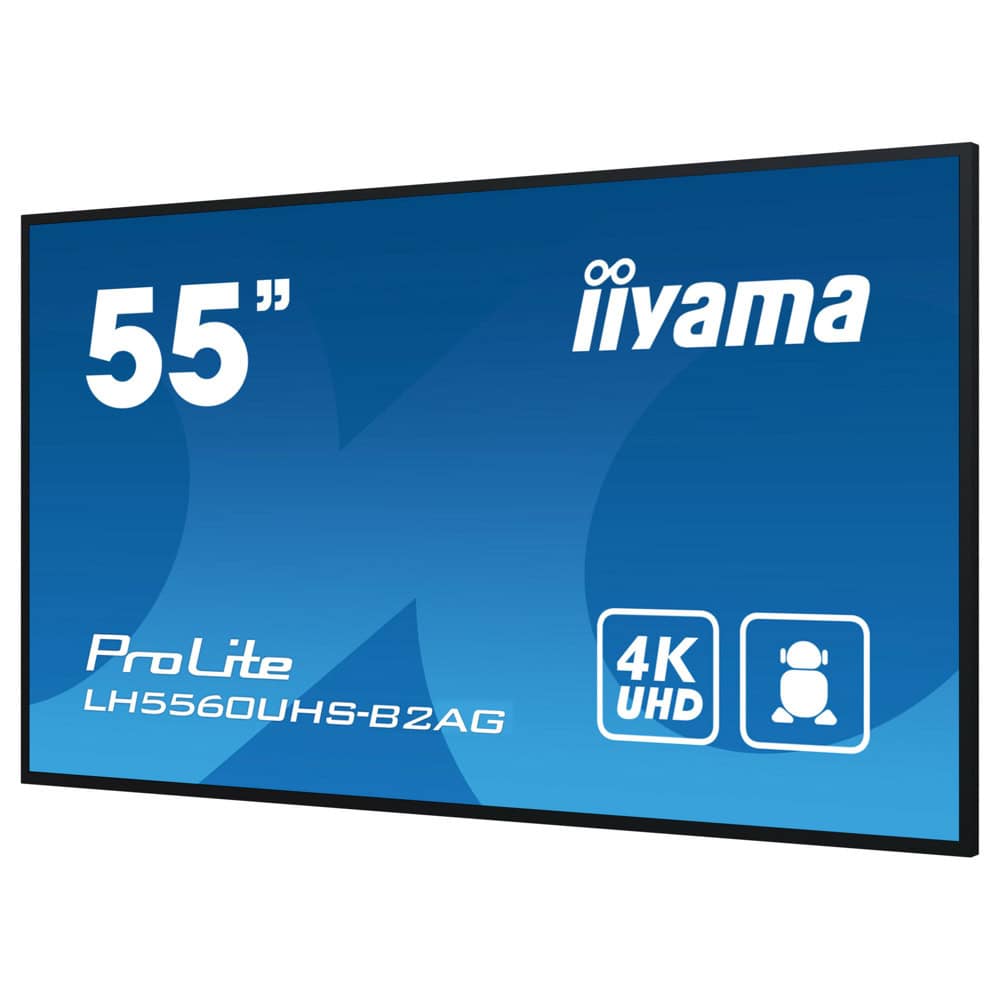

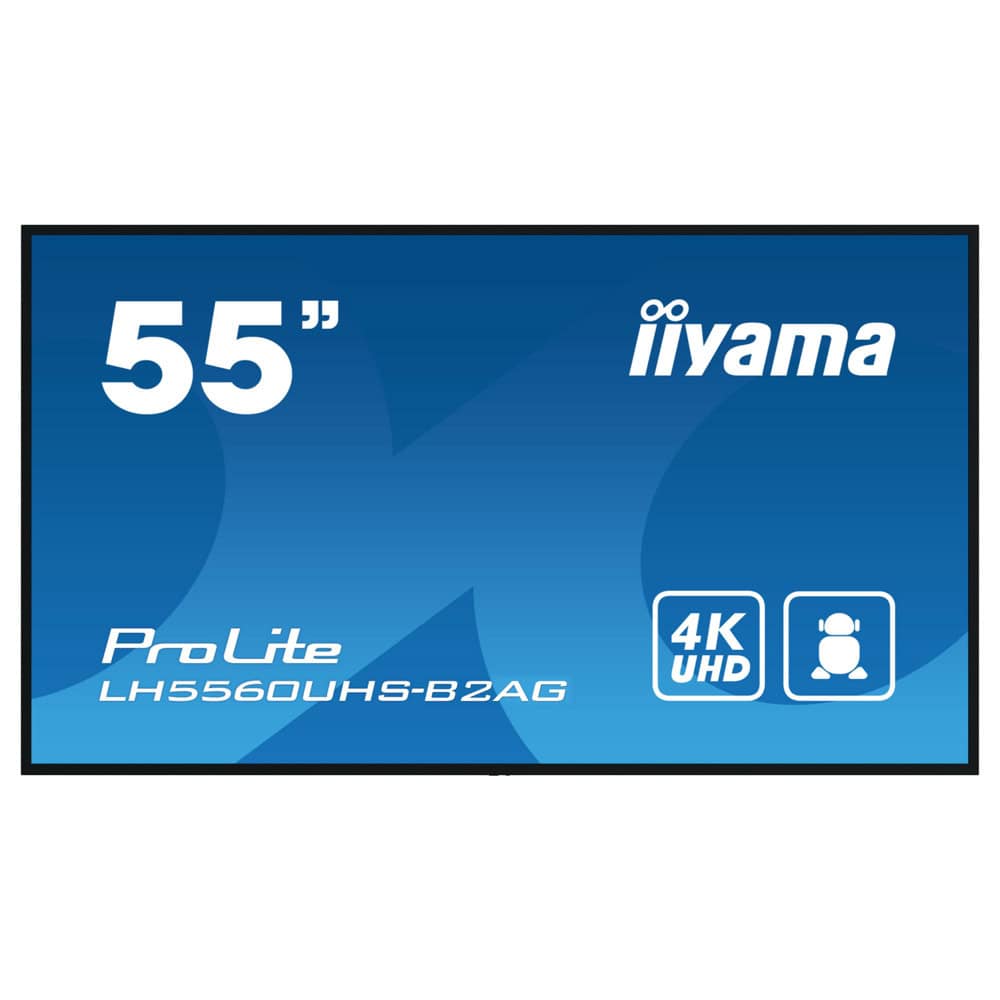

ProLite LH5560UHS-B2AG

55" 4K UHD professional digital signage display with advanced control and connectivity options

Elevate your visual communication with the LH5560UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver, and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze.

This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH5560UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.

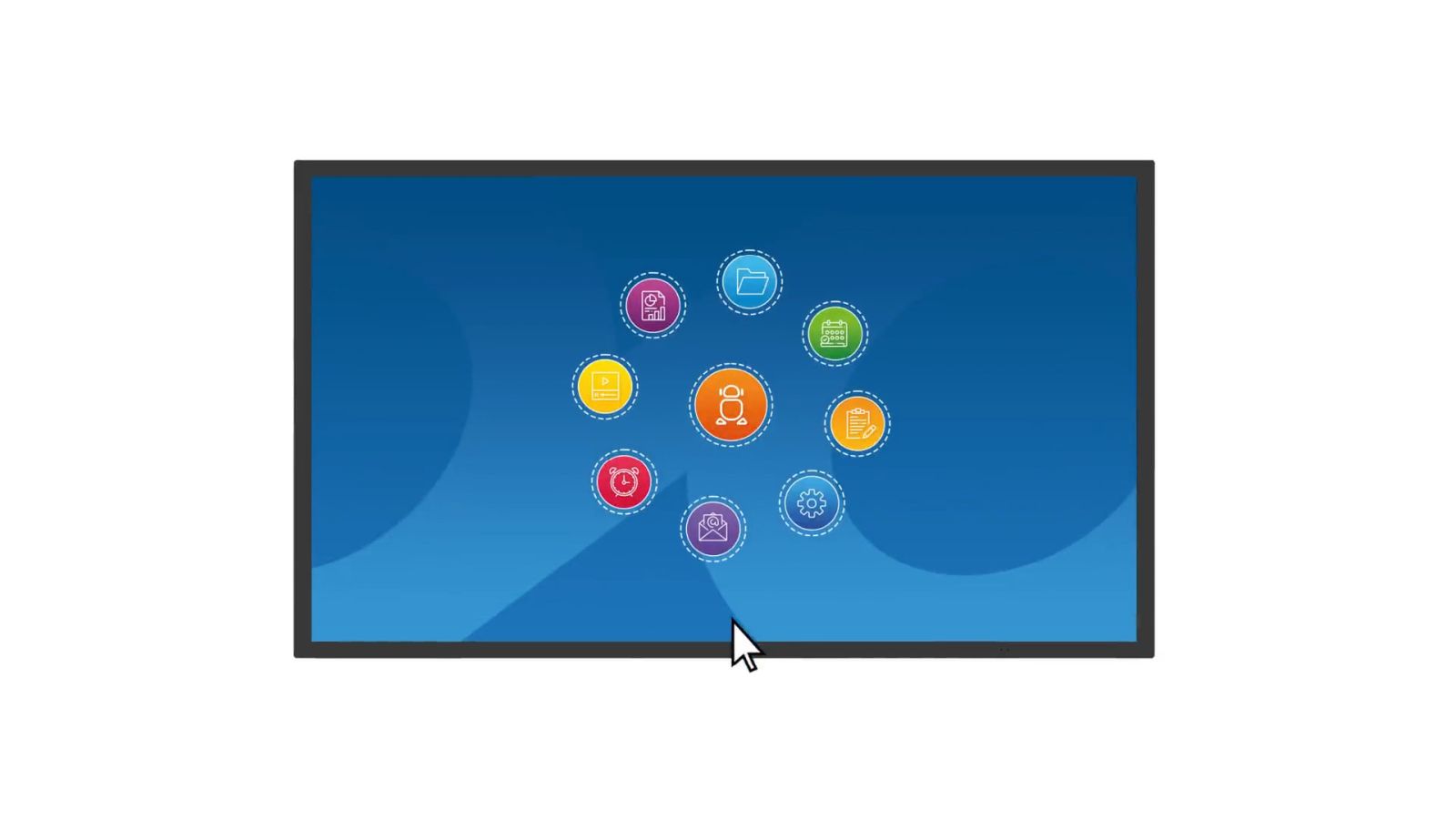

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²

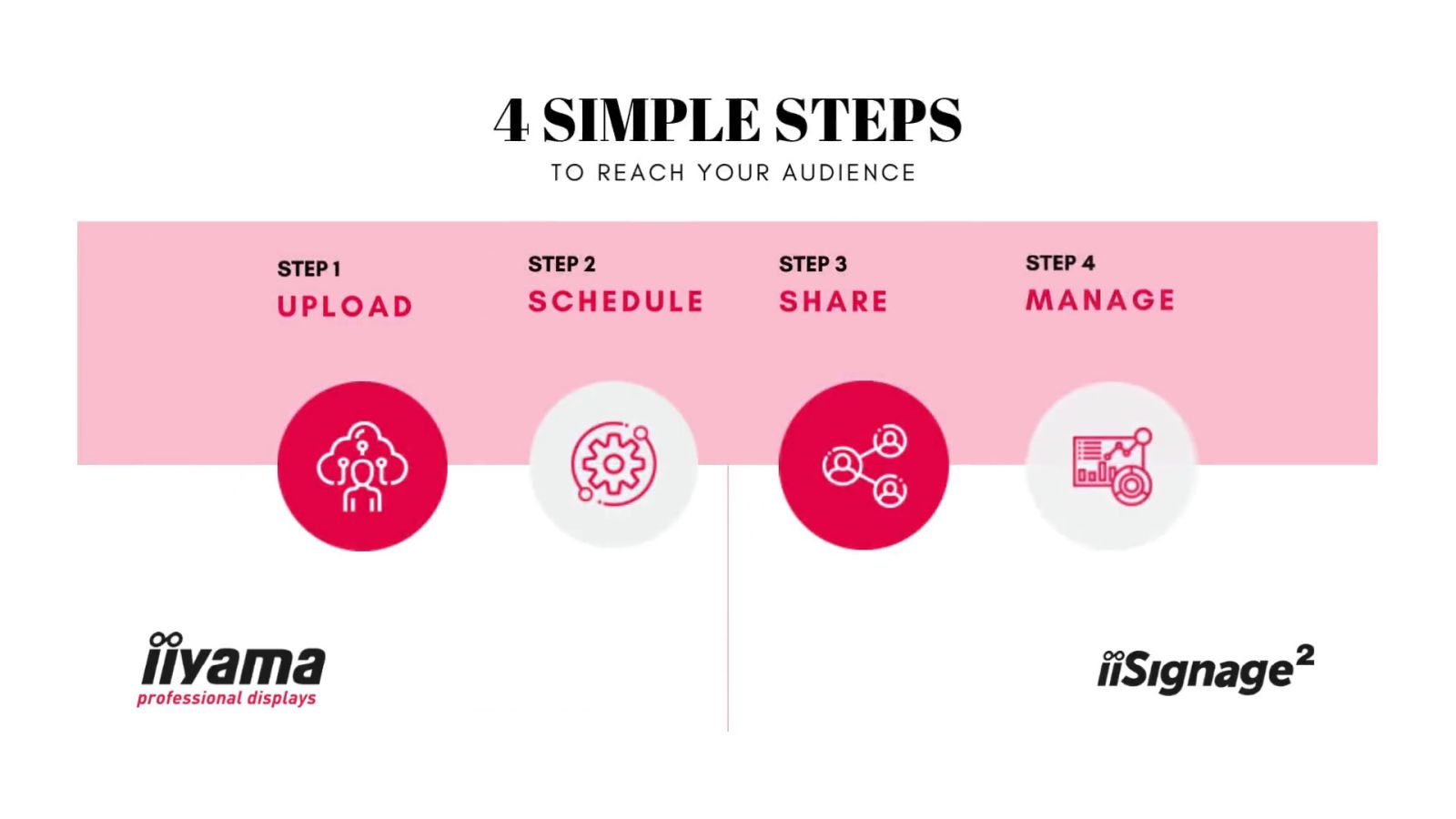

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Category	Specification	Details
Design / Display	Design	Thin bezel
	Diagonal	54.6" (139 cm)
	Panel Type	VA, Anti-Glare Coated Glass, Hard Coating (3H), haze 25%
	Native Resolution	3840 × 2160 @ 60Hz (8.3 Megapixels, 4K UHD)
	Aspect Ratio	16:9
	Brightness	500 cd/m²
	Static Contrast	4000:1
	Response Time (GTG)	6.5 ms
	Viewing Angles	178° (H/V), 89° (R/L, U/D)
	Colour Support	1.07B (8-bit + FRC), NTSC 87%
	Horizontal Sync	28 – 160 kHz
	Viewable Area (W × H)	1209.6 × 680.4 mm (47.6 × 28.8")
	Bezel Width (L/R, Top, Bottom)	13.3 mm / 13.3 mm / 15.3 mm
	Pixel Pitch	0.315 mm
	Bezel Finish	Black, matte

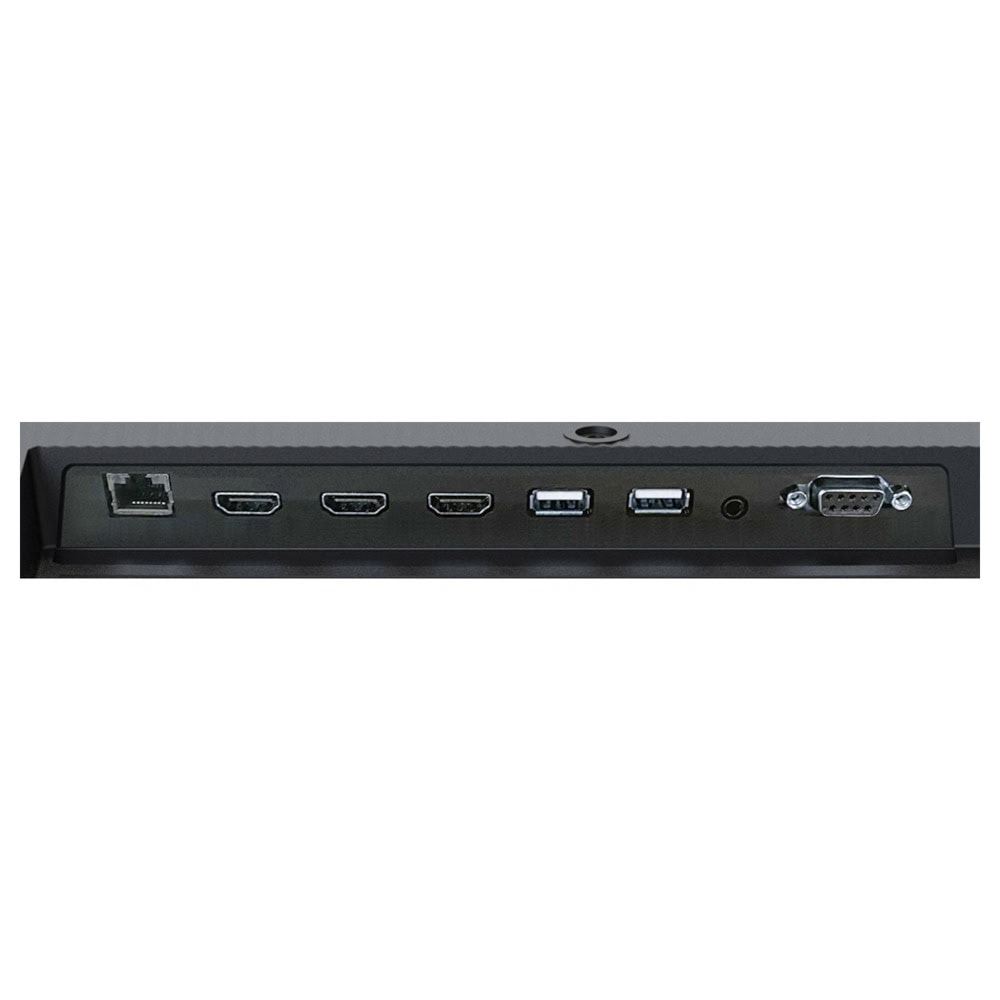

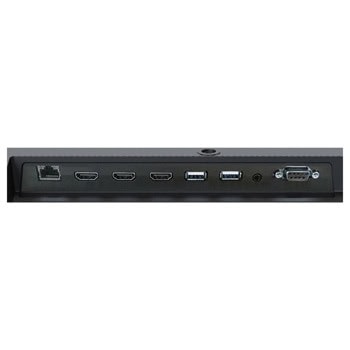

Interfaces / Connectivity	Digital Inputs	3 × HDMI 2.0 (max. 3840×2160 @60Hz)
	Control Interfaces	RS-232c ×1, RJ45 (LAN) ×1
	Audio Output	3.5 mm mini jack ×1
	Built-in Speakers	2 × 10 W
	HDCP Support	HDCP 1.4 & 2.2
	USB Ports	2 × USB 2.0
Features	Operating System	Android 11
	Integrated Software	FailOver, iiSignage², EShare
	Wi-Fi	Built-in Wi-Fi (802.11ac)
	Hardware Platform	CPU: Quad-core A53, GPU: G52 MP2
	Memory	RAM: 2 GB, ROM: 16 GB
	Operating Time	24/7
	Anti Image Retention	Yes
	Media Playback	Yes
	Housing (Bezel)	Metal (front)

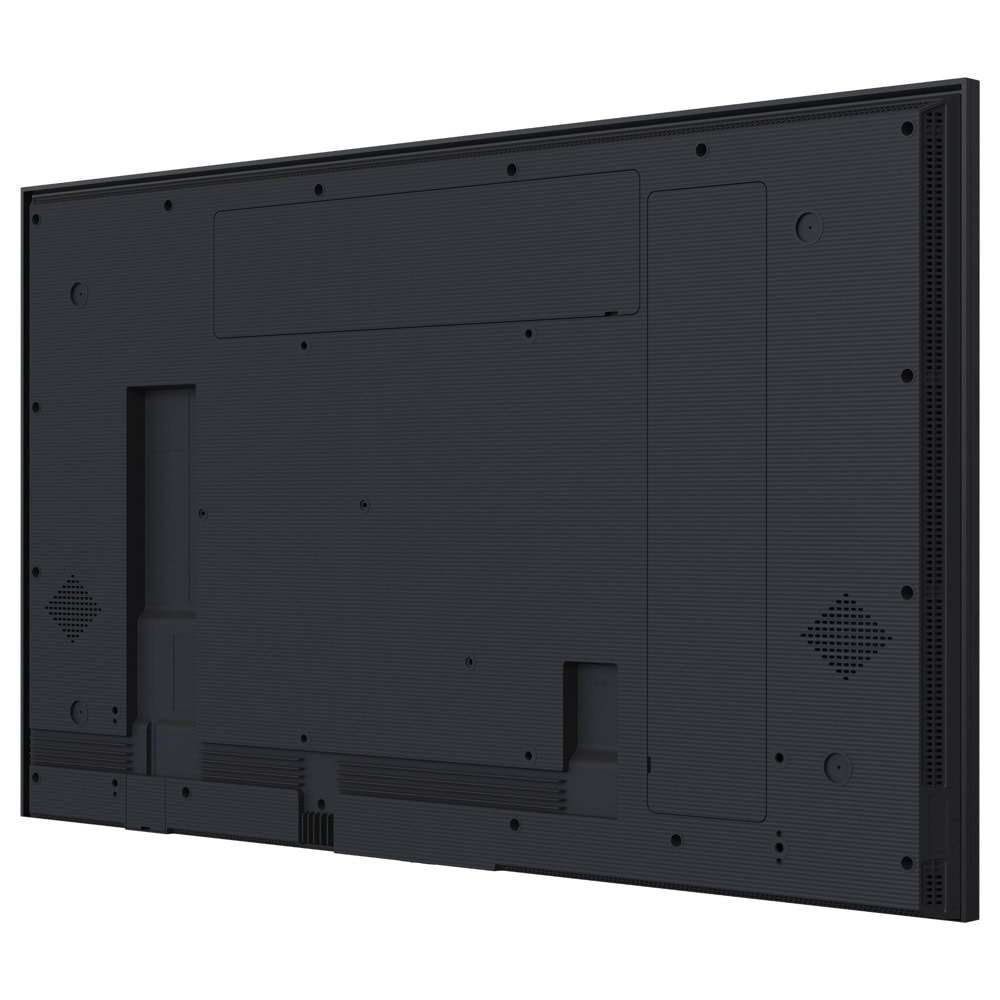

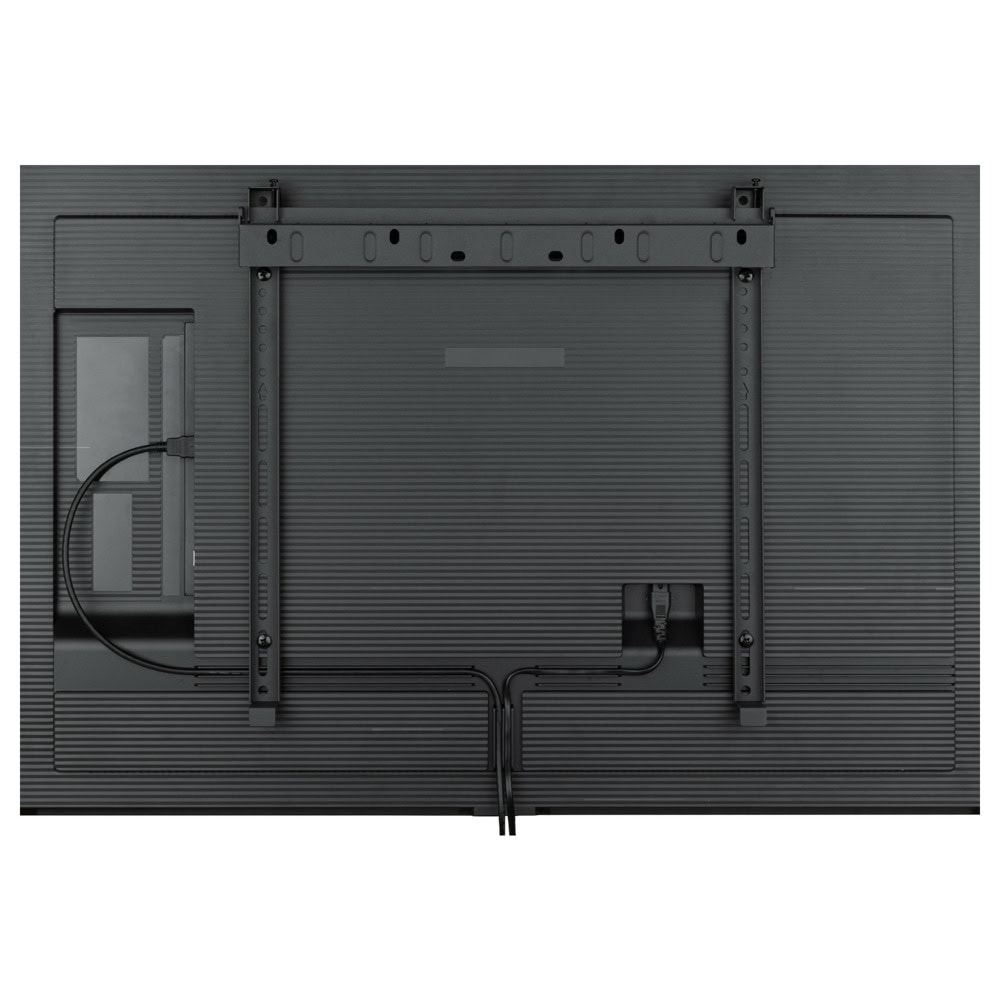

	Included Mount	Wall mounting kit (VESA 300 × 400 mm)
General	OSD Languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
	Control Buttons	Power button, Power indicator, Remote sensor
	User Controls	Extensive picture, screen, audio, configuration, advanced and Android settings
	Plug & Play	DDC2B

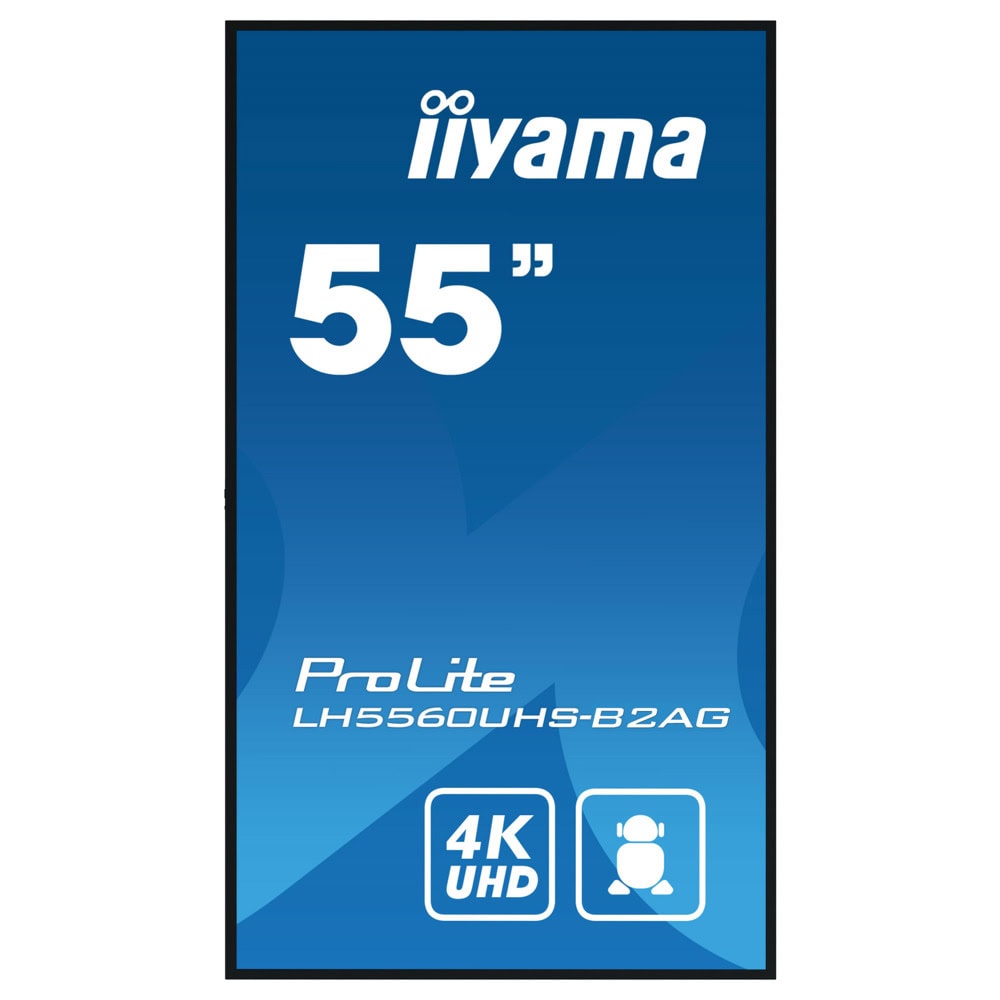

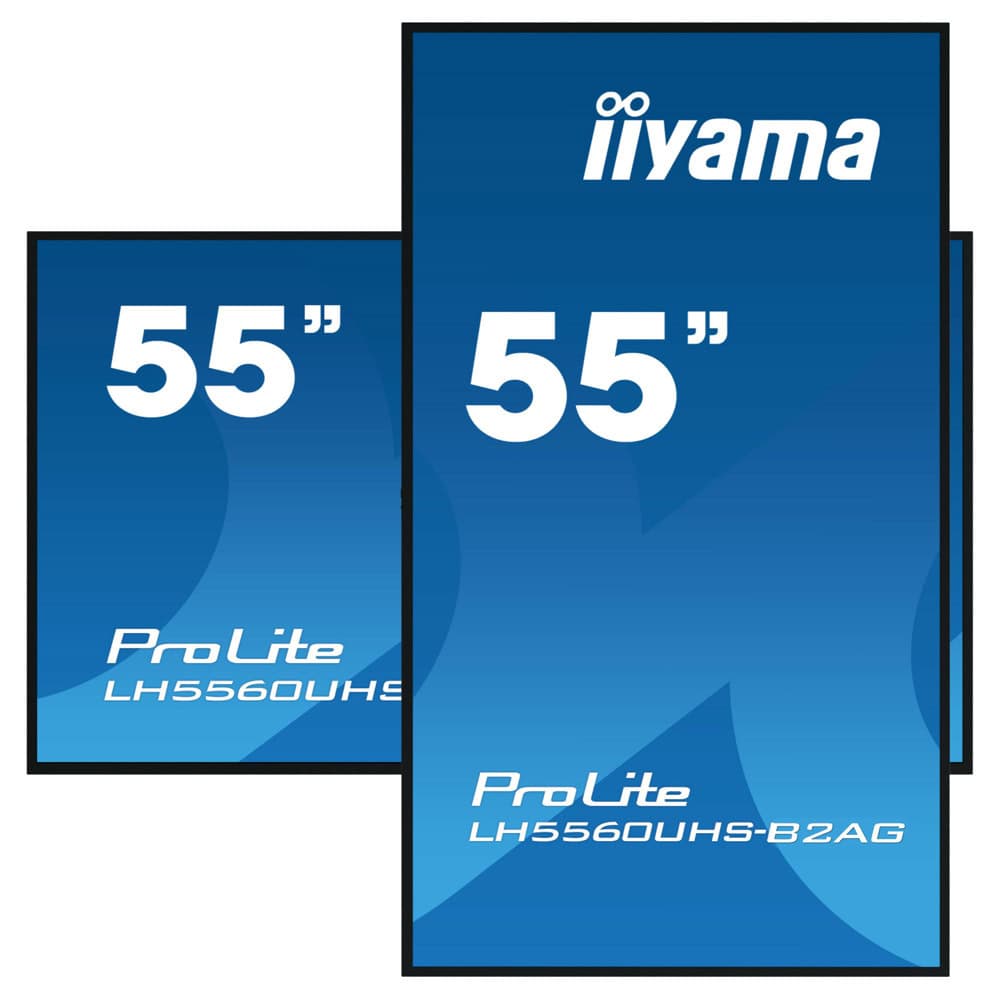

Mechanical	Orientation	Landscape / Portrait
	Fanless Design	Yes

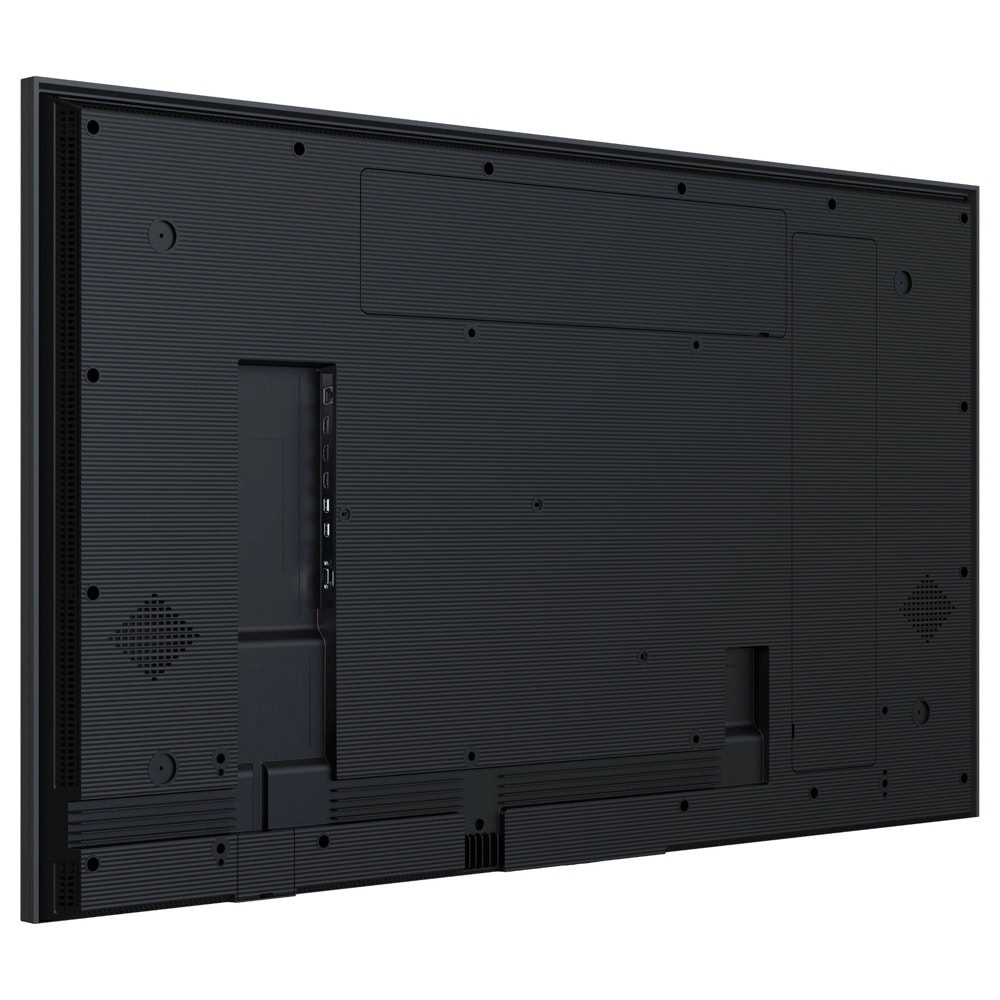

	VESA Mount	300 × 400 mm
	Operating Temperature	0°C – 40°C
	Storage Temperature	−20°C – 60°C
	MTBF	50,000 hours (excluding backlight)
Accessories Included	Cables	Power (1.8 m), HDMI (1.8 m), RS-232c (1.8 m)
	Documentation	Quick start guide, Safety guide
	Mounting Accessories	Wall mount bracket, guide, screws, anchors, stickers
	Remote Control	Yes (batteries included)
Power Management	Power Supply Unit	Internal
	Power Input	AC 100 – 240 V, 50/60 Hz
	Power Consumption	55 W typical, 0.5 W standby, 0.3 W off
Sustainability	Certifications	CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
	Energy Efficiency Class	E (EU Regulation 2017/1369)

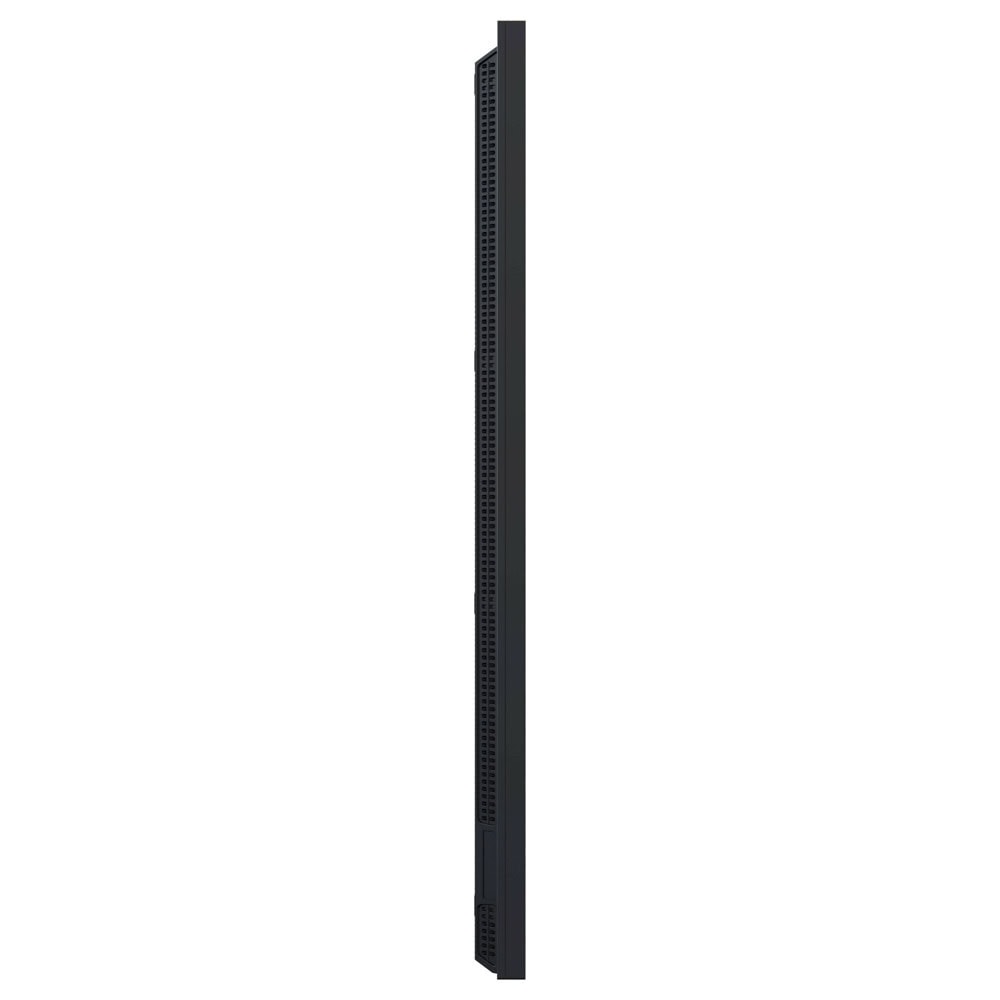

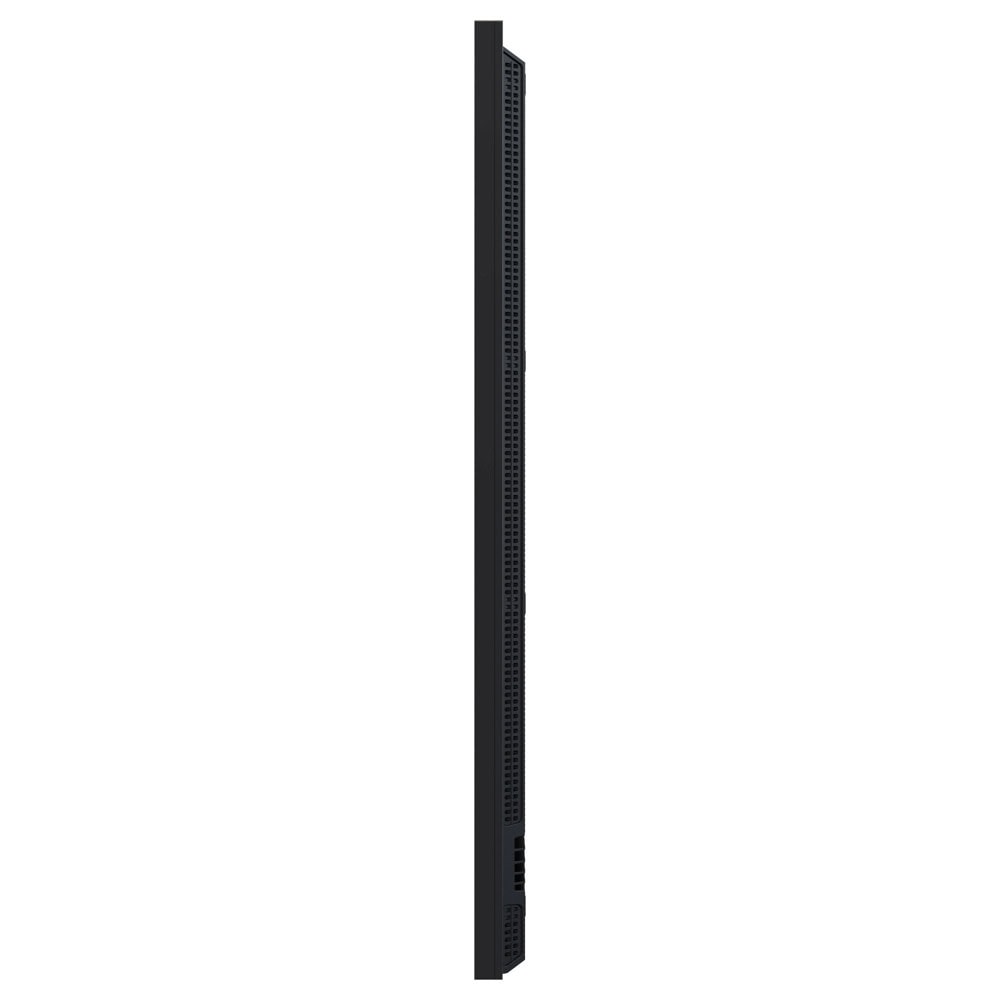

Dimensions / Weight	Product Dimensions (W × H × D)	1239.7 × 712.5 × 38.6 mm
	Packaging Dimensions	1390 × 850 × 136 mm
	Net Weight	17.6 kg
	Gross Weight	22.9 kg
