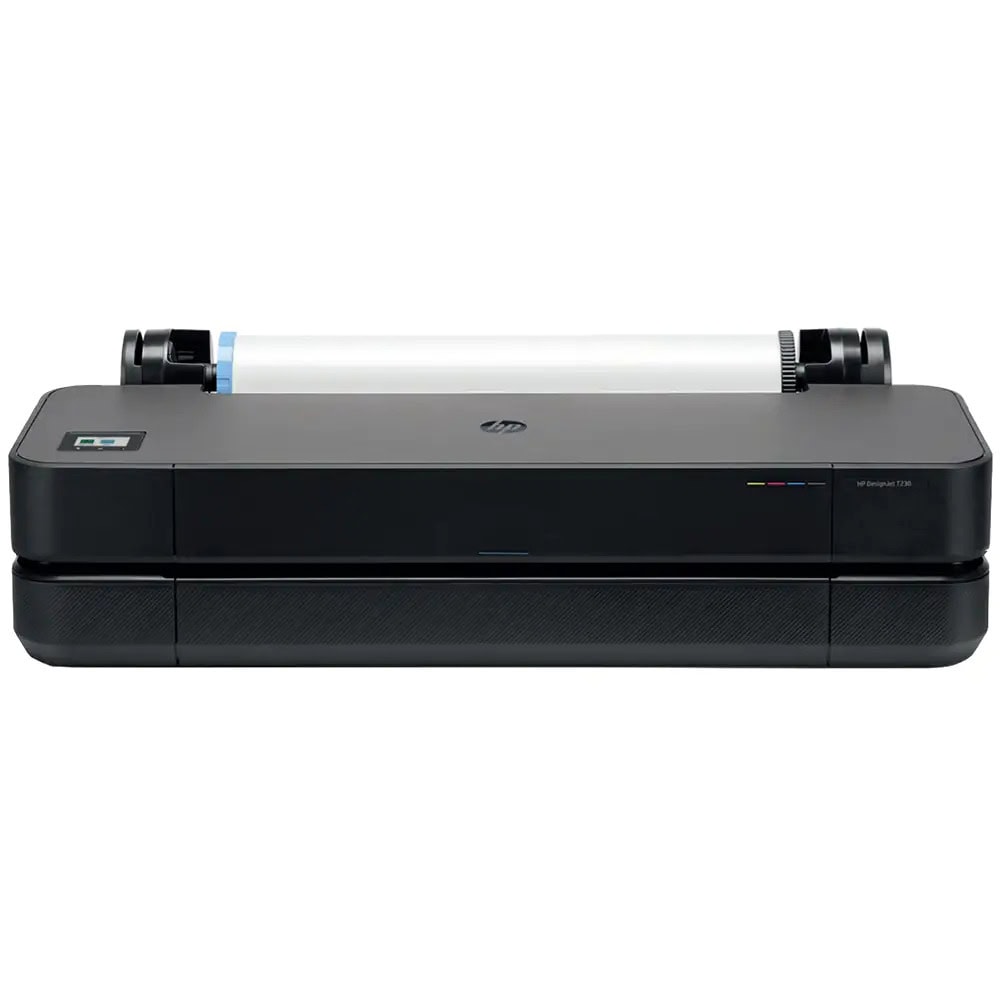

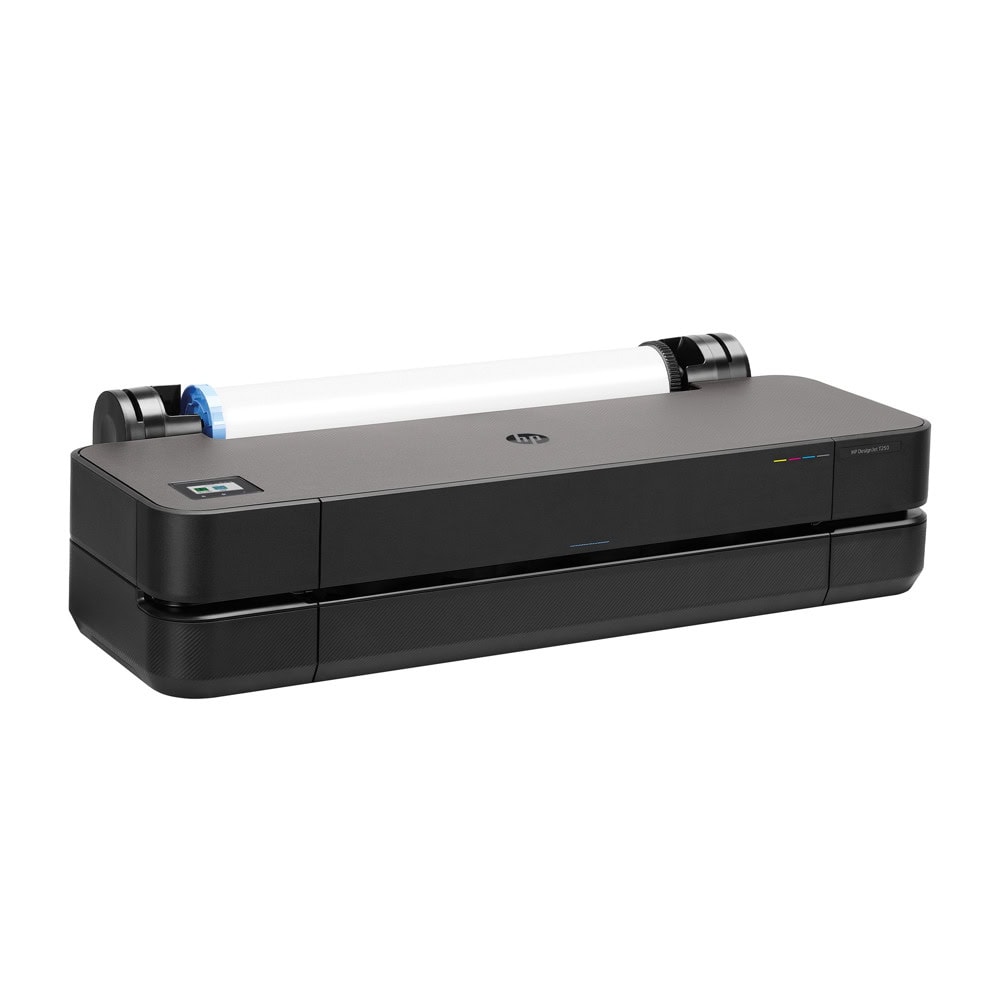

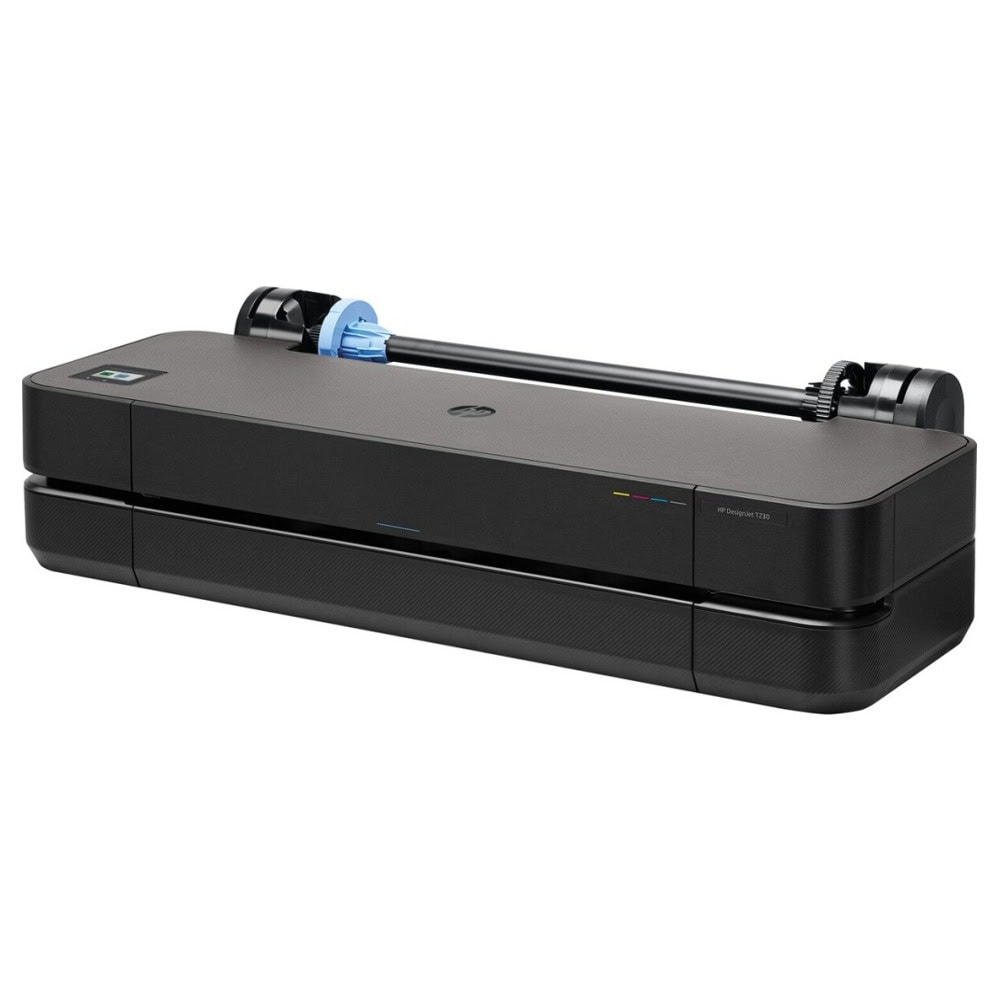

HP DesignJet T230 24" / A1 large format plotter printer 2025 edition (5HB07D)

HP DesignJet Printers

The HP DesignJet T200 Series offers high-quality solutions for large-format printing.

Compact size, these printers are made to fit your space.

Responsbibly designed, containing recycled metal.

The world's smallest plotters with high-quality results.

Achieve high-resolution results in a fraction of the space.

Responsibly designed printer

Choose an HP large format printer with a sustainable design, helping to reduce waste – made with 40% recycled plastic and and 65% energy saving

Category	Specification
Model	HP DesignJet T230 24-in Printer (PDF)
Memory	512 MB
Connectivity	Ethernet (1000Base-T), USB 2.0, Wi-Fi (802.11a/b/g/n), Wi-Fi Direct
Security Features	HP Wolf Security, Secure boot, FW validation, HTTPS, SNMPv1/2 RO, SNMPv3 off, write-protection, USB disable, TLS 1.2, 802.1x, IP v4/v6, CA/JD
Weight	Printer: 21.5 kg; Package: 27 kg
Dimensions (W×D×H)	Printer: 1013×440×285 mm; Package: 1155×575×405 mm
Power Input	100–240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power Consumption	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Software Included	HP Click App (Windows/macOS), HP Driver (Windows 11), HP App (Windows/macOS/Android/iOS)
Cartridges (Qty/Color)	4 (Cyan, Magenta, Yellow, Black)
Ink Type	Dye-based (C/M/Y), Pigment-based (K)
Ink Drop Size	5.5 pl (C/M/Y), 12 pl (K)
Cartridge Volume	29 ml (C/M/Y), 38 ml and 80 ml (K)
Print Head Nozzles	1376
Print Heads	1 (C/M/Y/K)
High-Yield Estimate	20 ml → 101 A1 pages
Functions	Print
Print Quality (Color Best)	Up to 2400×1200 optimized dpi
Internal Storage	None
Print Speed	35 sec/page (A1), 68 A1 prints/hour
Technology	HP Thermal Inkjet
Print Languages	JPEG, URF
Drivers Included	Raster (macOS/Windows), HP Click (Windows 11)
Model Size	610 mm
Remote Print	Enabled
Non-printable Area (Sheets)	5×5×5×17 mm (manual), 5×5×5×5 mm (tray)
Non-printable Area (Rolls)	5×5×5×5 mm
Print Paths	HP Click, Drivers, AirPrint, Android Print, ChromeOS, Email
Line Accuracy	±0.1%
Min. Line Width (Theoretical)	0.02 mm
One-click Multi-size Print	Yes
Optical Density (Black)	8 L* min / 2.10 D
Supported Sizes	A4, A3, A2, A1
Custom Size Range	210×279 to 610×1897 mm
Media Types	Bond, coated, film, photo, self-adhesive
Recommended Media	Q1396A, C6019B, C6029C (610 mm rolls, recyclable, FSC® certified)
Media Weight Range	60–280 g/m²
Max Media Width	610 mm
Primary Applications	Line drawings, presentations, renderings
Roll Size Range	279–610 mm
Output Handling	Sheet feed, roll feed, auto horizontal cutter
Roll External Diameter	100 mm
Max Roll Input	1 roll
Max Roll Weight	4.1 kg
Media Thickness	Up to 0.3 mm (11.8 mil)
