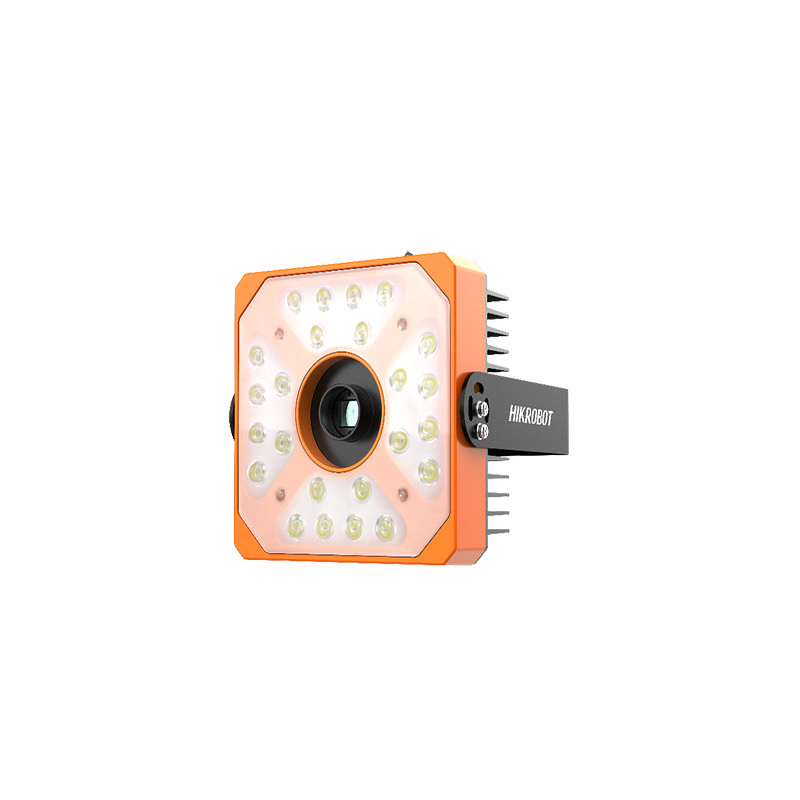

Name: HIKROBOT MV-IDS012M-16C-C :: Logistics Code Reader, 12MPix (3968×3000), 20 fps, 16мм, 60 codes/sec, Gigabit Ethernet, бяла светлина
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вграден алгоритъм, който позволява четене на различни видове едномерни и двумерни кодове с добра надеждност
Интегрира функции за заснемане на изображения, обработка на данни и извеждане на резултати
Интегриран структурен дизайн за удобен монтаж
Централизирано осветление с висока ефективност на луминесценция
Дълъг живот, стабилна работа и висока устойчивост на тежки работни условия

Model	Product Model	MV-IDS012M-16C-C
Model	Type	12MP Logisitc Code Reader
Performance	Symbologies	1-dimensional codes: Code 128, Code 39, Code 93, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, and UPCE2-dimensional codes: QR Code, Data Matrix
	Max. frame rate	20 fps
	Max. reading speed	60 codes/sec
	Focal length	16 mm (0.6")
	Best working distance	1870 mm (73.6")
	Field of view (range)	870 mm × 635 mm @10 mil
	Depth of field	700 mm (27.6")
	Resolution	3968 × 3000
	Exposure time	48 μs to 0.5 sec
	Gain	0 dB to 40 dB
	Aperture	F2.4 to F16
	Center illuminance	11000 lux @1000 mm
	Uniformity	0.56
	Luminous flux	5200 lm
	Light source wavelength	420 nm to 730 nm
	Color temperature	6500 K
	Mono/color	Mono
	Pixel format	Mono 8
Electrical feature	Data interface	Gigabit Ethernet
	Digital I/O	6-pin green terminal provides power and I/O, including opto-isolated input × 1 (LineIn 0), opto-isolated output × 1 (LineOut 3), and configurable non-isolated input/output × 1 (Line In 2/LineOut 4).3-pin green terminal provides RS-232 serial port.
	Power supply	24 VDC
	Max. power consumption	53 W @24 VDC
Mechanical	Dimension (without lens)	164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3")
	Weight (without lens)	Approx. 990 g (2.2 lb.)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	IDMVS
	Operating system	32/64-bit Windows XP/7/10
	Certification	CE
