Начало » HIKROBOT MV-ID813M-05S-WBN-SR-U :: Fixed Code Reader, ID800 Series, 1.3MPix (1280×1024), 20 codes/sec, 60 fps, 5мм, USB 2.0, бяла светлина

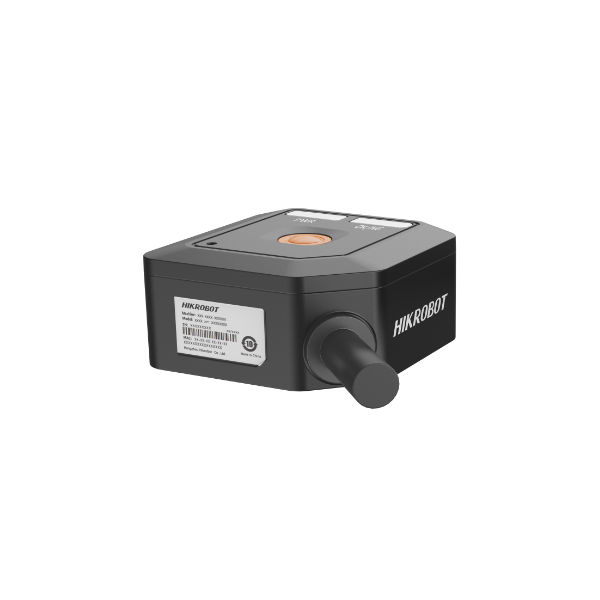

HIKROBOT MV-ID813M-05S-WBN-SR-U :: Fixed Code Reader, ID800 Series, 1.3MPix (1280×1024), 20 codes/sec, 60 fps, 5мм, USB 2.0, бяла светлина
Икона в кампания
empty image 1empty image 2empty image 3

HIKROBOT MV-ID813M-05S-WBN-SR-U :: Fixed Code Reader, ID800 Series, 1.3MPix (1280×1024), 20 codes/sec, 60 fps, 5мм, USB 2.0, бяла светлина

id s4787767
  • Марка: HIKROBOT
  • Наличност: Не е наличен
    Продукта вече не се предлага Абонирай се за бюлетина
    Описание
    ModelModelMV-ID813M-05S-WBN-SR-U
    Name of130W resolution, 5mm focal length, white light, SR, U port, static cable
    PerformanceBarcode CategoryCode 39, Code 93, Code 128 (including GS1-128), ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCEQR Code (including GS1-QR), Data Matrix (including GS1-DM), Micro QR, AZTEC, Han XinStacked code: PDF417
    Barcode minimum accuracyNumber of yards: 3 milQR code: 10 mil
    Maximum processing frame rate60 FPS
    Maximum read speed20 codes per second
    Like the size.2.7 μm x 2.7 μm
    Target size1/4"
    Resolution1280 × 1024
    depth of fieldCode39 (5 mil): 75 mm to 250 mmCode128 (3 mil): 80 mm to 150 mmCode128 (10 mil): 65 mm to 420 mmQR Code (10mil): 75 mm to 230 mmQR Code (20mil): 65 mm to 480 mm
    Exposure time60 us to 7000 us
    Gain1 dB to 15 dB
    Black and White/ColorBlack and White
    Communication protocolSmartSDK, USB, Serial
    Electrical characteristicsData interfaceUSB 2.0
    Number of I/O1 non-isolated input (pin 1 input), 1 non-isolated output (pin 3 output), 1 configurable input output (pin 2 input/output)Supports triggering devices via top button
    Power supply5 VDC
    Maximum power consumption2.5 W@5 VDC
    Structurefocal length4.9 mm
    Camera interfaceM10 - Mount
    Camera coverTransparent camera cover
    Ambient light0 to 100000 lux
    Light sourceWarm white LED
    TargetCross laser aiming
    Status tipsLED indicator, buzzer
    External dimensions38 mm × 38 mm × 19 mm
    WeightApproximately 40 g (without cable)
    IP protection levelIP54
    temperatureOperating temperature -20 ~ 50 °C, storage temperature -40 ~ 70 °C
    Humidity5% to 95%RH without condensation
    Laser performanceLaser Safety Level2 Types of laser products
    Wavelength650 nm
    Light beam divergence angle14.5° × 14.5°
    Repeat frequencyChangliang
    Maximum power3.8 MW
    General normsSoftwareIDMVS
    CertificationCE, RoHS, KC
