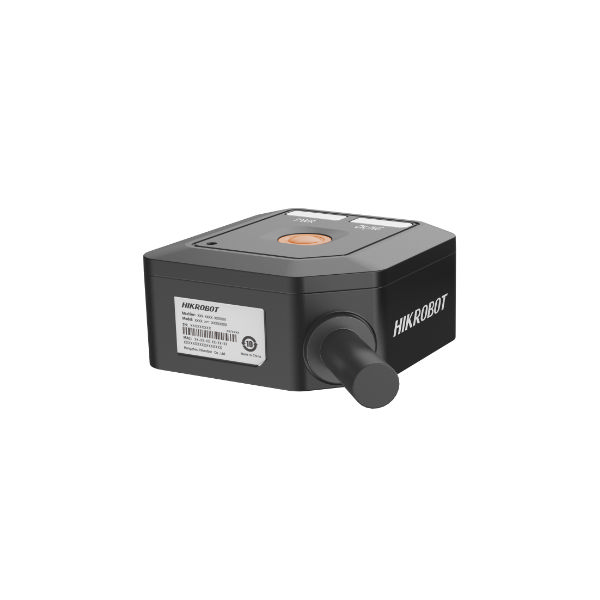

Name: HIKROBOT MV-ID813M-05S-WBN-NR-U :: Fixed Code Reader, ID800 Series, 1.3MPix (1280×1024), 20 codes/sec, 60 fps, 5мм, USB 2.0, бяла светлина
Brand: HIKROBOT
Availability: OutOfStock

Описание

Model	Model	MV-ID813M-05S-WBN-NR-U
Model	Name of	130W resolution, 5mm focal length, white light, NR, U port, static cable
Performance	Barcode Category	Code 39, Code 93, Code 128 (including GS1-128), ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCEQR Code (including GS1-QR), Data Matrix (including GS1-DM), Micro QR, AZTEC, Han XinStacked code: PDF417
	Barcode minimum accuracy	Number of yards: 2 mil2D code: 5 mil
	Maximum processing frame rate	60 FPS
	Maximum read speed	20 codes per second
	Like the size.	2.7 μm x 2.7 μm
	Target size	1/4"
	Resolution	1280 × 1024
	depth of field	Code39 (5 mil) 45 mm to 160 mmCode128 (3 mil): 50 mm to 130 mmCode128 (10 mil): 50 mm to 235 mmData Matrix (5 mil): 55 mm to 100 mmQR Code (10mil) 45 mm to 165 mmQR Code (20mil): 45 mm to 225 mm
	Exposure time	60 us to 7000 us
	Gain	1 dB to 15 dB
	Black and White/Color	Black and White
	Communication protocol	SmartSDK, USB, Serial
Electrical characteristics	Data interface	USB 2.0
	Number of I/O	1 non-isolated input (pin 1 input), 1 non-isolated output (pin 3 output), 1 configurable input output (pin 2 input/output)Supports triggering devices via top button
	Power supply	5 VDC
	Maximum power consumption	2.5 W@5 VDC
Structure	focal length	4.9 mm
	Camera interface	M10 - Mount
	Camera cover	Transparent camera cover
	Ambient light	0 to 100000 lux
	Light source	Warm white LED
	Target	Cross laser aiming
	Status tips	LED indicator, buzzer
	External dimensions	38 mm × 38 mm × 19 mm
	Weight	Approximately 40 g (without cable)
	IP protection level	IP54
	temperature	Operating temperature -20 ~ 50 °C, storage temperature -40 ~ 70 °C
	Humidity	5% to 95%RH without condensation
Laser performance	Laser Safety Level	2 Types of laser products
	Wavelength	650 nm
	Light beam divergence angle	14.5° × 14.5°
	Repeat frequency	Changliang
	Maximum power	3.8 MW
General norms	Software	IDMVS
General norms	Certification	CE, RoHS, KC
